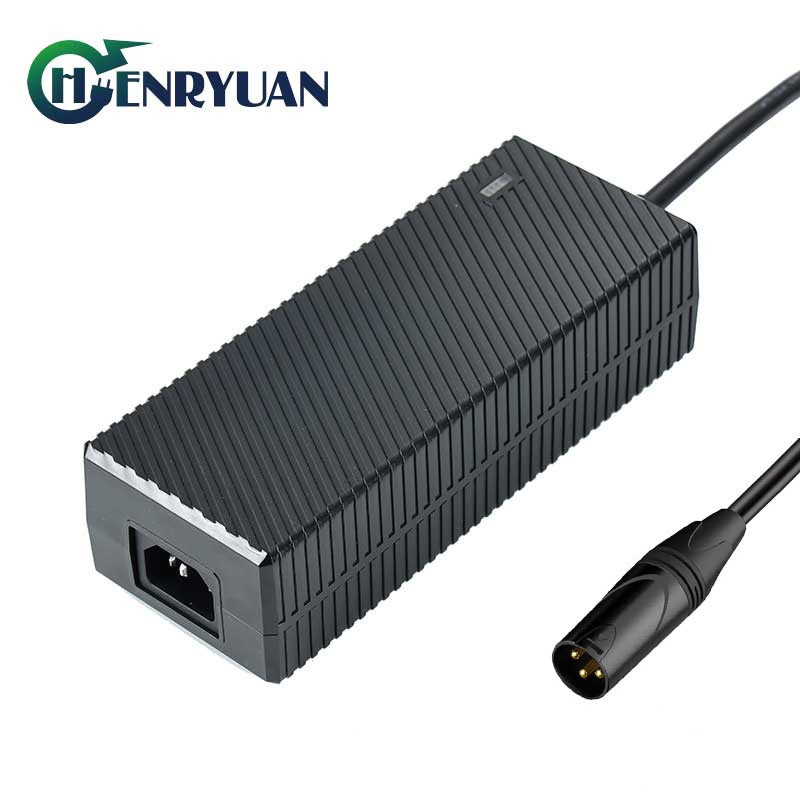

High-Power 48V Lithium Ion Battery Charger: Your Ultimate 54.6V Energy Solution
Designed for demanding applications, Henryuan 48V lithium ion battery charger combines cutting-edge technology with rugged durability that is a top-tier charging solution designed for 13S 48V lithium ion batteries, ranging from 10AH to 30AH. This 54.6V li-ion battery charger is engineered with advanced safety features and high quality components, ensuring reliable and efficient charging for various applications such as e-bikes, electric scooters, golf carts, solar energy storage or industrial equipments.
Key Features and Applications
1. Comprehensive Safety Certifications:
- Our 48 volt lithium ion battery chargers meet global safety standards with certifications from UL, ETL, cUL, FCC, CE, UKCA, SAA, PSE, TUV, and RoHS.
2. Input Specifications:
- Input Voltage: 90Vac-264Vac
- Rated Input Voltage: 100Vac-240Vac
- Frequency: 50/60Hz
- Input Current: 3A
- Inrush Current: 60A
3. Output Features:
- Models Available:
- 2A Charger: HRY5462000
- 3A Charger: HRY5463000
- 3.5A Charger: HRY5463500
- 4A Charger: HRY5464000
- 4.5A Charger: HRY5464500
- 5A Charger: HRY5465000
- LED Indicator: Dual-color LED light indicates charging status: red during charging and green when fully charged.
Example of Charging Stages for 48V 4A Model:
High-Speed Charging with Safety- Constant Current: 4A fast charging (Red LED)
- Constant Voltage: 54.6V, avoid overcharging (Red LED)
- Trickle Charging: 0.4A -> 0, low current charging to extend battery life (Green LED)
Output |
Charging Stage |
LED Indicator |
|
Current |
Voltage |
||
4A |
35V-54.6V |
Constant Current |
Red(Charging) |
4A->0.4A |
54.6V |
Constant Voltage |
Red(Charging) |
0.4A->0 |
54.6V |
Trickle Current |
Green(Fully charge battery) |
4. Charging Curve, Special Designed For 48V 4A Lithium Ion Battery Charger
Precision Charging for Longevity. Our li ion battery charger 48V employs advanced smart charging algorithms to maximize battery lifespan. It supports constant-current/constant-voltage (CC/CV) charging, automatically adjusting to prevent overcharging and deep discharging. This protects your li ion battery charger 48V investment by extending cycle life.

5. Applications:
- Perfect for charging electric scooters, e-bikes, and golf carts. These chargers are versatile and ideal for various high-capacity 48V lithium battery needs.
6. Advanced Protection Features:
- Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.
7. Quality Assurance:
- A skilled team of sales engineers with over a decade of experience
- Rigorous raw material selection and inspection process
- Experienced engineers with over 20 years in material solutions design
- Advanced production testing equipment and processes
- 100% full-load aging testing for up to 4 hours
- Comprehensive after-sales support system with a resolution timeframe of within 48 hours
About Henryuan Group
With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading supplier in the industry. Our high quality 48V lithium chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.
More 48 volt lithium ion battery chargers:
For a reliable and efficient 48V lithium ion battery charger, contact Henryuan's sales engineers today. We offer a range of models, including 48V 1A, 1.5A, 2A, 3A, 4A, and 5A chargers to meet your specific needs.
