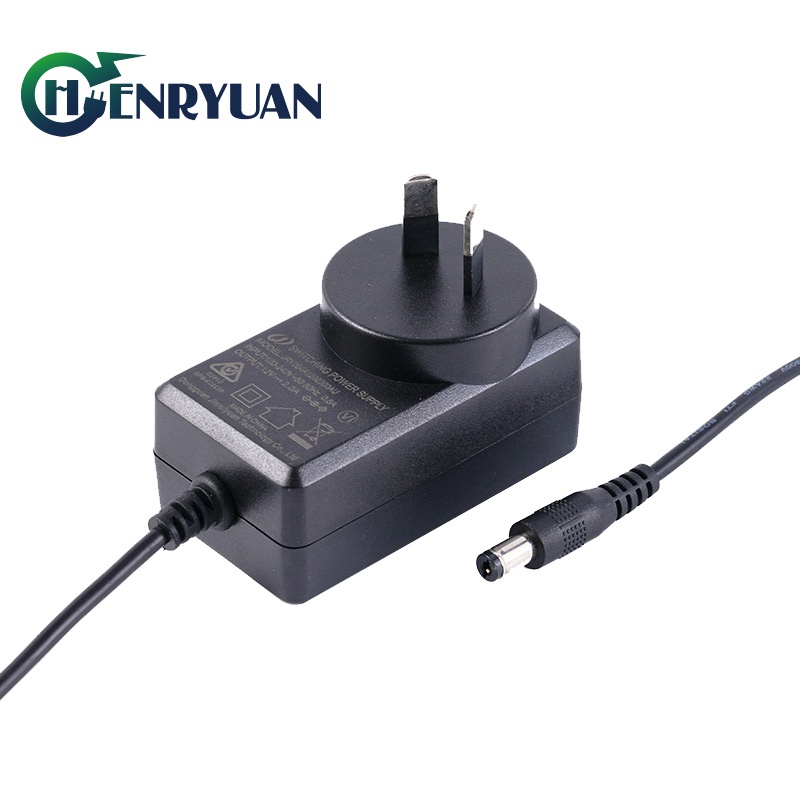

Certificated Power Mains 12V 0.5A 500mA Switching power supply AC DC Adapter
- Product No.：HRY1200500AU
Compact & Reliable Power Mains 12V Switching Power Supply | 12V 500mA AC DC Adapter
Product Overview:
Henryuan Australia Plug 6W 12V 500mA adapter is a high quality switching power supply certified by SAA, this 12V 0.5A power supply is engineered to deliver consistent performance with low energy cost, boasting DOE level VI efficiency. Designed with advanced power schemes, it offers multiple protection mechanisms and reliable performance. It's ideal for powering Audio devices, LED lights, cameras, IoT devices and various electronic devices, stable votage and current output.
Global Versions For Differenct Countries:
- US Plug: Model HRY1200500US
- UK Plug: Model HRY1200500UK
- EU Plug: Model HRY1200500EU
- JP Plug: Model HRY1200500JP
- AU Plug: Model HRY1200500AU
- All models output 12V 500mA, 6W.
Certifications:
- UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC
- Compliance with IEC standards: 60950, 62368, 61558, 60335
- DOE Level VI efficiency
Input Specifications:
- Designed for global compatibility, AC voltage input : 90-264Vac (rated 100-240Vac)
- Frequency: 50/60Hz
- Current: 0.6A
- Inrush Current: 35A
Output Specifications:
- Model: HRY1200500AU
- Steady Voltage: 12V DC (Range: 11.4V - 12.6V, ±5%)
- Current: 0.5A
- Power: 6W
- Efficiency ≥83%, DOE Level VI, Low ripple noise
- Long-Lasting Durability: 3-year warranty
|
RATED OUTPUT |
SPEC. LIMIT |
REMARK |
|
|
Value(Min) |
Value(Max) |
|
|
|
Output Voltage |
11.4V |
12.6V |
12V±5% |
|
Output Current |
0.0A |
500mA |
|
Protection Features:
- Overcurrent, overvoltage, short circuit, and hiccup protection
Quality Assurance:
- Experienced sales, engineers and rigorous supplier selection
- Strict material inspection and advanced production testing
- 100% aging test for up to 4 hours at full load
- Efficient after-sales support with a 48-hour resolution system
Company Profile:
- With over 13 years of expertise, Henryuan Group leads in switching power supply production and R&D. Our 12V 500mA adapters are renowned for performance and safety, serving markets across the Americas, Europe, Australia, Asia, and more. These adapters feature excellent EMI performance and low ripple, suitable for diverse applications. Henryuan's engineers are adept at meeting both standard and custom requirements.
Henryuan 12V Power Mains Range:
Various 12V switching power supplies with currents 0.3A, 0.5A, 0.6A, 1A, 1.2A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20, 25A.
More Switching Power Supply Links:
Contact Us:
For a safe, reliable, and efficient 12V 500mA adapter, contact Henryuan's expert sales engineers today.
Common 12V AC DC Power Unit Models for Projects
|
Henryuan 12V AC DC Switching Power Supply(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS) |
Model |
Input |
Output(Voltage/Current) |
Output(Power) |
|
HRY1200300 |
100-240V ac, 50/60Hz |
12V 0.3A |
3.6W |
|
|
HRY1200400 |
12V 0.4A |
4.8W |
||
|
HRY1200500 |
12V 0.5A |
6.0W |
||
|
HRY1200600 |
12V 0.6A |
7.2W |
||
|
HRY1200700 |
12V 0.7A |
8.4W |
||
|
HRY1200800 |
12V 0.8A |
9.6W |
||
|
HRY1200900 |
12V 0.9A |
10.8W |
||
|
HRY1201000 |
12V 1.0A |
12.0W |
||
|
HRY1201200 |
12V 1.2A |
14.4W |
||
|
HRY1201500 |
12V 1.5A |
18W |
||
|
HRY1201800 |
12V 1.8A |
21.6W |
||
|
HRY1202000 |
12V 2.0A |
24.0W |
||
|
HRY1202500 |
12V 2.5A |
30W |
||
|
HRY1203000 |
12V 3.0A |
36.0W |
||
|
HRY1204000 |
12V 4.0A |
48.0W |
||
|
HRY1205000 |
12V 5.0A |
60.0W |
||
|
HRY1206000 |
12V 6.0A |
72.0W |
||
|
HRY1206500 |
12V 6.5A |
78.0W |
||
|
HRY1207000 |
12V 7.0A |
84.0W |
||
|
HRY1208000 |
12V 8.0A |
96.0W |
||
|
HRY12010000 |
12V 10.0A |
120.0W |
||
|
HRY12012000 |
|
12V 12.0A |
144.0W |
|
|
HRY12015000 |
|
12V 15.0A |
180.0W |
|
|
HRY12020000 |
|
12V 20.0A |
240.0W |
|
|
HRY12025000 |
|
12V 25.0A |
300.0W |
Keywords Related:
- DC 12V 500mA
- 12V 500mA Adapter
- 12V 500mA DC Adapter
- 12V 500mA Power Supply
- 12V 500mA Switching Adapter
- 12V 0.5A Adapter
- 12V Power Mains
Q&A:
Q1: Can I use a 12V 1A or 2A adapter instead of a 12V 0.5A one?
A: Yes. Voltage (12V) must match exactly, but amperage is drawn on-demand. A device requiring 0.5A will only pull 0.5A from a larger supply, leaving safe electrical headroom. Never do the reverse (using a 0.5A adapter on a 1A device), as it will trigger an immediate overload shut-down. Also, pay attention to polarity.
Q2: Will this adapter cause static noise or hum in my wireless/audio hardware?
A: No. Low-power switching adapters often skimp on filters, leaking high-frequency noise that degrades Wi-Fi/Bluetooth signals or causes audio buzz. Henryuan integrates studio-grade EMI filtering to keep output voltage ripple under 50mV, ensuring clean DC power and signal integrity.
Q3: Is this adapter safe for tight, unventilated installations?
A: Yes. Thanks to a high conversion efficiency (>82%), the unit generates minimal heat. It features a fanless, convection-cooled casing molded from UL 94V-0 flame-retardant PC/ABS and is fully protected against short-circuits (SCP), over-voltage (OVP), and over-current (OCP).
Q4: Can I customize the DC plug dimensions and cable polarity?
A: Yes. While the industry default is a Center-Positive 5.5mm* 2.1mm plug, we handle custom wire assemblies in-house. We can manufacture your production run with Center-Negative pinouts, Right-Angle tips, micro-connectors, or stripped-and-tinned bare wires.
Q5: What global safety certifications are stamped on the housing?
A: To ensure seamless customs clearance and eliminate liability risks, our power supplies carry direct, verified safety marks for all major markets:
Americas: UL, cUL, ETL, FCC
Europe & UK: CE, TÜV-GS, UKCA, RoHS, REACH
Oceania: SAA, RCM
Asia & Universal: PSE, KC, CCC, and the global CB Scheme.
