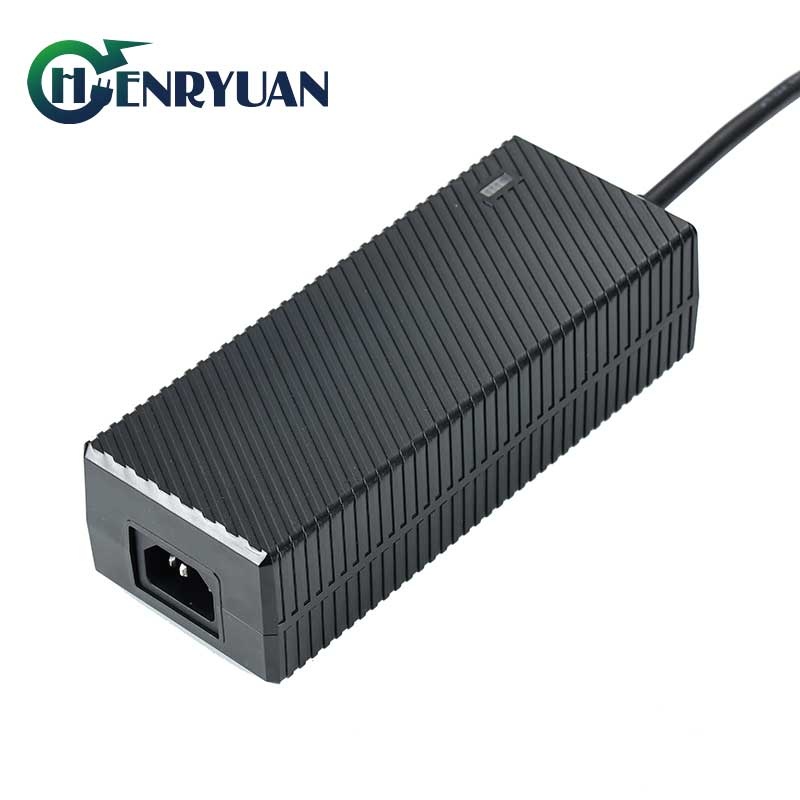

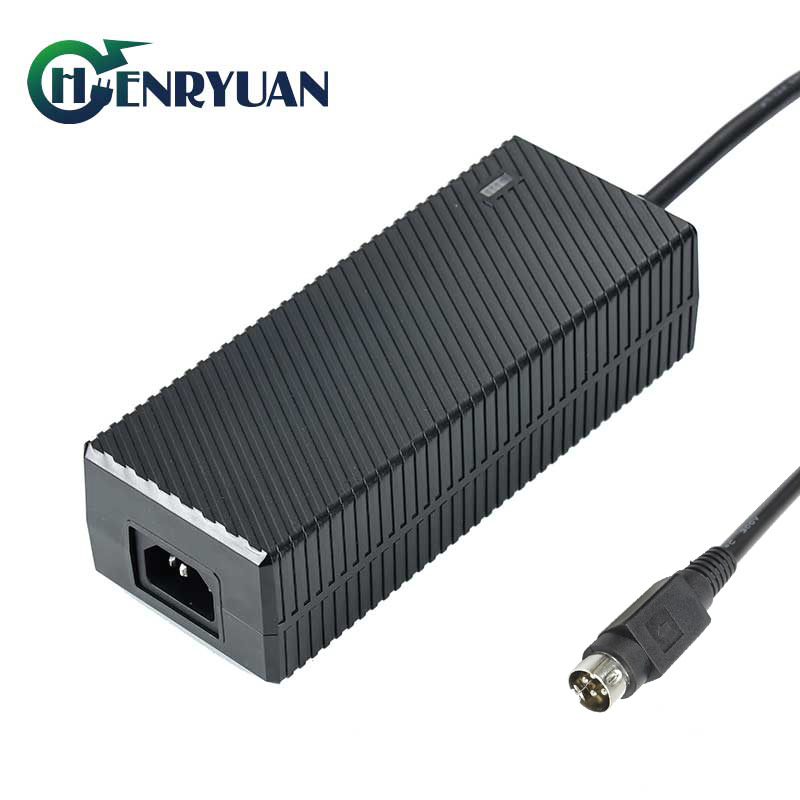

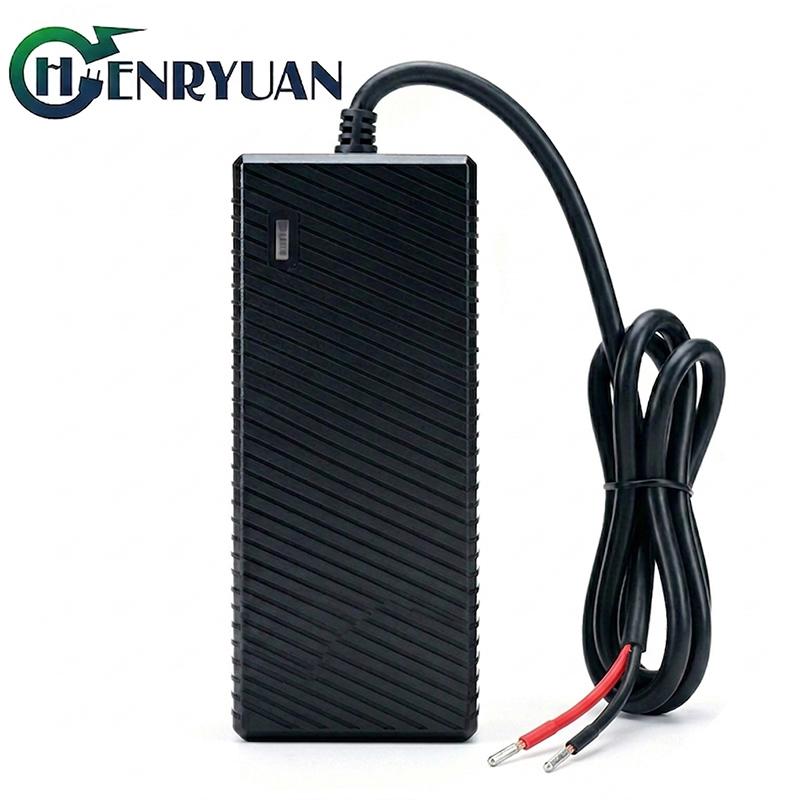

Henryuan 300W AC DC Adapter 24V 12.5A Switching Power Supply
Introducing Henryuan 300W 24V 12.5A AC/DC Adapter, the first level switching power supply designed for a wide range of applications. With industry-leading certifications and cutting-edge design, this 24V 12.5A power supply unit (PSU) is built for safety, reliability, and performance.
Key Features:
1. Certifications and Compliance:
- International Safety Standards: Our power supplies are rigorously tested and certified to meet global safety standards including UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC.
2. Input Specifications:
- Wide Voltage Range: Operates efficiently within an input range of 90Vac to 264Vac, with a rated input of 100Vac to 240Vac.
- Frequency and Current: Handles input frequencies between 47Hz and 63Hz with a maximum input current of 3A and inrush current up to 60A.
- Connector Options: IEC320-C14 3pin AC inlet
3. Output Specifications:
- Model: 24V 12.5A power adapter
- Stable Voltage and Current: Provides a consistent output voltage of 24V (with a tolerance of ±5%), supporting a current range from 0 to 12.5A.
- Power Capacity: Delivers up to 300W of power, ideal for demanding applications.
- LED Indicator: Equipped with an LED indicator for easy monitoring of the power status.
|
RATED OUTPUT |
SPEC. LIMIT |
REMARK |
|
|
Value(Min) |
Value(Max) |
|
|
|
Output Voltage |
22.8V |
25.2V |
24V±5% |
|
Output Current |
0.0A |
12.5A |
|
4. Protection Mechanisms:
- Comprehensive Protection: Includes overcurrent, overvoltage, short circuit, and hiccup protection to safeguard your devices and ensure reliable operation.
5. Quality Assurance and Reliability:
- Experienced Team: Our sales engineers, with over a decade of experience, provide precise understanding and solutions tailored to your needs.
- Strict Quality Control: From raw material selection to production, our rigorous inspection processes ensure superior product quality.
- Advanced Testing: Each unit undergoes a 100% full-load aging test for up to 4 hours, guaranteeing reliability and longevity.
- Responsive Support: Our comprehensive after-sales system promises timely analysis, feedback, and resolution within 48 hours.
6. Versatile Applications:
Wide Range of Uses: Suitable for powering automation, lighting, telecommunications, medical, consumer electronics, home appliances, renewable energy, 3D printing, and test and measurement equipment.
Global Reach: Our products are trusted by customers in the Americas, Europe, Asia, and beyond, reflecting our strong market presence.
About Henryuan Group:
With over 13 years of expertise in the production and R&D of switching power supplies, Henryuan Group stands at the forefront of the industry. We are committed to delivering high-quality power solutions that meet the diverse needs of our global clientele. Our product range includes various models of 24V switching power supplies, from 0.5A to 17.5A, ensuring we have the right solution for your specific requirements.
More Switching Power Supply Links:
Contact Us:
For a high efficiency, reliability, and stable power delivery 24V 12.5A power adapters, contact our knowledgeable sales engineers at Henryuan. We are ready to assist you with both existing products and custom development projects to perfectly match your needs.
