Products >> Lithium Ion Battery Charger >> 12.6V Lithium Ion Battery Charger

Premium Compact 12.6V 5A Lithium Charger 12V Li-Ion Battery Charger 5A

Product No.：HRY1265000
Online Inquiry

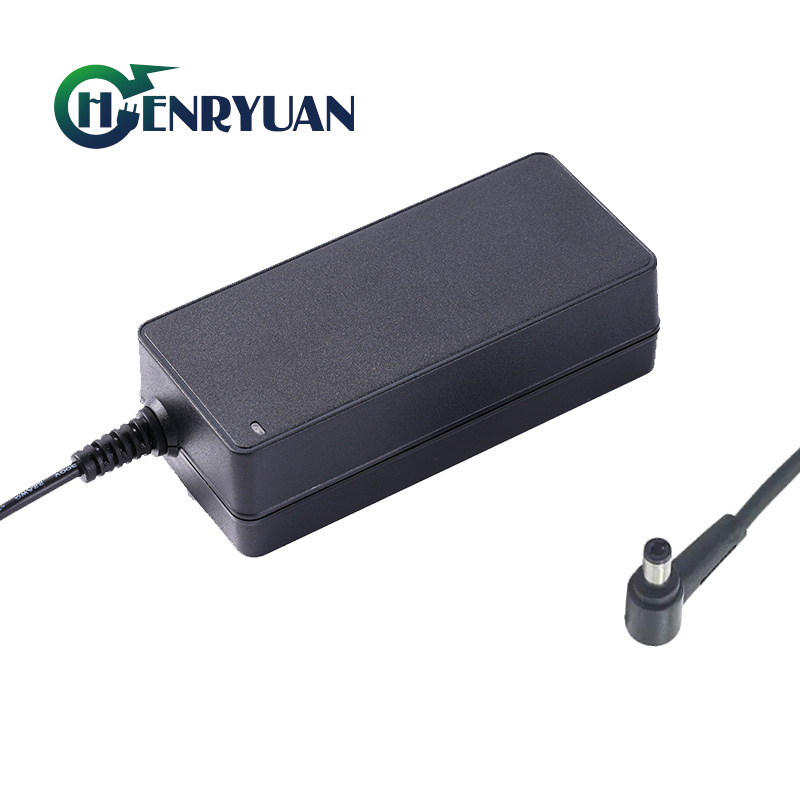

12.6V 5A Li-ion battery charger

Henryuan 12.6V 5A Lithium Ion Battery Charger | UL, cUL, FCC, PSE, CE, SAA, UKCA, CCC

Product Description:

Henryuan 63W 12V 5A Lithium Ion battery charger delivers exceptional performance and reliability, designed specifically for 3S 12V Li-ion batteries. Our 12.6V 5A charger features an advanced charging scheme with multiple protection mechanisms, ensuring faster and safer charging for various applications.

Key Features:

Worldwide Safety Certifications:

CB, UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

Input Features:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 1.3A
Inrush Current: 60A
AC Inlet: IEC320-C6, IEC320-C8, IEC320-C14

Output Specifications:

Output Voltage: 12.6V
Current: 5A
Charging Status Indicator: Dual-color LED (Red during charging, Green when fully charged)

Charging Process:

Model: 12.6 Volt 5Amp Li-ion Battery Charger
Constant Current (5A): Voltage range 7.5V-12.6V (Red LED)
Constant Voltage: 12.6V (Red LED when current drops from 5A to 0.5A)
Trickle Charging: 12.6V (Green LED when current drops below 0.4A)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
5A	7.5V-12.6V	Constant Current	RED
5A->0.5A	12.6V	Constant Voltage	RED
0.5A->0	12.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.5A

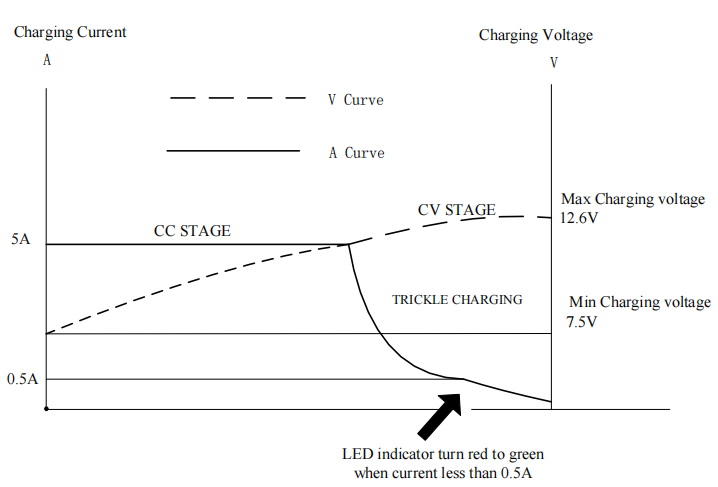

Detailed Charging Curve for 63W 12V 5A Lithium Ion Charger:

Charging Stages: Constant current, constant voltage, trickle current
LED Indicators: Red for charging, Green for fully charged.

Protection Features:

Over current, Over voltage, Short Circuit, and Reverse Polarity Protection

Quality Assurance:

A team of experienced sales engineers understanding customer needs
Rigorous raw material supplier selection and strict incoming material inspections
Over 20 years of expertise in material solutions design

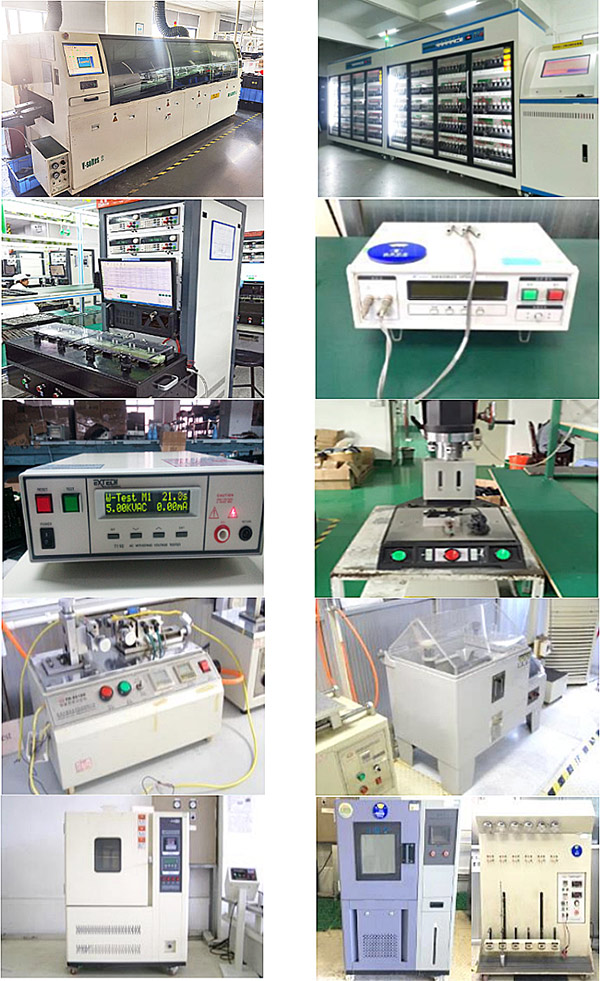

Skilled production staff and advanced testing equipment
100% aging testing process for up to 4 hours
Comprehensive after-sales support with resolutions within 48 hours

About Henryuan Group:

With over 13 years of expertise, Henryuan Group is a leader in the production and R&D of 12V lithium ion chargers. Our 12.6V 5A chargers are recognized for their superior performance and safety features, making them popular worldwide. Our products are exported to regions including the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, and Taiwan.

Henryuan's 12.6V 5A li-ion chargers are ideal for a variety of 12V lithium battery powered applications, such as electric golf trolleys, ultrasonic detectors, communication base stations, portable power stations, diving devices, electric motors, and more.
