  • Battery Powered Electric Golf Trolley charger 14.4V 4A Lithium Charger
Battery Powered Electric Golf Trolley charger 14.4V 4A Lithium Charger

Battery Powered Electric Golf Trolley charger 14.4V 4A Lithium Charger

Golf trolley charger

Premium Electric Golf Trolley Charger | 14.4V 4A Lithium Battery Charger | UL, cUL, PSE, CE, SAA, UKCA

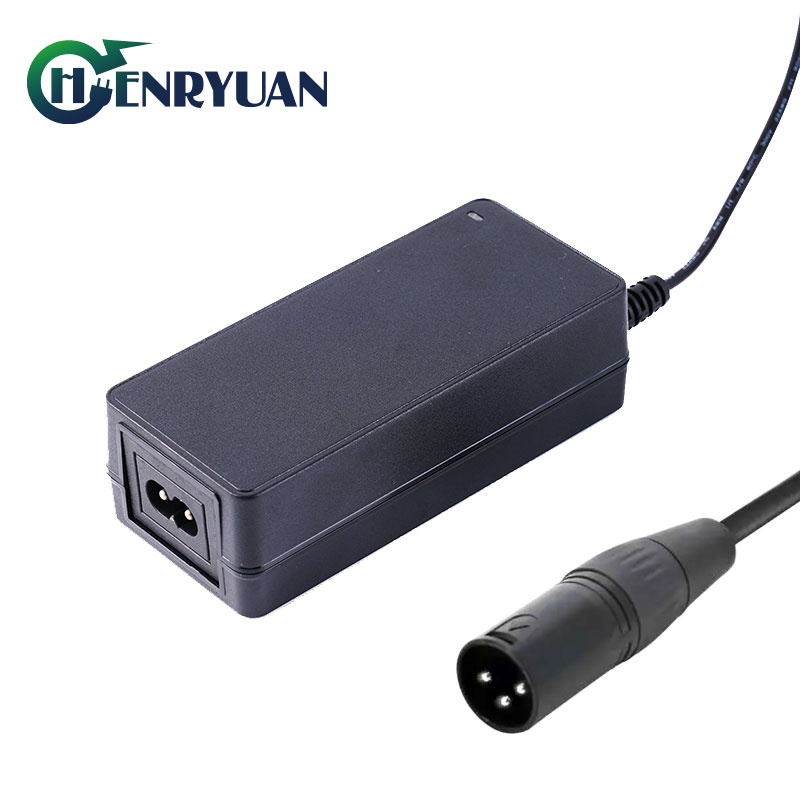

The Henryuan 14.4V 4A electric golf trolley charger is meticulously designed to charge 4S 14.4V lithium-ion batteries efficiently and safely. Engineered with advanced technology and top-quality components, this charger offers a fast and secure charging experience for a variety of applications.

Safety Certifications:

  • Our chargers are certified by multiple international safety certificates, including:

Input Specifications:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequency: 47Hz-63Hz
  • Input Current: 1.3A
  • Inrush Current: 60A

Output Specifications:

Equipped with a dual-color LED indicator to display charging status.

Constant Current: 4A, at voltage 10V-16.8V, red LED .
Constant Voltage: 16.8V, current 4A to 0.4A, red LED.
Fully Charged: Trickle Charging 0.4A to 0, 16.8V max, green LED.


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 0.4A

Charging Curve:

Special Designed 16.8V 4A battery charger for 4S 14.4V lithium ion battery powered golf trolley.
14.4V 4A electric golf trolley charger

Protection Features:

  • Over current protection.
  • Over voltage protection.
  • Short circuit protection.
  • Reverse polarity protection

Compact and Portable Design:

  • Its lightweight and compact design makes it easy to carry and store, perfect for use anywhere.
  • Dimensions: 116 x 52 x 34 MM
  • Weight: 0.25kg

Quality Assurance:

  • Experienced sales engineers with over a decade of expertise in understanding customer needs.
  • Rigorous selection process for raw material suppliers.
  • Strict incoming material inspection process.
  • Experienced engineers with over 20 years in material solutions design.
  • Skilled production staff and advanced production testing equipment.
  • 100% aging testing process, with up to 4 hours of full load aging.
  • Comprehensive after-sales support system, ensuring feedback and resolution within 48 hours.

About Henryuan Group:

Henryuan is a prominent leader in the production and R&D of lithium battery chargers, boasting over 13 years of experience. Our high-quality 14.4V 4A Li-ion battery charger is renowned for its exceptional performance and safety features, making it a preferred choice for consumers globally. Exported to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions.
Our 14.4V lithium chargers meet a wide
range of customer needs with unmatched reliability and efficiency. We offer a variety of 14.4V charger models including 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 15A, 20A, 25A.

Contact Us:

For a safe, reliable, and efficient lithium battery charger, contact Henryuan's expert sales engineers today.
