Products >> Lithium Ion Battery Charger >> 16.8V Lithium Ion Battery Charger

  • High Performance 14.4V 14.8V Li-Ion Battery 16.8V 15A Lithium Charger
High Performance 14.4V 14.8V Li-Ion Battery 16.8V 15A Lithium Charger

High Performance 14.4V 14.8V Li-Ion Battery 16.8V 15A Lithium Charger

14.4V Li-ion Battery 16.8V 15A Charger

High Performance 4S 14.4V 14.8V Lithium Li-Ion Battery Charger 16.8V 15A

Product Description:
14.4V 14.8V Lithium Battery Charger | 16.8V 15A Li-Ion Battery Charger

The Henryuan 16.8V 15A Lithium Battery Charger offers top level charging performance for a variety of 4S 14.8V/14.4V lithium-ion battery applications. With UL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

Key Applications:

  • Electric marine, Electric Scooters.
  • Communication Base Stations, Robots.
  • LED Lighting, Diving Equipments and other 14.4V/14.8V lithium battery powered equipments.

Safety Certifications:

  • Worldwide certificates
  • UL, ETL, cUL, FCC, PSE, CE,  EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications:

  • Voltage Range: 90Vac-264Vac
  • Rated Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Current: 5A
  • Inrush Current: 60A

Output Specifications:

  • Model: 16.8V 15A Lithium Battery Charger
  • Power: 252W
  • LED Indicator: Dual color (Red during charging, Green when fully charged)

Output

Charging Stage

LED Indicator

Current

Voltage

15A

10V-16.8V

Constant Current

RED

15A->1.5A

16.8V

Constant Voltage

RED

1.5A->0

16.8V

Trickle Current

GREEN
LED turn red to green when charging current below 1.5A

Charging Stages:

  • Constant Current: 15A fast charging, voltage 10V - 16.8V, LED red.
  • Constant Voltage: 16.8V max, current 15A to 1.5A, LED red.
  •  Trickle Current: 1.5A to 0, voltage 16.8V max, LED green.

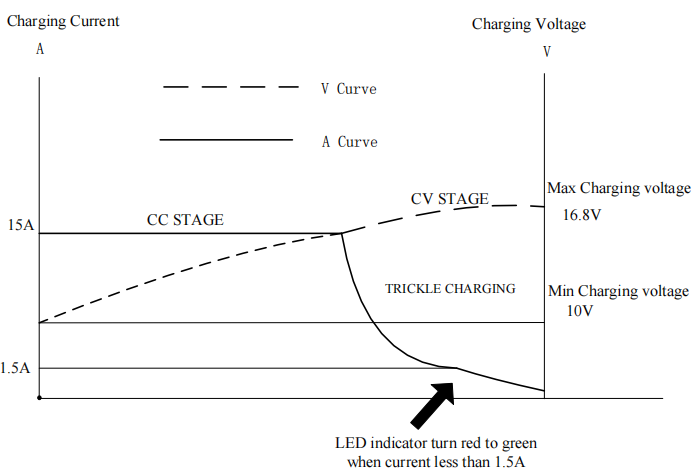

Charging Curve:

The 4S 14.4V li-ion battery charger maintains a consistent and efficient charging curve, preserving battery health.

16.8V 15A lithium charger

Compact and Portable Design

  • Its lightweight and compact design makes it easy to carry and store,but large power
  • Dimensions: 176 x 80 x 47 MM
  • Weight: 0.7kg

Protection Features:

  • Overcurrent Protection
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection

Quality Assurance:

  • Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
  • Rigorous Material Selection: Only top-quality raw materials are used.
  • Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
  • Expert Engineers: More than 20 years of design experience.
  • Skilled Production Team: Advanced production and testing equipment.
  • Aging Testing: 100% aging testing process, up to 4 hours at full load.
  • Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

Henryuan, high quality lithium charger manufacturer

With over 13 years of experience in the production and R&D of 14.4V/14.8V lithium battery chargers, Henryuan Group is a leading industry supplier. Our 16.8V 15A lithium battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.

Henryuan 14.4V Li-Ion Battery Charger Range:

Various 16.8V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20, 25A.

More 16.8V Lithium Charger Links:

Contact Us:

For a safe, reliable, and efficient 16.8V 10A lithium battery charger, contact Henryuan's expert sales engineers today.
