Products >> Lithium Ion Battery Charger >> 16.8V Lithium Ion Battery Charger

  • 4S 14.8V Lithium Charger DC 16.8V 1.5A Lithium Ion Battery Charger
4S 14.8V Lithium Charger DC 16.8V 1.5A Lithium Ion Battery Charger

4S 14.8V Lithium Charger DC 16.8V 1.5A Lithium Ion Battery Charger

16.8v 1.5a charger

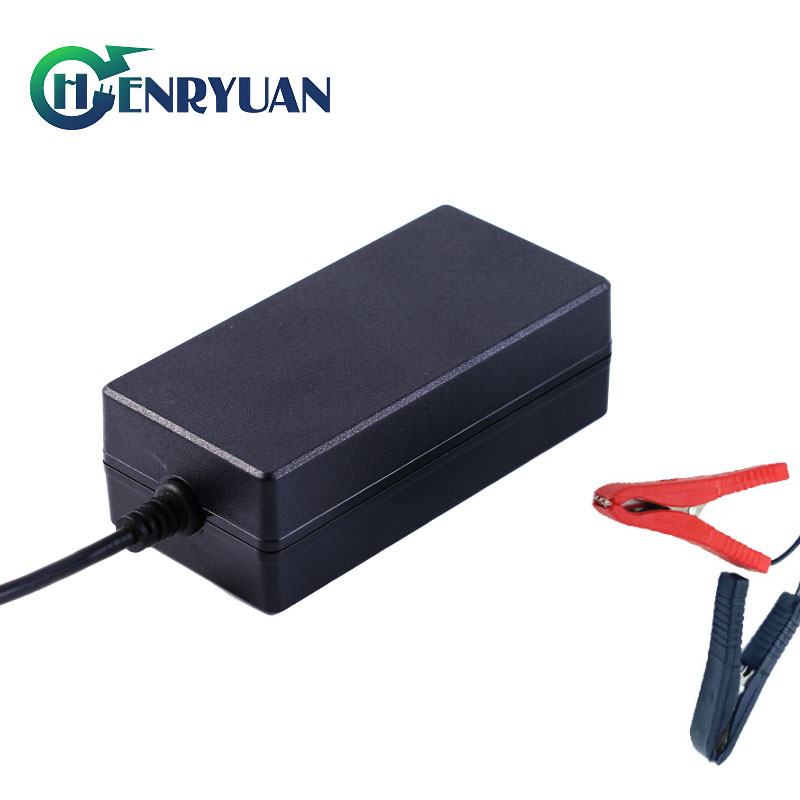

16.8V 1.5A Lithium Ion Charger For 4S Lithium Battery Pack

Product Description:

Introducing Henryuan high quality desktop 16.8V 1.5A lithium ion battery charger, a top charging solution for 4S 14.4V/14.8V lithium ion batteries. This desktop charger is engineered with advanced charging technology, ensuring fast and safe power delivery. Certified by UL, cUL, PSE, SAA, CE, EMC, LVD it features multiple protection mechanisms including over-current, over-voltage, and short circuit protection. Ideal for various applications, such as educational robots, electric toys, LED desk lamps, flashlights, diving lamps, GPS modules, and massagers, this charger provides reliable performance and user-friendly operation.

Key Features:

  • Certifications: CE EMC, LVD, GS, UL, FCC, cUL, UKCA, SAA, PSE

Input Features:

  • Voltage: 90-264Vac (rated 100-240Vac)
  • Frequency: 47-63Hz
  • Current: 1.3A
  • Inrush Current: 60A
Output Features:
  • Current: 1.5A, Constant current, LED red.
  • Voltage: 16.8V, current 1.5A to 0.2A Constant voltage, LED red.
  • 0.2A to 0A, Trickle current, LED green.
  • LED Indicator: Red during charging, green when fully charged


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 0.2A

Compact and Portable Design

  • Lightweight and compact design makes it easy to use anywhere
  • Dimensions: 70 x 44 x 28 MM
  • Weight: 100g

Protection Features:

  • Over current, over voltage, short circuit, and reverse polarity protection

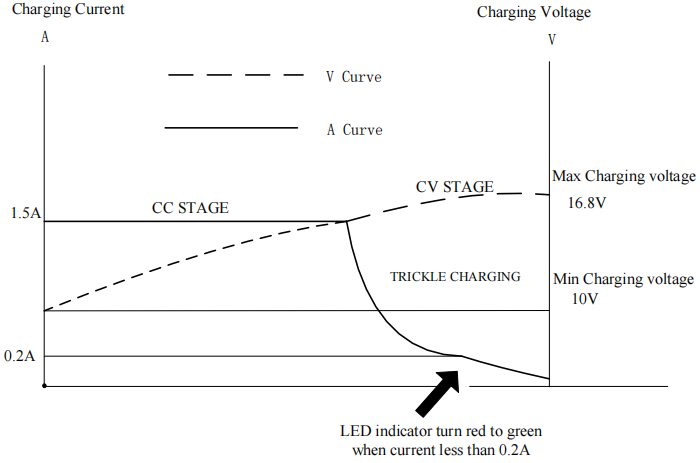

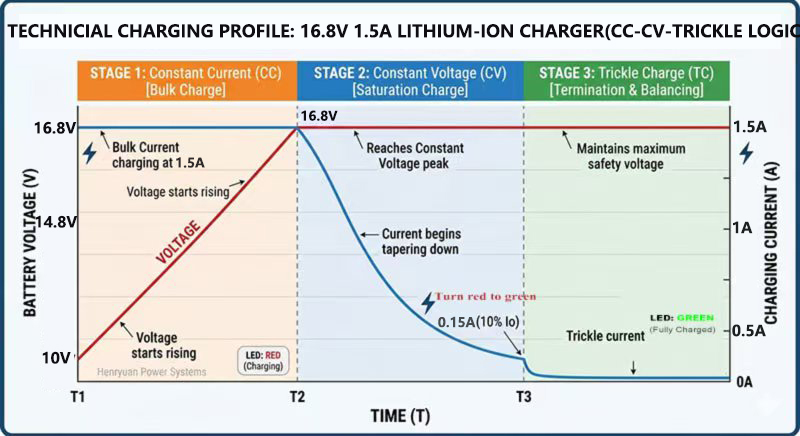

Charging Curve:

  • 16.8V 1.5A Charger, suitable for 4s 18650 lithium-ion batteries
8.4V 1.5A charger

Quality Assurance:

  • Experienced sales, engineers and rigorous supplier selection
  • Strict material inspection and advanced testing
  • 100% aging test for up to 4 hours at full load
  • Comprehensive after-sales support with 48-hour resolution

Company Profile:

Henryuan Group, with over a decade of R &D experience in lithium battery chargers, is a leading industry supplier known for superior performance and safety. Their 8.4V 1.5A lithium chargers are popular worldwide, including in the Americas, Europe, Austrlia and Asia. The 8.4V 1.5A lithium ion charger offers reliable and efficient charging with excellent EMI performance. Henryuan's engineers meet both standard and custom requirements, making their chargers ideal for various applications.

Henryuan 16.8V Lithium Charger Range:

Various 16.8V lithium battery chargers with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A, 15A, 20A, 25A.
