Products >> Lithium Ion Battery Charger >> 16.8V Lithium Ion Battery Charger

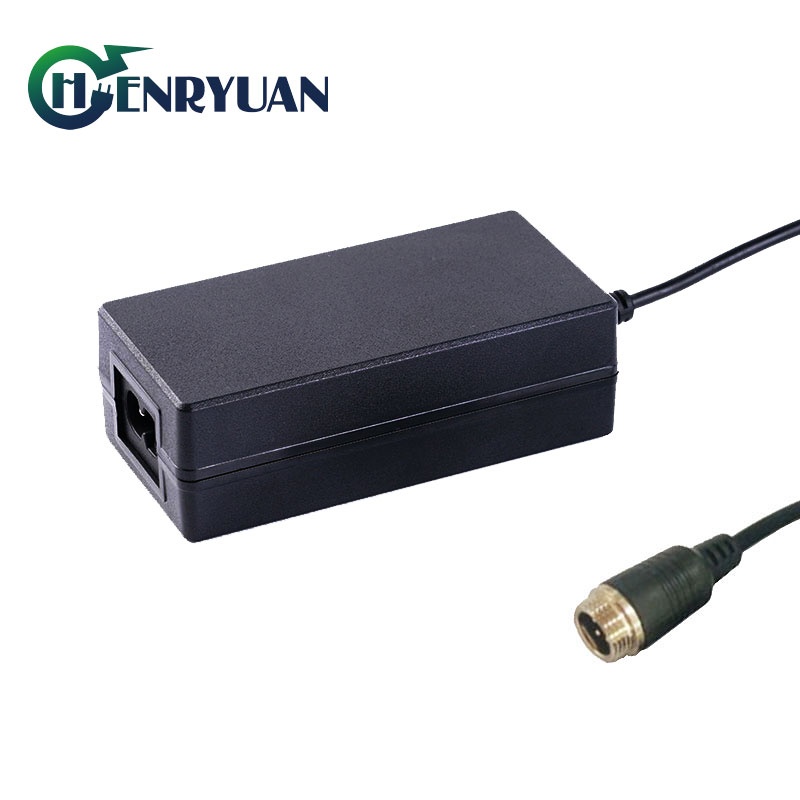

UL PSE CE SAA lithium ion DC 16.8V 1A 2A charger 4S 14.8V Li ion charger

Product No.：HRY1682000
Online Inquiry

Henryuan's 16.8V 1A/2A Chargers: Certified, Efficient, and Safe for 4S Lithium-Ion Batteries

Product Overview

Henryuan's UL PSE CE SAA 16.8V 1A/2A Charger is designed for 4S 14.8V lithium-ion batteries. This high-quality charger ensures safe and fast charging, thanks to its advanced charging scheme and multiple protection mechanisms. It’s versatile and ideal for charging UV LED lights, robots, power tools, diving lamps, and respirators.

Key Features

Safety Certifications: Certified by UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC, ensuring compliance with international safety standards.

1. Input Specifications:

Voltage: 90-264Vac (Rated: 100-240Vac)
Frequency: 47-63Hz
Current: 1A
Inrush Current: 35A

2. Output Specifications:

Model: 16.8V lithium ion battery charger
Features a dual-color LED indicator light that displays the charging status.
Red: Charging
Green: Fully Charged

3. Charging Stages(16.8V 2A):

Constant Current: 2A (10V-16.8V)
Constant Voltage: 2A->0.2A (16.8V)
Trickle Charging: 0.2A->0 (16.8V)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
2A	10V-16.8V	Constant Current	RED
2A->0.2A	16.8V	Constant Voltage	RED
0.2A->0	16.8V	Trickle Current	GREEN LED turn red to green when charging current below 0.2A

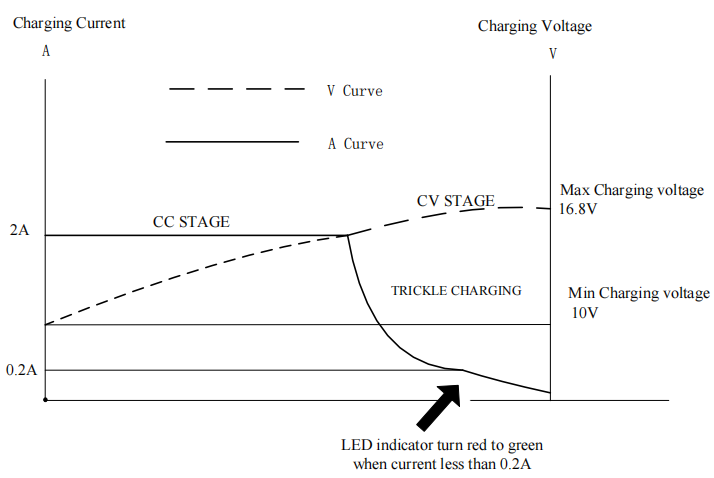

4. Charging Curve

Consistent and reliable DC 16.8V 2A output for optimal battery charging.

Protection Features:

Over-current, over-voltage, short-circuit, and reverse polarity protection to ensure safe operation.

Quality Assurance:

Experienced Sales Engineers: Over a decade of industry experience.
Rigorous Supplier Selection: Ensuring high-quality raw materials.
Strict Inspection Processes: Comprehensive checks on incoming materials.
Expert Engineers: Over 20 years of experience in material solutions design.
Skilled Production Staff: Utilization of advanced production and testing equipment.
Aging Testing: 100% full load aging testing for up to 4 hours.
Comprehensive After-Sales Support: Analysis, feedback, and resolution within 48 hours.

About Henryuan Group

With over 13 years of experience in the production and R&D of 16.8V lithium battery chargers, Henryuan Group is a leading supplier in the industry. Our 16.8V 2A chargers are renowned for their superior performance and safety features, making them a preferred choice for consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, achieving a high market share.

Our chargers' safety, speed, and efficiency make them suitable for a variety of applications. With excellent EMI performance and a team of experienced engineers, we meet customer requirements for both existing products and those in development.
