Product Overview

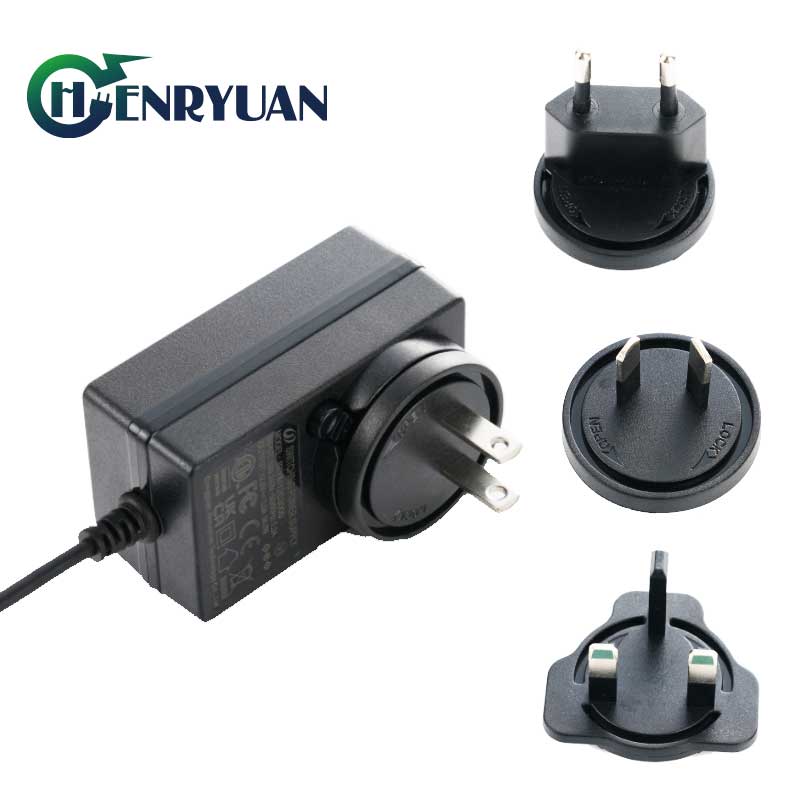

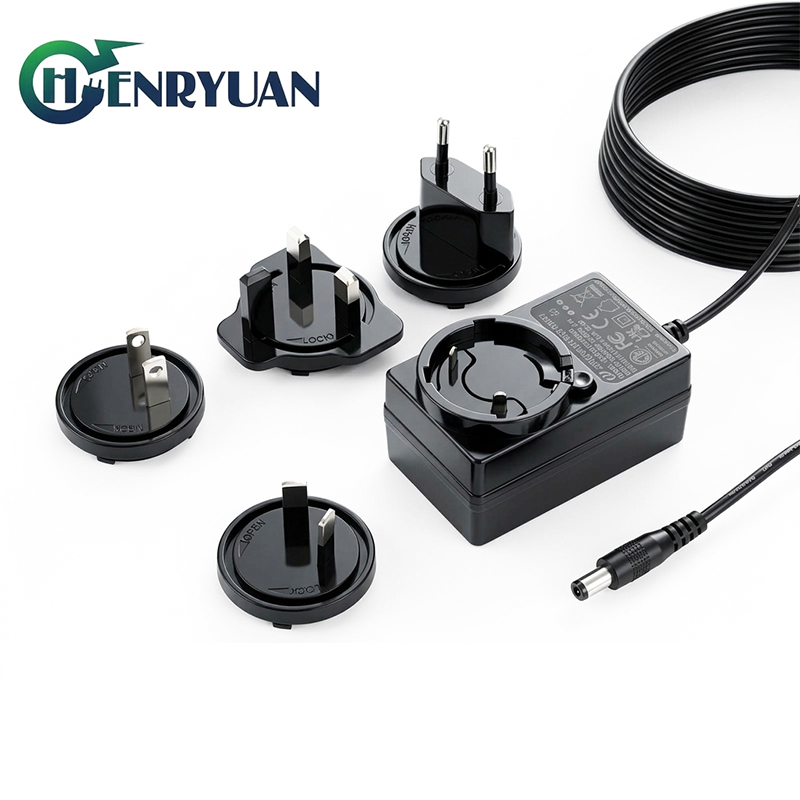

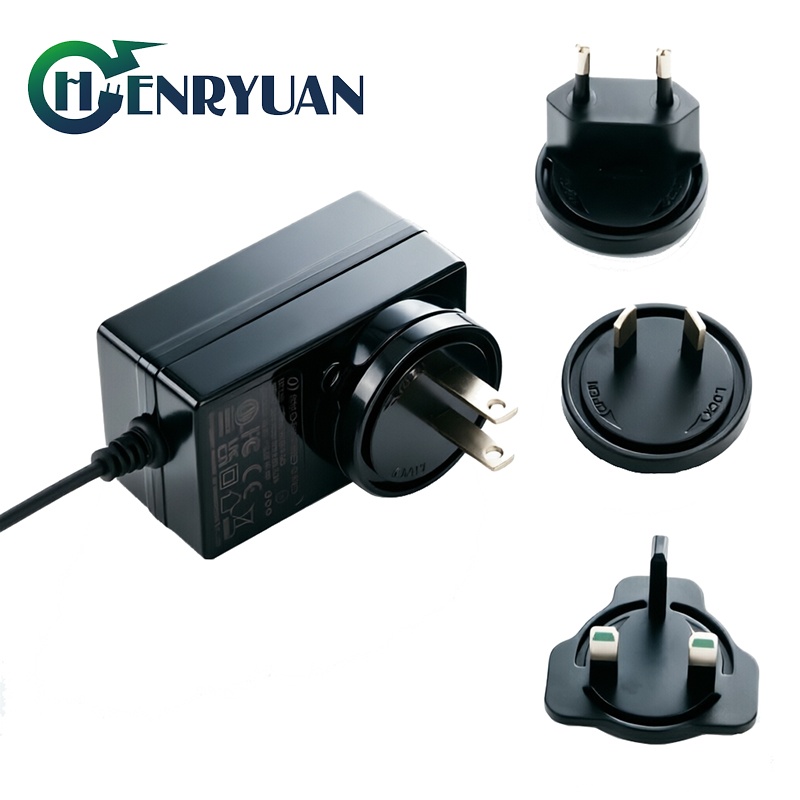

The Henryuan 12V 1A switching power supply is a compact, reliable AC DC adapter with interchangeable plugs (US, EU, UK, AU, JP). Designed for global applications, it ensures high efficiency, low noise, and excellent EMI performance. Certified to international standards, it is widely used for AV devices, LED lighting, networking equipment, and consumer electronics.

Key Features & Benefits

• Interchangeable AC sockets: US, EU, UK, AU, JP
• Certified safety compliance: UL, ETL, cUL, FCC, CE, PSE, SAA, UKCA, KC, CCC
• IEC standards compliance: 60950, 62368, 61558, 60335
• DOE Level VI efficiency for energy saving
• Full protection system: overcurrent, overvoltage, short circuit, hiccup mode
• 100% full-load burn-in test and strict quality inspection

Technical Specifications

Input

• Voltage: 90–264Vac (rated 100–240Vac)
• Frequency: 50/60Hz
• Current: 0.6A
• Inrush Current: 35A

Output Specifications

• Voltage: 12V (range 11.4V–12.6V, ±5%)
• Current: 1.0A max
• Power: 12W

RATED OUTPUT	SPEC. LIMIT		REMARK
	Value(Min)	Value(Max)
Output Voltage	11.4V	12.6V	12V±5%
Output Current	0.0A	1.0A

Applications

• Audio, Video & Broadcast Equipment: Works flawlessly as a noise-free 12V 1A switching adapter for audio video equipment, utilizing advanced filtering topologies to eliminate power hum and speaker hiss.
• Smart Home Hubs & Networking Devices: Highly optimized as a reliable wireless router replacement 12V 1A AC adapter partner, supporting safe, continuous 24/7 enterprise deployments without thermal stress.
• CCTV Grids & Security Terminals: Ideal for multi-channel arrays, serving as an ultra-stabilized 12V 1A power adapter for CCTV security cameras, delivering clean DC signals that rule out monitor rolling lines.

Why Choose Henryuan?

With over 13 years of expertise, Henryuan Group is a trusted manufacturer of switching power supplies and adapters. Our 12V 1A power supply is exported worldwide and recognized for safety, stability, and long service life. We also provide a full range of 12V adapters from 0.3A to 25A, meeting both standard and custom requirements.

Related Products

• 12V 0.5A Adapter
• 12V 2A Power Supply
• 12V 3A Power Adapter
• 12V 5A Adapter
• 12V 10A Switching Power Supply

Explore more switching power supplies »

Q & A
Q1: Can I use a 12V 2A or 12V 5A power adapter to power a device that only requires 12V 1A?

A: Yes, absolutely. This is one of the most common misconceptions in power sourcing. Voltage (12V) must match your device perfectly, but current (amperage) is drawn on-demand by the load. A 12V 1A device will only pull 1A of current from a 2A or 5A power supply. In fact, using a higher-amperage adapter provides more thermal headroom and extends the lifespan of the power supply because it is not running at 100% capacity.
Crucial Warning: Never do the reverse. Connecting a 12V 1A adapter to a device that demands 2A will overload the adapter, causing extreme overheating, voltage drops, or localized circuit failure.
Q2: How do I verify if the tip polarity of this 12V 1A adapter matches my hardware?

A: Device polarity is paramount to preventing catastrophic component damage. Most industrial and consumer electronics utilize a Center-Positive configuration, indicated by a diagram where the inner dot is connected to a plus sign (+) and the outer ring to a minus sign (-).

However, specialized sectors—such as boutique guitar effects pedals and pro-audio gear—strictly require a Center-Negative setup. Henryuan offers fully customizable polarity configurations at the factory level, along with custom-molded cables to match your precise engineering specifications.
Q3: What is the difference between unregulated and regulated 12V 1A power supplies?

A: Unregulated Adapters (Legacy linear transformers): The voltage fluctuates depending on the load. A nominal "12V" unregulated supply might spike up to 16V or 18V when the device is idle, potentially frying sensitive microcontrollers.

• Henryuan Regulated Switching Adapters: We implement a pure analog, active-switching feedback loop. Whether your device is in deep-sleep mode or drawing full load, our adapters maintain a surgical, hardware-stabilized output of exactly 12V , safeguarding your internal PCB components from unexpected overvoltage stress.


Q4: Why does my current 12V 1A power adapter cause a high-pitched buzzing or static hiss in my audio/video gear?
A: That noise is the byproduct of high Output Voltage Ripple and Noise leaking into your device’s analog signal paths, combined with poor Electromagnetic Interference (EMI) shielding. Henryuan addresses this pro-audio bottleneck by implementing medical/studio-grade filtering topologies. Our 12V 1A adapters deliver an absolute black noise floor and zero screen flicker for CCTV cameras, monitors, and audio hardware.

Q5: Is it safe to run a 12V 1A power adapter continuously (24/7) for network routers or smart home hubs?

A: Only if the adapter is designed with industrial-grade thermal dissipation and holds legitimate global safety certificates. For continuous duty cycles, cheap commodity adapters will overheat, degrade rapidly, and present a fire hazard.

Henryuan 12V 1A adapters feature a fanless, convection-cooled enclosure molded from UL 94V-0 flame-retardant PC. Backed by an integrated hardware protection matrix (Over-Voltage, Over-Current, Short-Circuit, and Over-Temperature Protection), our platforms operate under strict DoE Level VI and CoC Tier 2 energy efficiency standards, making them exceptionally safe for long-term, non-stop enterprise deployments.

Contact Us

Looking for reliable 12V 1A switching power supply with interchangeable plugs? Contact Henryuan’s expert sales engineers today for fast technical support and customized solutions.
