Products >> Lithium Ion Battery Charger >> 50.4V Lithium Ion Battery Charger

  • 12S Lithium Esk8 Electric Skateboard Battery Charger 50.4V 4A 5A 6A

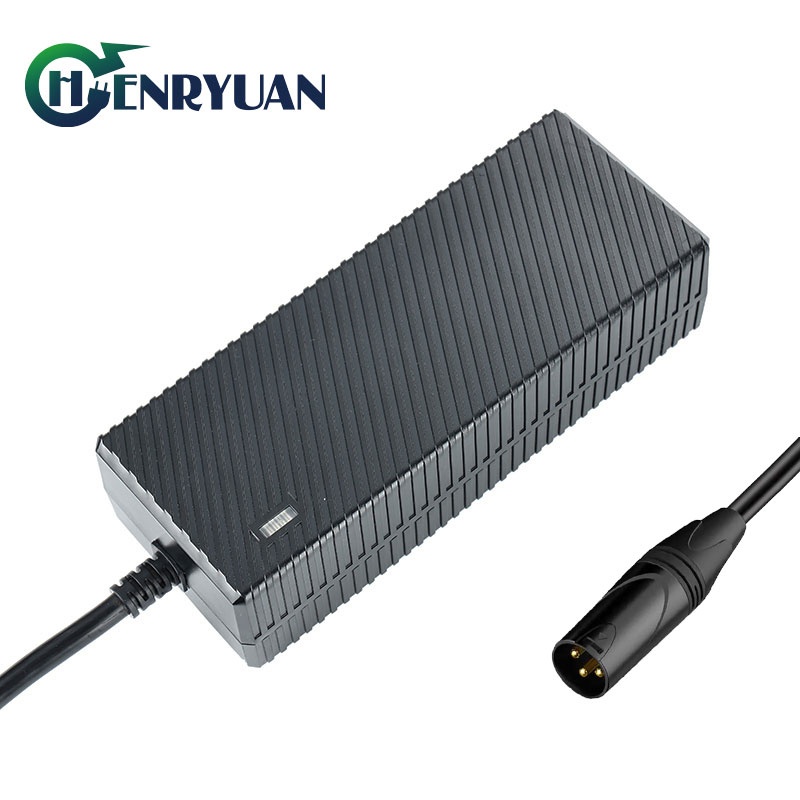

12S Lithium Esk8 Electric Skateboard Battery Charger 50.4V 4A 5A 6A

12S Lithium Esk8 Electric Skateboard Battery Charger 50.4V 4A 5A 6A

12s skateboard battery charger

Lithium Ion 50.4V Li-Ion charger | UL cUL CE PSE SAA UKCA Listed Lithium Esk8 Skateboard Charger

Henryuan high quality 50.4V li-ion battery charger with constant current output 50.4V 4A, 5A, 6A, 7A, 8A, It is a top quality level esk8 skateboard charging solution that designed for 12S 44.4V lithium ion battery packs. This esk8 electric skateboard battery charger is engineered with many advanced safety mechanisms, over current protection, over voltage protection, short circuit protection and reverse voltage protection. The high quality 50.4V li-ion battery charger with high quality components and advanced designs ensure the reliable and efficient charging for various esk8 electric skateboards, 3 years warranty.

Comprehensive Safety Certificates:

  • Henryuan 12S esk8 electric skateboard chargers meet global safety standards with certifications from CB, CE, UKCA, SAA, PSE, TUV, UL, ETL, cUL, FCC and RoHS.

Input Specifications:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Frequency: 50/60Hz
  • Input Current: 5A
  • Inrush Current: 60A

Output Features:

  • Various models available:
    • 2A Charger: HRY5042000
    • 3A Charger: HRY5043000
    • 3.5A Charger: HRY5043500
    • 4A Charger: HRY5044000
    • 4.5A Charger: HRY5044500
    • 5A Charger: HRY5045000
    • 6A Charger: HRY5046000
    • 7A Charger: HRY5047000
    • 8A Charger: HRY5048000
  • LED Indicator: Dual color LED indicator shows charging status: LED turn red to green when battery is fully charged.

50.4V 4A Li-ion Battery Charger :

  • Constant Current: 4A fast charging, red LED.
  • Constant Voltage: 50.4V max, red LED
  • Trickle Charging: 0.4A to 0,  fully charge the skateboard battery, green LED.

Output

Charging Stage

LED Indicator

Current

Voltage

4A

30V-50.4V

Constant Current

RED

4A->0.4A

50.4V

Constant Voltage

RED

0.4A->0

50.4V

Trickle Current

GREEN

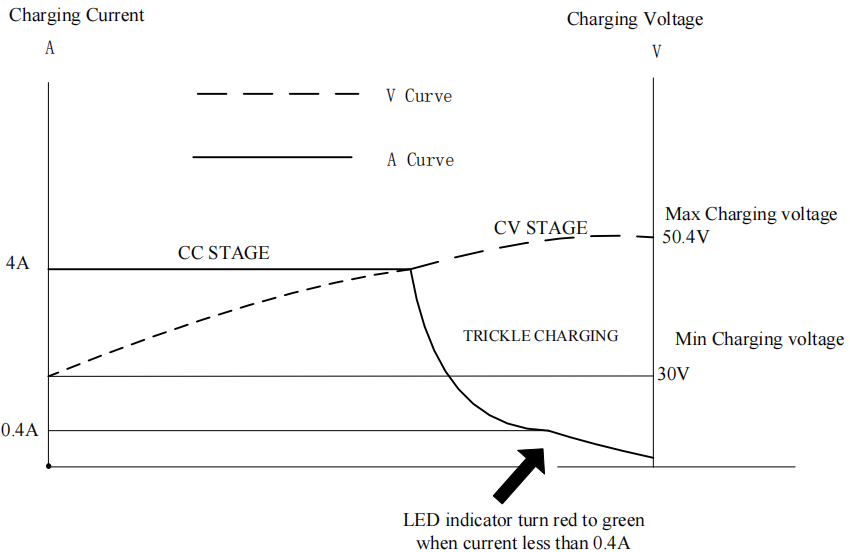

Charging Curve, Safe and efficient 50.4V 4A charging for 12S electric skateboard battery packs.

50.4V 4A electric skateboard charger

Applications:

  • Perfect charging for lithium 12s esk8 skateboards and other 12s li-ion battery powered products.

Advanced Protection Features:

  • Advanced overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

Variety Of Connectors Supported:
Charging Connectors

Quality Assurance:

  • A skilled team of sales engineers with over a decade of experience
  • Rigorous raw material selection and inspection process
  • Experienced engineers with over 20 years in material solutions design
  • Advanced production testing equipment and processes
  • 100% full-load aging testing for up to 4 hours
  • Comprehensive after-sales support system with a resolution timeframe of within 48 hours

About Henryuan Group

With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading supplier in the electric skateboard charger industry. Our high quality 12s 50.4V esk8 electric skateboard chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

More 50.4V Lithium Battery Chargers Links:

Contact Us

For a reliable and efficient 50.4V esk8 electric skateboard li-ion battery charger, contact Henryuan's sales engineers today. We offer a range of models, including 50.4V 2A, 3A, 3.5A, 4A, 5A, 6A, 7A and 8A chargers to meet your specific needs.
