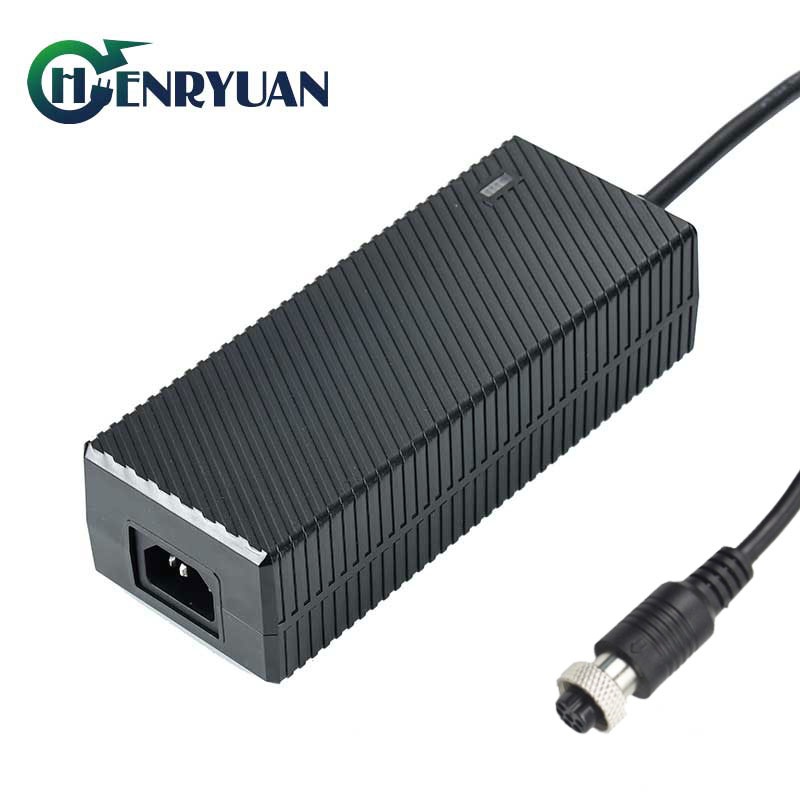

3Pin High Quality Portable 300W 12S 50.4V 6A Li-Ion Battery Charger

Product No.：HRY5046000
Online Inquiry

12s 50.4V 6A charger

3Pin High Quality Portable 50.4V 6A Charger for 12S 44.4V Li-Ion Batteries

Henryuan provides the top level 50.4V 6A lithium ion battery charger, which is designed specifically for 12S 44.4V li-ion batteries. Featuring advanced charging schemes and multiple protection mechanisms, this 50.4V 6A charger ensures both safety and efficiency. It’s ideal for a wide range of applications, including electric skateboards, firefighting equipment, electric outboard motors, electric wheelchairs, e-bikes, e-scooters, underwater scooters, drones, and robotic devices.

Key Safety Certifications:

Certifications: UL, cUL, ETL, CE, EMC, FCC, LVD, PSE, SAA, UKCA. RoHS

Input Features:

Input Voltage： 90Vac-264Vac
Rated Input Voltage： 100Vac-240Vac
Input Frequence：50/60Hz
Input Current：5A
Inrush Current： 60A

Output Specifications:

Model: Lithium Battery 12S 50.4V 6A Charger.

Output Voltage: 50.4V max.
Output Current:Constant current 6A.
LED Indicator:Dual color LED shows charging status.
Red indicates charging, and green indicates a full charge.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
6A	30V-50.4V	Constant Current	RED
6A->0.6A	50.4V	Constant Voltage	RED
0.6A->0	50.4V	Trickle Current	GREEN LED turn to green when fully charge the battery packs

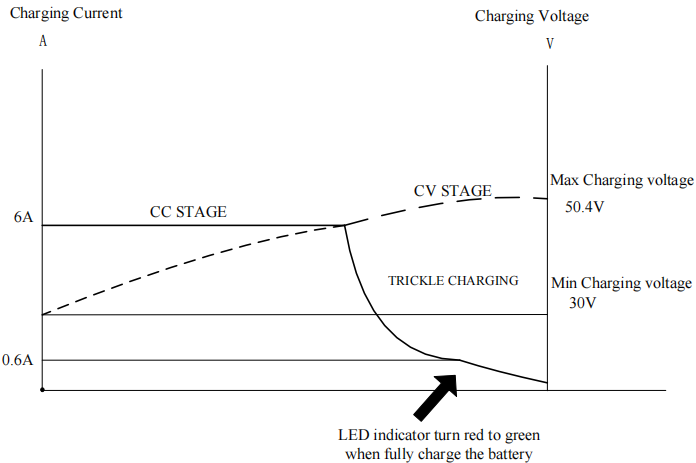

Charging Curve:

This 50.4V 6A charger utilizes an intelligent 3-stage charging curve for efficient and safe operation, fast and safe charing the 12s battery paks.

Protection Features:

Over current protection
Over voltage protection
Short circuit protection
Reverse polarity protection

Quality Assurance:

1. Experienced Team: Our sales engineers have over a decade of expertise, ensuring a deep understanding of customer needs.
2. Supplier Selection: We employ a rigorous process for selecting raw material suppliers to guarantee quality.
3. Material Inspection: All incoming materials undergo stringent inspection procedures.
4. Engineering Expertise: Our engineers, with over 20 years of experience, specialize in material solutions design.
5. Skilled Production: Our team uses advanced testing equipment, and every charger is subjected to 100% aging testing for up to 4 hours at full load.
6. After-Sales Support: We provide comprehensive support with analysis, feedback, and issue resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a recognized leader in the battery charger industry. Our 50.4V 6A li-ion battery chargers are known worldwide for their superior performance and safety, making them a trusted choice across various regions including the Americas, Europe, the UK, Australia, and New Zealand.

Explore Our Range of 50.4V Lithium Ion Chargers:

We offer a wide range of 50.4V chargers, including models from 0.5A to 8A. Whether you need a standard or customized solution, our chargers deliver reliable, efficient, and safe charging.
