  • 100-240Vac Input Portable DC 36V Lithium Battery 10S 4A Charger
100-240Vac Input Portable DC 36V Lithium Battery 10S 4A Charger

100-240Vac Input Portable DC 36V Lithium Battery 10S 4A Charger

10s 4a charger

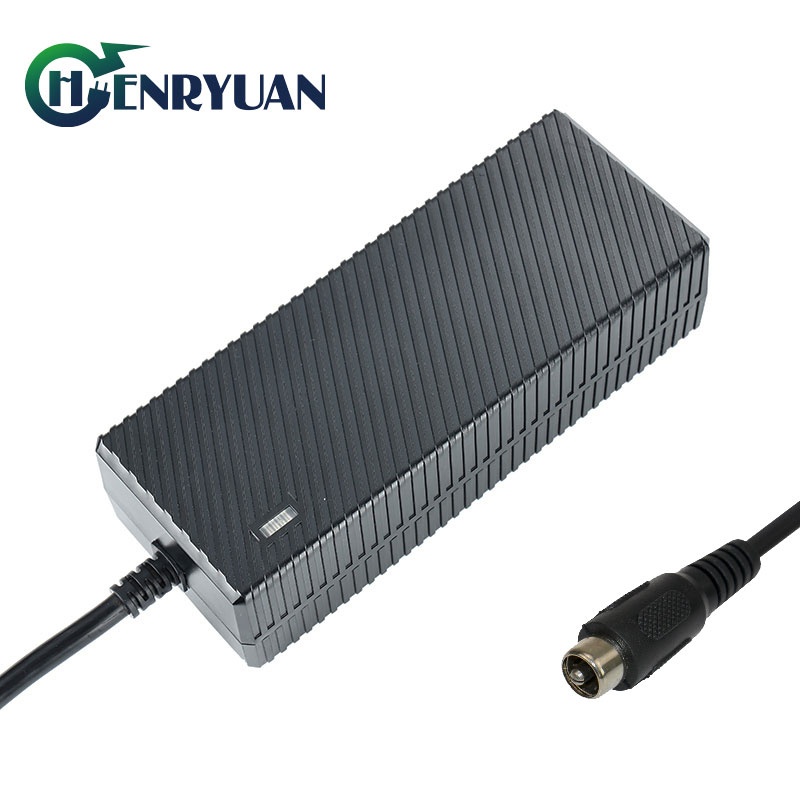

10S 4A Li-Ion Battery Charger For 36V Li-Ion Battery Pack

Introducing Henryuan 10s 42V 4A charger, the advanced 42V 4A li-ion battery charger tailored for 10s 36V lithium battery packs. With its advanced design and top quality components, this charger ensures both safety and speed during the charging process. High quality portable 42V 4A li-ion chargers that used for electric scooters, electric skateboards, power tools, electric lawn mowers and other 36V battery powered equipments.

Product Highlights:

Safety Certifications: CB, CE, UL, ETL, cUL, FCC, PSE, UKCA, SAA, KC, CCC.
Customized Charging: Customized voltage, current, and DC output connectors for various 36V battery packs.

Input Specifications:

Voltage: 90Vac-264Vac (Rated: 100Vac-240Vac)
Frequency: 50/60Hz
Current: 3A (Inrush Current: 60A)
AC Inlet: 2pin IEC320-C8, 3pin IEC320-C6, and IEC320-C14.

Output Features:
Model: 10s 42V 4A li-ion battery charger
LED Indicator: Dual color LED shows charging status (Red for charging, Green for fully charged).
Charging Stage: Constant Current (4A) until 42V, then Constant Voltage (42V) until trickle current.

Output

Charging Stage

LED Indicator

Current

Voltage

4A

25V-42V

Constant Current

RED

4A->0.4A

42V

Constant Voltage

RED

0.4A->0

42V

Trickle Current

GREEN
LED turn red to green when fully charge battery packs

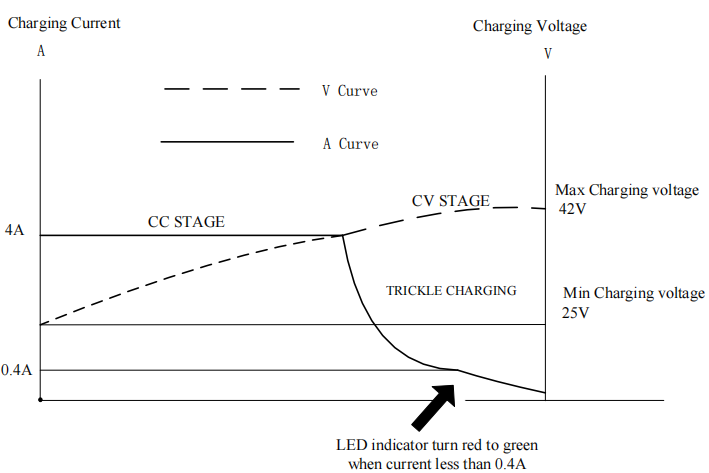

Charging Curve:
Advanced 10s 42V 4A charger for li-ion battery packs.
 42V 4A lithium battery charger

Various Protection Mechanisms: Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.

Quality Assurance:
  • Sales Engineers with over a decade of expertise.
  • Rigorous material selection and incoming inspection processes.
  • Experienced engineers for over 20 years in material solutions design.
  • Skilled production staff and advanced testing equipment.
  • 100% aging testing process, ensuring reliability.
  • Comprehensive after-sales system for prompt issue resolution within 48 hours.

Henryuan Group: With over 13 years of experience, Henryuan Group leads the industry in lithium battery charger production and R&D. Our 10s 42V 4A lithium ion battery chargers are renowned for superior performance and safety globally. Exported to numerous countries and regions, these 42V 4A chargers offer both safety and efficiency, meeting diverse customer requirements. Whether you need an existing product or a customized solution, Henryuan's experienced engineers ensure satisfaction. For safe, reliable, and efficient charging, trust Henryuan's range of 42V chargers.
