  • UL SAA CE PSE Factory Customized 42V 5A Li-ion Charger For 36V Battery

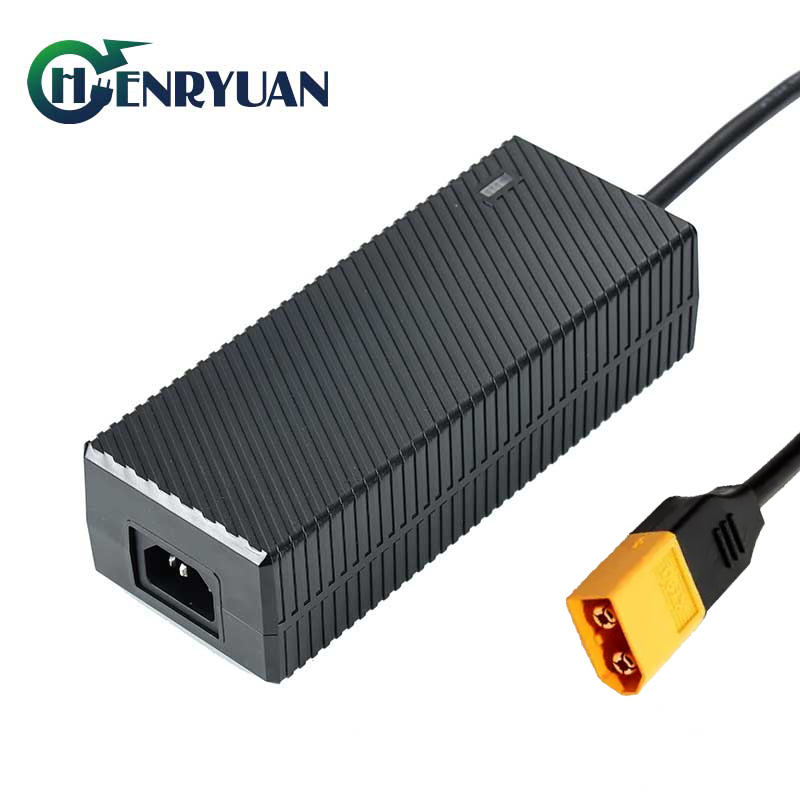

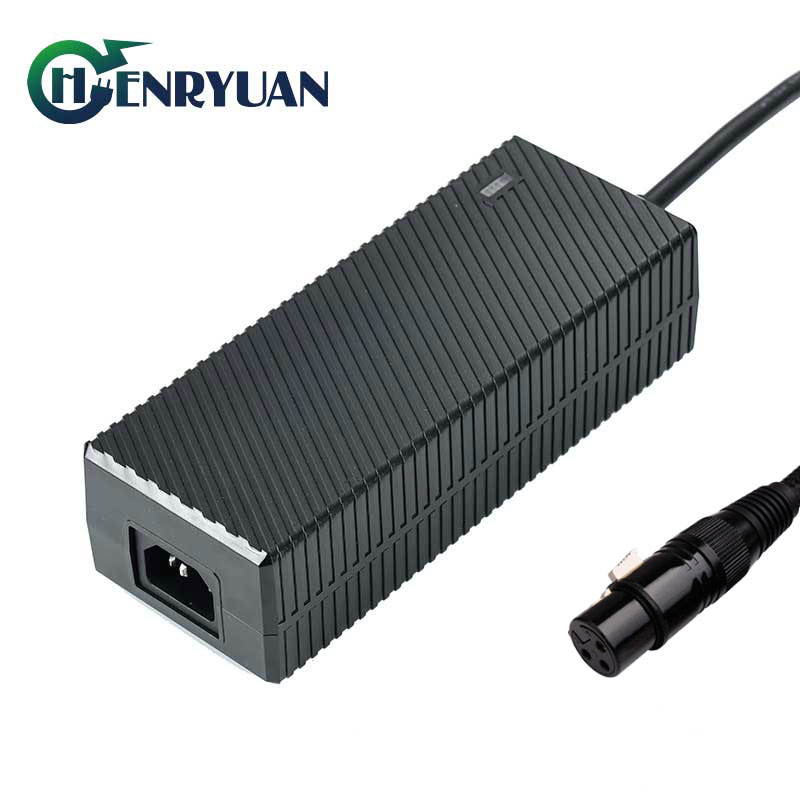

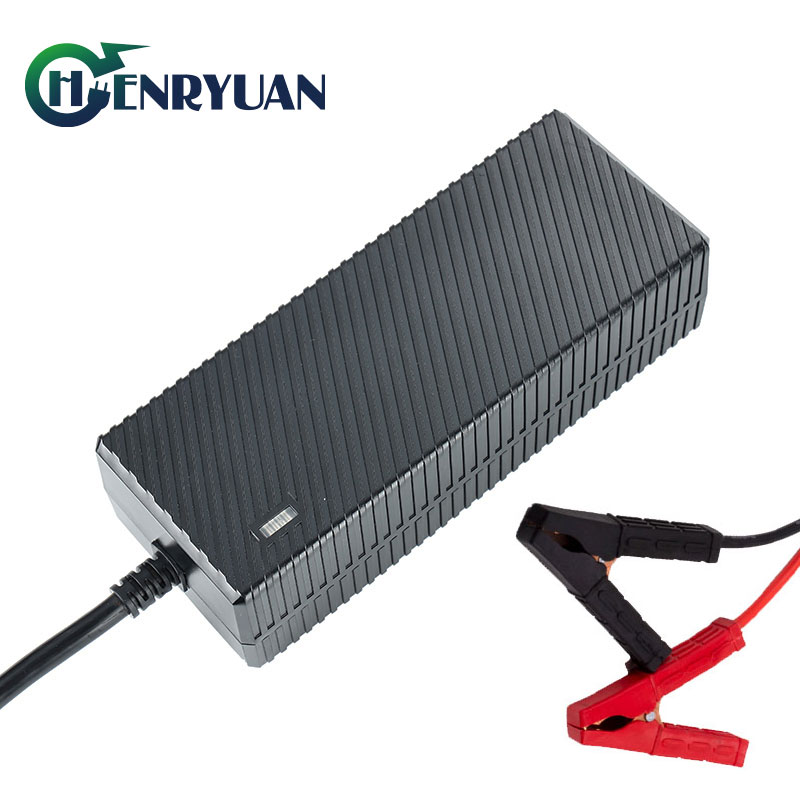

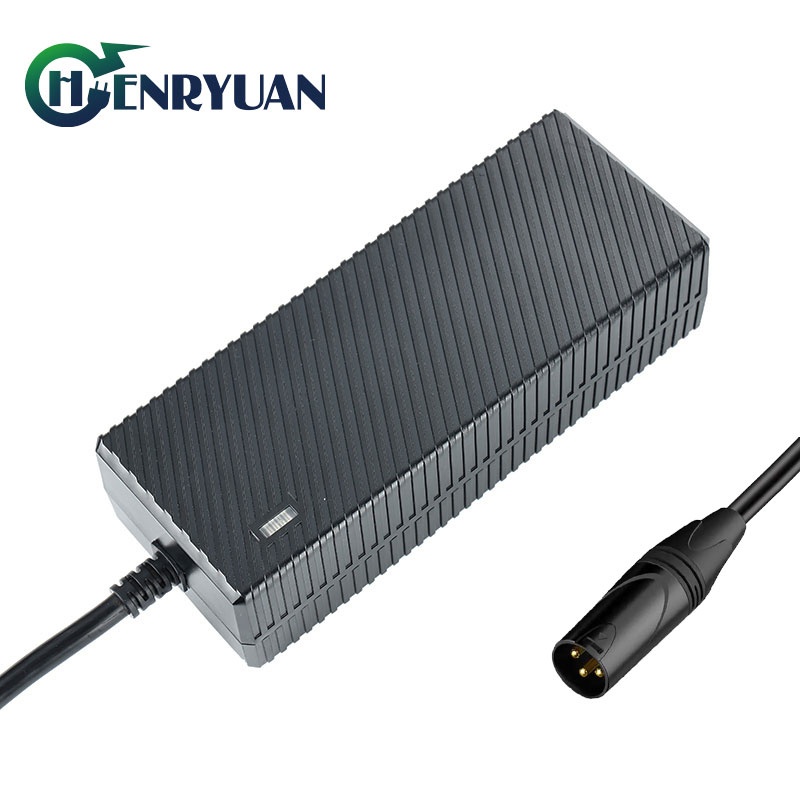

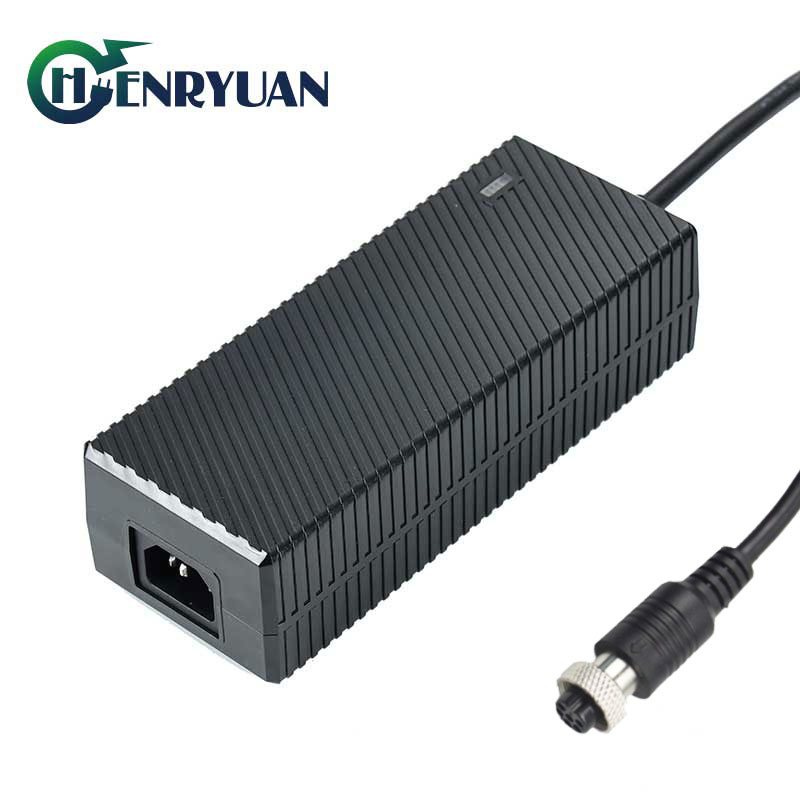

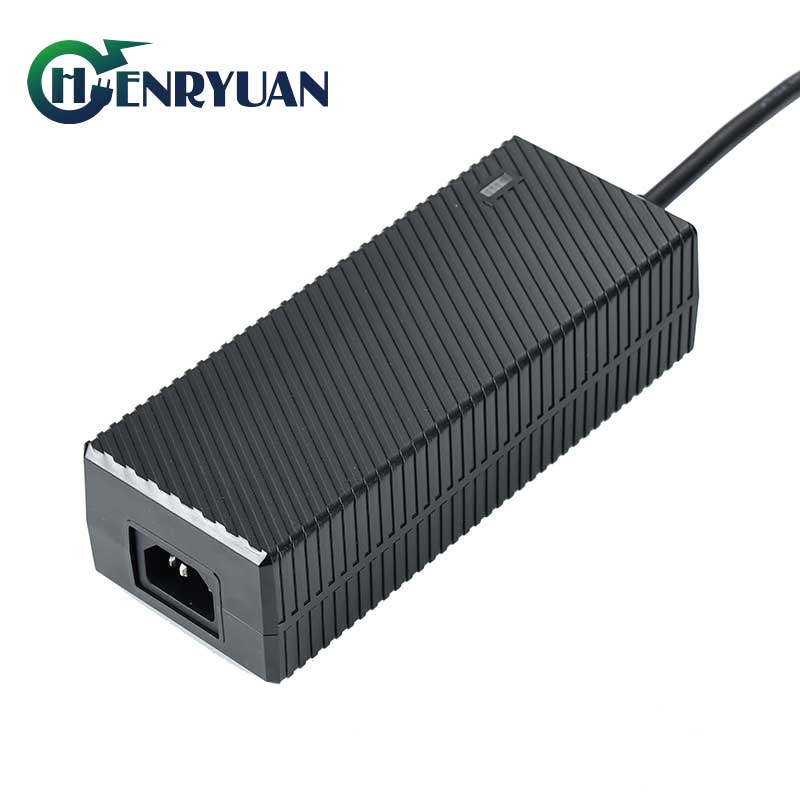

UL SAA CE PSE Factory Customized 42V 5A Li-ion Charger For 36V Battery

UL SAA CE PSE Factory Customized 42V 5A Li-ion Charger For 36V Battery

42V 5A Charger



Henryuan 42V 5A Li-ion Charger for 36V Battery | Quality and Safety Guaranteed | UL, cUL, CE, PSE, SAA, UKCA, CCC

Factory Customized 42V 5A charger for 10S 36V Lithium-ion Battery Packs

Introducing Henryuan advanced 42V 5A lithium battery charger, a top-level solution designed specifically for 10S 36V lithium ion battery packs. Engineered with cutting-edge technology and high-quality components, this charger ensures both safety and rapid charging, making it ideal for electric scooters and various other applications.

Key Product Highlights:

Safety Certifications:

  • CB, UL, ETL, cUL, FCC, CE EMC, LVD, UKCA, PSE, SAA, KC, CCC.

Customized Charging Options:

  • Tailored voltage, current, and DC output plugs to suit a variety of 36V lithium battery packs.

Input Specifications:

  • Voltage: 90Vac-264Vac (Rated: 100Vac-240Vac)
  • Frequency: 50/60Hz
  • Current: 3A (Inrush Current: 60A)
  • AC Scokets:
2-pin IEC320-C8
3-pin IEC320-C6, IEC320-C14
All In One type

Output Features:

LED Indicator:

Dual color LED displays charging status:
  • Red: charging.
  • Green: for fully charged.

Charging Stages:

  • Constant Current (5A) , voltage 25V to 42V. red LED.
  • Constant Voltage (42V), current 5A to 0.5A. red LED.
  • Trickle current, 0.5A to 0, Fully charging, green LED.

Output

Charging Stage

LED Indicator

Current

Voltage

5A

25V-42V

Constant Current

RED

5A->0.5A

42V

Constant Voltage

RED

0.5A->0

42V

Trickle Current

GREEN
LED turn to green when fully charge battery packs

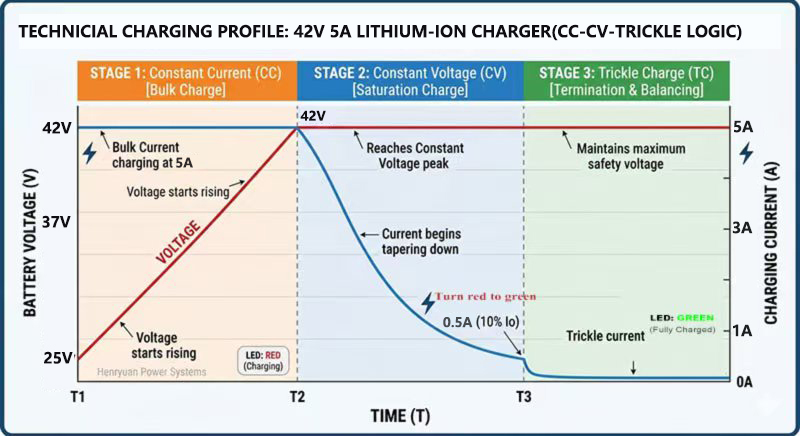

Charging Curve:

Specially designed for reliable 42V 5A charging for 10S 36V lithium-ion battery packs.

electric scooter charger 36V

Protection Mechanisms:

  • Over current protection
  • Over voltage protection
  • Short circuit protection
  • and Reverse polarity protection.

Quality Assurance:

  • Sales Engineers with over a decade of expertise.
  • Rigorous material selection and incoming inspection processes.
  • Experienced engineers for over 20 years in material solutions design.
  • Skilled production staff and advanced testing equipment.
  • 100% aging testing process, ensuring reliability.
  • Comprehensive after-sales system for prompt issue resolution within 48 hours.

About Henryuan Group

With over 13 years of experience in production and R&D of lithium battery chargers, Henryuan Group is a leading brand in the lithium battery charger industry. Our 42V 5A lithium ion battery chargers are recognized globally for their superior performance and safety, meeting diverse customer needs across multiple regions. Whether you require a standard product or a customized solution, Henryuan's experienced engineers are committed to delivering satisfaction.

More 42V Lithium Battery Chargers:

Henryuan 42V lithium chargers support reange 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A, 6A, 7A, 8A, 9A, 10A.

Contact Us:

For safe, reliable, and efficient 42V 5A charging for 10S 36V lithium battery pack, trust Henryuan range of 42V 5A chargers, please contact our experienced sales team
