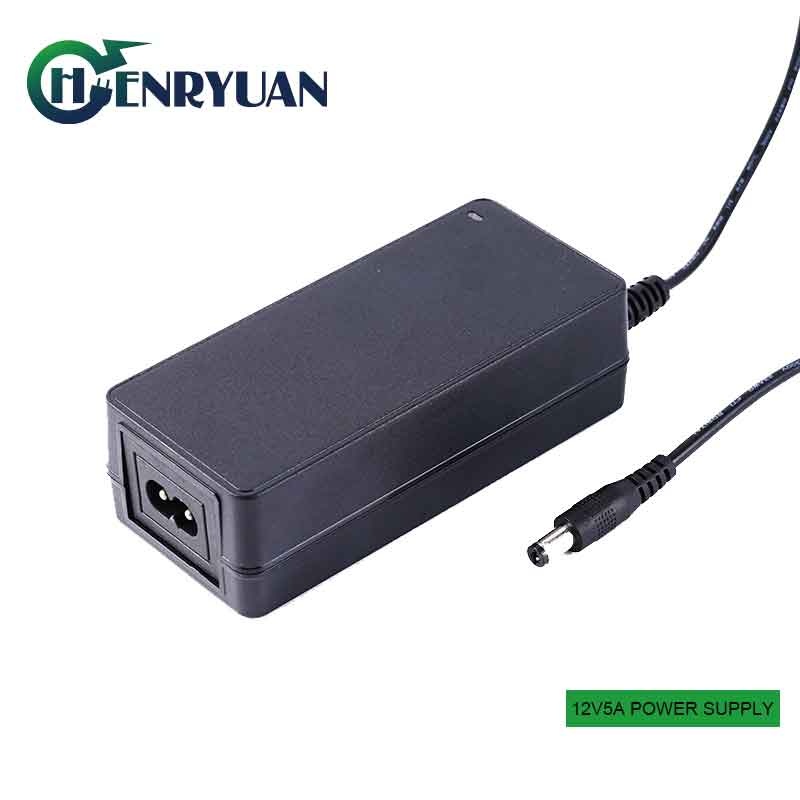

Henryuan 60W/12V/5A Switching Power Supply: Ultra-Low Ripple & Global Compliance

Henryuan 12V 5A Switching Power Supply is an advanced, high-efficiency 60W solution engineered for sensitive electronic applications requiring stable and clean power. Our design emphasizes superior Electromagnetic Compatibility (EMI), high efficiency and ultra-low ripple (low ripple), making it ideal for noise-sensitive devices. Full compliance with over 10 international safety standards (UL/ETL/cUL/FCC/CE/UKCA/SAA/PSE/GS/CCC etc.) guarantees safe deployment across global markets.

Key Technical Specifications

Global Safety & Standards Compliance

Our 12V 5A adapter is one of the most widely certificated switching power supplies in class, meeting standards for North America, Europe and Asia-Pacific:

• North America: UL, cUL, FCC.

• Europe/UK: CE EMC, LVD, UKCA, GS.

• Asica-Pacific: PSE(Japan), SAA and New Zealand(SAA), China(CCC).

Applications
Henryuan12V 5A power adapter is engineered to perform reliably in systems where power quality is paramount:
LED Lighting Systems: Providing low-ripple power for flicker-free operation.
IP Security Cameras: Ensuring stable voltage for continuous surveillance and data integrity.
Medical & Water Purifier Equipment: Where stability and robust protection are non-negotiable.
Portable Refrigerators & Battery Charging Stations: Reliable power for mobile and charging applications.

Henryuan Quality Assurance: 13+ Years of Manufacturing Excellence
As a leading supplier with 13+ years of R&D experience in switching power supplies, our focus is on quantifiable reliability:

• 100% Aging Test: Every single 60W 12V adapter undergoes a rigorous 4-hour full-load aging test to guarantee long-term operational stability.

• Expert R&D: Our 20+ years experienced engineering team ensures advanced circuit design and robust material selection.

• B2B Support: Comprehensive OEM/ODM flexibility and a 48-hour resolution system for after-sales support.

Explore Our Range: We offer a versatile 12V adapter range from 0.5A up to 15A.
For a safe, reliable, and globally compliant 12V5A switching power solution, contact Henryuan's sales engineers today.

Related Keywords:

• 12V 5A Power Adapter
• 60W Switching Power Supply

• UL Listed 12V 5A Adapter

• Low Ripple Power Supply

• AC DC Adapter 12V 5A

• Global Certified Power Supply

• 12V 5A LED Adapter

• 12V 5A Switching Power Supply

Q & A

Q: Can this 12V 5A power supply handle a continuous 5A load safely?

A: Yes. This 60W adapter is fully rated for continuous duty at 5 Amps under standard operating temperatures.

Q: At what current does the Over-Current Protection (OCP) trip on this adapter?

A: To accommodate transient startup currents from devices like motors or LED arrays while preventing damage, the hardware-driven Over-Current Protection (OCP) is set to approximately 1.3 times the rated current. This means the protective foldback current limit safely triggers when the load spike reaches around 6.5A, instantly safeguarding the PCBA from overheating. The overcurrent point can be adjusted according to the customer's specific requirements.

Q: Will a 12V 5A adapter damage a device that only requires 12V 1A or 2A?

A: No, absolutely not. Voltage is pushed by the adapter, but current (Amperage) is drawn by the device. As long as the voltage matches perfectly at 12V, a 5A adapter can safely power any device requiring 5 Amps or less (e.g., 1A, 2.1A, 3A). The device will only pull its required current, allowing the power supply to run cooler and last longer.

Q: What is the benefit of a "Pure Hardware Analog" design over digitally controlled adapters?

A: Many budget-tier adapters use cheap digital microcontrollers that emit severe high-frequency electromagnetic interference (EMI) and excessive voltage ripple, causing wavy lines on CCTV cameras or flickering LEDs. Henryuan utilizes a pure hardware analog closed-loop topology. This guarantees an ultra-low ripple floor and zero clock-cycle noise, providing perfectly clean DC power for sensitive sensors and audio-visual gear.

Q: How does Henryuan ensure quality consistency for bulk B2B procurement?

A: To eliminate field failures and pass strict corporate QA audits, Henryuan enforces a strict "Frozen BOM" (Bill of Materials) policy. Once your engineering team approves our evaluation samples, the internal component registry is permanently locked. We guarantee 100% component and semiconductor consistency across all future production lots—meaning zero unannounced substitutions.

Q: Is this 12V 5A adapter certified for worldwide distribution?

A: Yes, fully certified. Featuring a universal wide input (90V–264V AC), this single SKU carries active, traceable safety listings from top global testing laboratories. It is fully compliant with UL/cUL and FCC (North America), TÜV/GS and CE (Europe), UKCA (United Kingdom), SAA (Australia/New Zealand), and PSE (Japan) for friction-free global export.
