Products >> Switching Power Supply >>

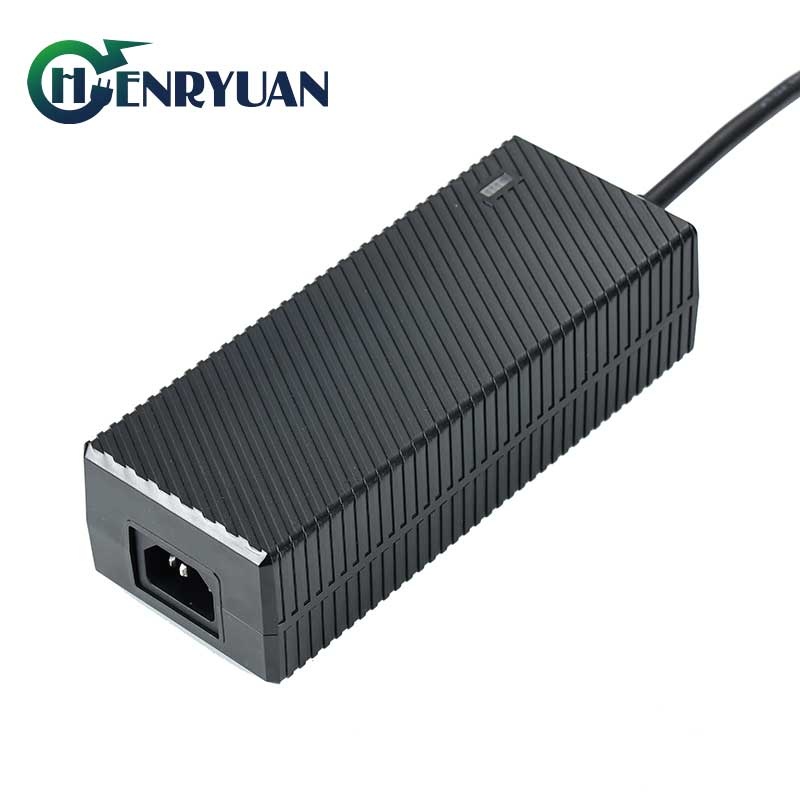

UL cUL FCC CE EMC LVD SAA PSE approved 120W 24V 5A AC DC switching power supply adapter
- Product No.：HRY2405000
Premium Quality: Henryuan 24V 5A High-Performance Power Adapter
Henryuan designs its 120W 24V 5A AC-DC switching power adapters specifically for the mid-to-high-end market, emphasizing superior performance and uncompromising safety. Leveraging over 13 years of specialized R&D and manufacturing expertise, Henryuan has established itself as a leading supplier of power solutions globally. This adapter is renowned for its stable output, low ripple, and exceptional Electromagnetic Interference (EMI) performance.
10+ Global Safety Certifications for Unrestricted Market Access
This 24V 5A adapter carries a full suite of stringent international certifications, ensuring effortless compliance and distribution across major markets: North America: UL, cUL, ETL, FCC Europe/UK: CE, UKCA (EMC, LVD Directives) Asia/Oceania: SAA, PSE, KC, CCC Applicable Standards: Compliant with the latest standards, including IEC 62368,IEC 60950,IEC 61558, and IEC 60335.
Superior Design and Performance Specs
We utilize advanced power scheme design and high-quality components to guarantee that the 24V 5A power adapter maintains stability, low noise (ripple), and robustness under various demanding operating conditions.
|
Specification |
Technical Parameter |
Details |
|
Rated Output |
24V Regulated (±5%) up to 5A (120W Max) DC |
Precision-regulated 24V constant voltage, 0.0A−5.0A current range. |
|
Efficiency |
DOE Level VI (Latest Energy Star Rating),Erp |
|
|
Universal Input |
Wide global input voltage 90Vac−264Vac |
100Vac−240Vac Rated, 47Hz−63Hz frequency. |
|
AC Inlet Options |
IEC320−C6,IEC320−C8,IEC320−C14 |
Multiple AC inlet choices |
Comprehensive Safety Features
Over Current Protection (OCP) : Prevents output current from exceeding safe limits.
Over Voltage Protection (OVP) : Caps the output voltage to safeguard sensitive downstream devices.
Short Circuit Protection (SCP) : Immediate shutdown output upon detecting a short.
Hiccup Protection: Automatic restart once the fault is eliminated.
Key Applications
Due to its high reliability and safety profile, Henryuan 24V 5A power adapter is the go-to choice for sophisticated, high-demand professional applications:
- Lighting Systems: High-quality LED power supplies
- Health & Wellness: Massage and therapeutic equipment power supplies
- Consumer Electronics: Portable refrigerators, camera and surveillance systems
- Industrial Use: Water purification and industrial monitoring equipment
Rigorous Quality Assurance Process
Henryuan employs stringent quality control systems throughout the entire manufacturing process: from rigorous raw material supplier selection and incoming material inspection to circuit design by engineers with over 20 years of experience. All units undergo a 100% full-load aging test process lasting up to 4 hours. We back this quality with a comprehensive after-sales system, guaranteeing analysis, feedback, and resolution within 48 hours.
Contact Us
Our 24V power adapter series offers a full range of outputs, from 0.5A up to 15A. If you are searching for a safe, reliable, and globally certified 24V 5A power adapter solution, reach out to Henryuan’s experienced sales engineers today.
Common 24V AC DC Power Unit Models for Projects
|
Model |
Input |
Output(Voltage/Current) |
Output(Power) |
|
|
HRY2400300 |
100-240V ac, 50/60Hz |
24V 0.3A |
7.2W |
|
|
HRY2400400 |
24V 0.4A |
9.6W |
||
|
HRY2400500 |
24V 0.5A |
12.0W |
||
|
HRY2400600 |
24V 0.6A |
14.4W |
||
|
HRY2400700 |
24V 0.7A |
16.8W |
||
|
HRY2400800 |
24V 0.8A |
19.2W |
||
|
HRY2400900 |
24V 0.9A |
21.6W |
||
|
HRY2401000 |
24V 1.0A |
24.0W |
||
|
HRY2402400 |
24V 1.2A |
28.8W |
||
|
HRY2401500 |
24V 1.5A |
36.0W |
||
|
HRY2401800 |
24V 1.8A |
43.2W |
||
|
HRY2402000 |
24V 2.0A |
48.0W |
||
|
HRY2402500 |
24V 2.5A |
60.0W |
||
|
HRY2403000 |
24V 3.0A |
72.0W |
||
|
HRY2404000 |
24V 4.0A |
96.0W |
||
|
HRY2405000 |
24V 5.0A |
120.0W |
||
|
HRY2406000 |
24V 6.0A |
144.0W |
||
|
HRY2406500 |
24V 6.5A |
156.0W |
||
|
HRY2407000 |
24V 7.0A |
168.0W |
||
|
HRY2408000 |
24V 8.0A |
192.0W |
||
|
HRY2408330 |
24V 8.33A |
199.92W |
||
|
HRY24010000 |
24V 10.0A |
240.0W |
||
|
HRY24015000 |
24V 15.0A |
360.0W |
