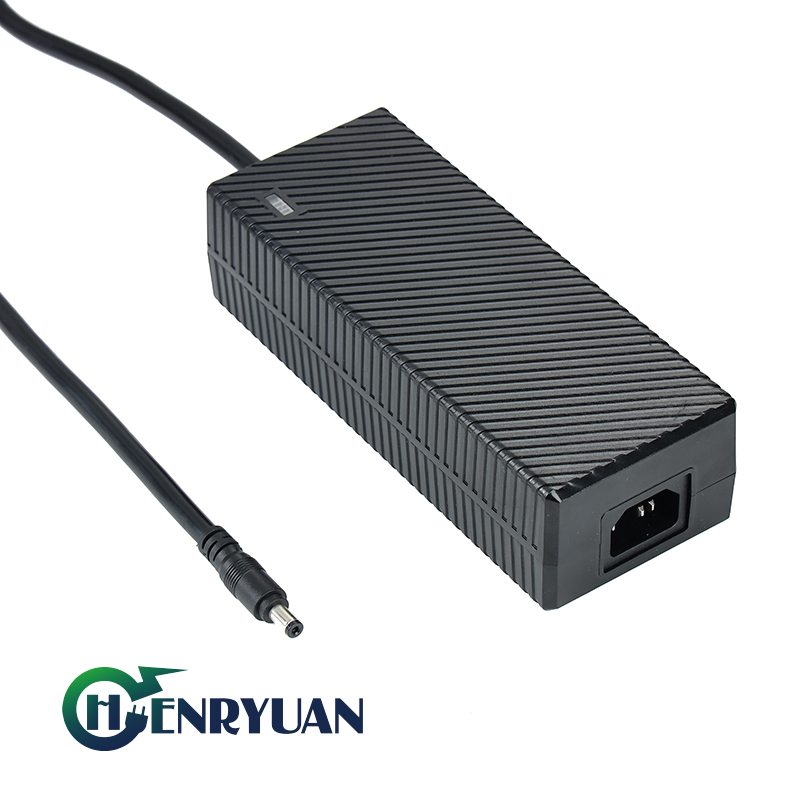

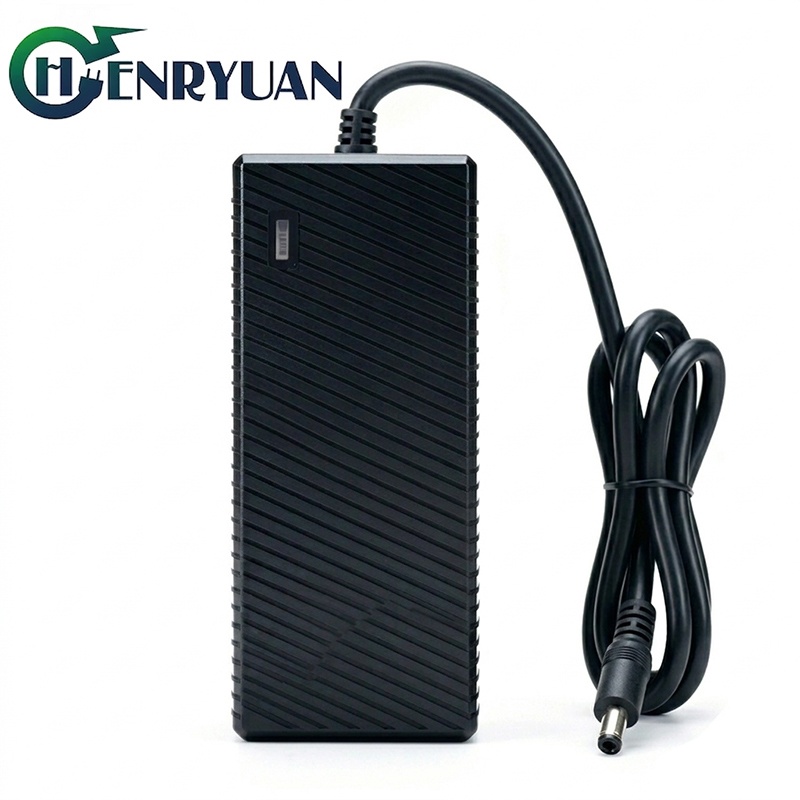

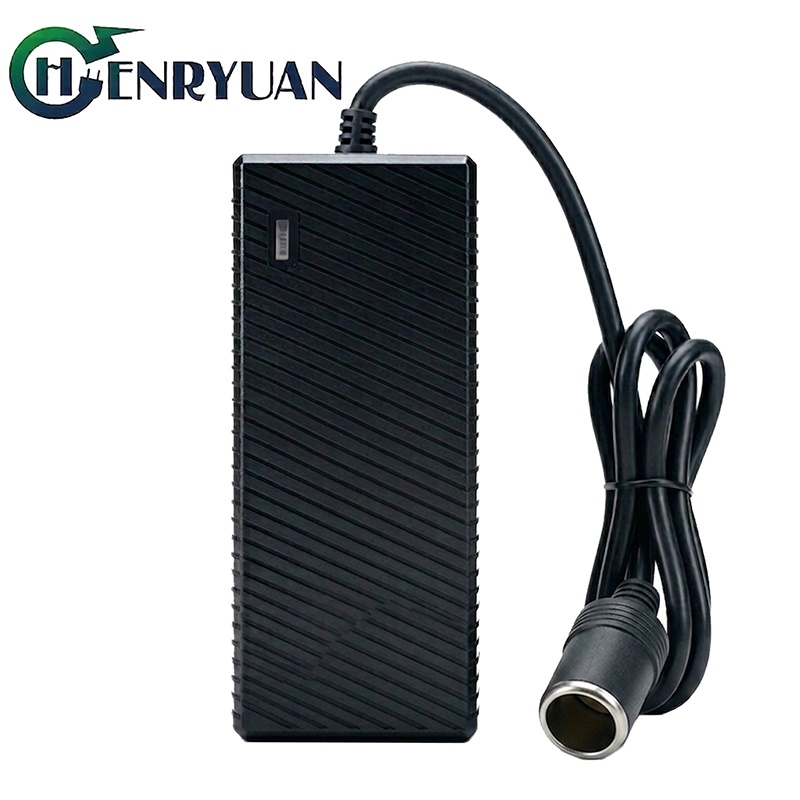

100-240V AC Input to switching Power Supply 240W 24V 10A AC DC Power Adapter

Product Overview:

Henryuan 240W 24V 10A AC/DC Adapter Switching Power Supply stands out with its robust design and exceptional performance. Engineered with advanced power supply schemes and high-quality components, it ensures safe, steady, and reliable power for a range of applications. Certified by leading safety standards including UL, ETL, cUL, FCC, PSE, CE, UKCA and SAA, this power supply is a trusted solution for professional use.

Target Applications for Henryuan 24V 10A 240W Power Supplies

• Commercial LED Lighting Power Supply: Serving as an elite LED driver, this 240W power unit provides precise voltage regulation for high-density LED arrays, dynamic signage, and commercial lighting. It ensures zero-flicker performance to protect high-end videography and broadcast media environments.
• Advanced Security and Control Systems Power Supply: Engineered as a robust, centralized 24V 10A power supply for high-density surveillance setups, this unit supports networked CCTV, NVR systems, and motorized PTZ cameras, providing reliable, transient-handling power for critical security infrastructure.
• Portable Refrigerator Power Supply: Henryuan 24V 10A power adapter makes sure your portable refrigeration units running efficiently.
• Massage Equipment Power Supply: Delivers reliable 240W power for massage chairs and other equipment.
• Water Purifier Power Supply: Supports the efficient constant voltage 24V power for water purification systems.

Safety Certifications Of 240-Watt Power Unit:

• The Henryuan 240W 24V 10A Power Supply is equipped with an array of safety certifications, ensuring compliance with international standards:
• UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

Technical Input & Output Specifications (240W)

• Input Voltage Range: 90Vac-264Vac
• Rated Input Voltage: 100Vac-240Vac
• Input Frequency: 47Hz-63Hz
• Input Current: 5A
• Inrush Current: 60A
• Rated Output: 240W, 24V, 10A
• Output Voltage Range: 22.8V - 25.2V (24V ± 5%)
• Output Current Range: 0.0A - 10A
• LED Indicator: Provides clear status indication

Industrial Protection and Safety Features

To ensure the utmost safety and reliability, this power supply includes several protective mechanisms:

• Over Current Protection: Prevents damage from excessive current.
• Over Voltage Protection: Guards against voltage spikes.
• Short Circuit Protection: Safeguards against short circuits.
• Hiccup Protection: Ensures continuous operation during fault conditions removed.

Quality Assurance From Henryuan Group:

Henryuan Group guarantees top-notch quality and performance with stringent quality control measures:

• 1. Experienced Sales Engineers: Over a decade of expertise to meet customer needs.
• 2. Rigorous Supplier Selection: Strict criteria for raw material sourcing.
• 3. Thorough Incoming Inspection: Ensures high-quality materials.
• 4. Expert Engineering Team: Over 20 years in material solutions design.
• 5. Skilled Production Staff: Supported by advanced testing equipment.
• 6. Comprehensive Aging Testing: Up to 4 hours of full-load aging tests.
• 7. Responsive After-Sales Support: Analysis, feedback, and resolution within 48 hours.

About Henryuan Group:

With more than 13 years in the production and R&D of switching power supplies, Henryuan Group is a leading supplier in this industry. Our regulated 24 Volt external power bricks is highly regarded for its quality and reliability, serving diverse markets across the Americas, Europe, Asia, and beyond. Our products' excellent EMI performance and low ripple make them ideal for various applications. Trust Henryuan to deliver power solutions that meet your current and future needs.

More Switching Power Supply Links:

• Explore More Switching Power Supplies.

Explore other models of 24V power adapters, such as 24V 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A and 15A. For safe, reliable, and efficient power solutions, reach out to Henryuan's sales engineers today.

Customer Five-star reviews:

Technical Q&A: 24V 10A Fanless Power Solutions

Q: Can I use this 24V 10A power supply on a device that only requires 24V 4A or 5A?

A: Yes, absolutely. This is one of the most common electrical misconceptions on the web. Voltage is a constant push managed by the adapter, whereas amperage is an on-demand pull controlled entirely by the connected device. A 24V 10A (240W) power supply safely accommodates any 24V device requiring 10 Amps or less (such as 3A, 5A, or 8A). The device will only draw its required current, allowing the adapter to operate well below its thermal limit, which drastically extends its operating lifespan.

Q: Why is a 240W fanless power supply preferred over one with an active cooling fan?

A: Mechanical cooling fans are the primary point of failure in high-power switching supplies; they eventually seize due to dust accumulation, bearing wear, or localized humidity. Henryuan has engineered this 24V 10A adapter using a fanless, completely natural cooling system. By sourcing premium low-Rds(on) switching MOSFETs and high-saturation magnetic cores, the unit limits thermal dissipation efficiently through its heavy-duty housing. This design eliminates acoustic noise and prevents the internal circuitry from sucking in shop-floor contaminants, drastically raising the Mean Time Between Failures (MTBF).

Q: How does this power adapter handle brief inductive startup surges or inrush currents?

A: High-power 24V systems—such as industrial DC motors, CNC automation rigs, multi-axis 3D printers, and extensive LED matrices—frequently draw massive transient current spikes upon initial startup. To prevent nuisance tripping or boot-looping, the built-in hardware over-current protection (OCP) is engineered with a built-in safety headroom buffer. The OCP threshold is factory-tuned to approximately 1.3 times the rated current (about 13A,cabn be customized). It will only trip into a safe foldback current-limiting state if a sustained short-circuit or catastrophic downstream component failure occurs.

Q: What global safety certifications does this 240W power supply carry for international distribution?

• North America: UL / cUL Safety Listing, FCC Part 15 Class B Electromagnetic Compatibility.European Union & UK: TÜV/GS, CE Mark, UKCA Certification, alongside RoHS and REACH environmental declarations.Asia-Pacific: SAA Certification (Australia/New Zealand) and PSE Circle Certification (Japan), CCC(China).

Common 24VDC 10 Amp switching transformer Models for Projects
