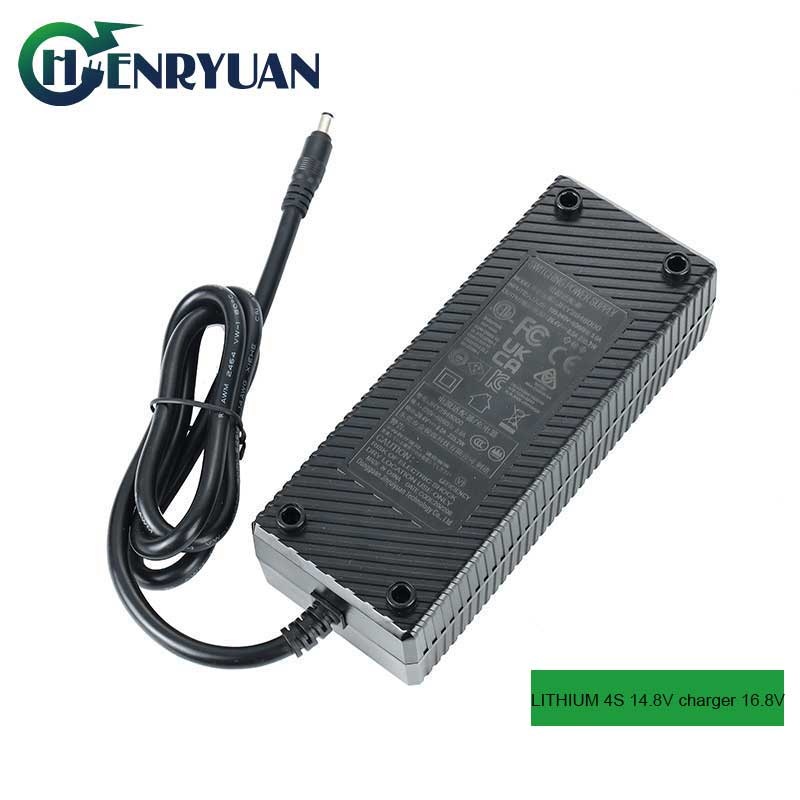

16.8V Lithium-ion Battery Charger | 8A & 10A Models
SAA, UL, PSE, CE, UKCA approved lithium battery chargers designed for 14.8V packs. Safe, efficient, and ideal for robotics, drones, LED lights, and more.
Product Overview
The Henryuan 16.8V lithium-ion battery charger delivers fast, safe, and reliable charging for 14.8V (4S) lithium battery packs. Available in 8A and 10A outputs, it is widely used for robots, drones, electric lawn mowers, portable power stations, and LED studio lighting. Advanced charging algorithms and high-quality components ensure stable performance and long battery life.
Safety Certifications
- UL, ETL, cUL, FCC
- CE, EMC, LVD, UKCA
- PSE, SAA, KC, CCC
These certifications guarantee global safety compliance and compatibility across multiple regions.
Input Specifications
- Voltage: 90–264Vac (rated 100–240Vac)
- Frequency: 47–63Hz
- Current: 3A
- Inrush Current: 60A
Output Specifications
The charger features a dual-color LED indicator for charging status:
- Red LED: Charging in progress
- Green LED: Fully charged

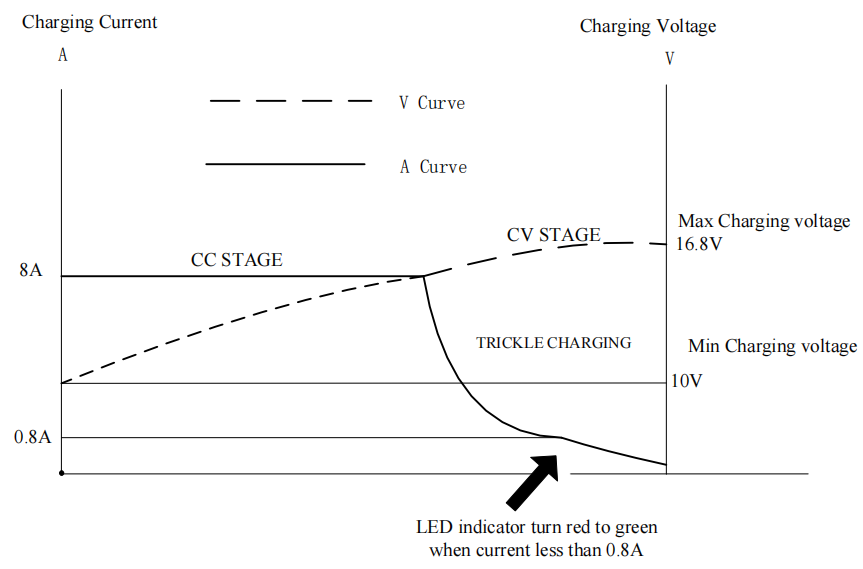

16.8V 8A Charger Charging Stages
| Charging Stage | Output Current | Output Voltage | LED Indicator |
|---|---|---|---|
| Constant Current | 8A | 10V–16.8V | Red |
| Constant Voltage | 8A → 0.8A | 16.8V | Red |
| Trickle Charging | 0.8A → 0 | 16.8V | Green |
16.8V 10A Charger Charging Stages
| Charging Stage | Output Current | Output Voltage | LED Indicator |
|---|---|---|---|
| Constant Current | 10A | 10V–16.8V | Red |
| Constant Voltage | 10A → 1A | 16.8V | Red |
| Trickle Charging | 1A → 0 | 16.8V | Green |
The optimized 3 stage 16.8V charging solutions ensure faster charging while protecting the battery from over-stress, extending overall battery lifespan.
Protection Features
- Overcurrent protection
- Overvoltage protection
- Short circuit protection
- Reverse polarity protection
Quality Assurance
- Sales engineers with over 13 years of expertise
- Strict supplier selection and raw material inspection
- 20+ years of engineering experience in power solutions
- Skilled production staff and advanced testing equipment
- 100% full-load aging test up to 4 hours
- Comprehensive after-sales system with 48-hour resolution
Company Profile
Henryuan Group has more than 13 years of R&D and manufacturing experience in lithium battery chargers. Our 16.8V 8A and 10A chargers are exported globally, including to the Americas, Europe, the UK, Australia, Japan, South Korea, and beyond. Known for excellent EMI performance, safety, and reliability, Henryuan chargers are trusted by customers worldwide and can be tailored for OEM/ODM projects.
Available Models
In addition to 16.8V 8A and 10A chargers, Henryuan offers models with various output currents: 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 6A, 7A, 9A, 15A and more.
Related 16.8V Lithium Charger
Explore more 16.8V lithium battery chargers»
Applications- Robot battery charger
- Drone charger
- Electric mower charger
- Portable power station charger
- LED studio light charger
- Other 14.8V lithium-powered devices
Contact Us
If you are searching for a safe, reliable, and efficient 16.8V lithium battery charger (8A or 10A), contact Henryuan’s expert sales engineers today for technical consultation and custom solutions.
