Products >> LiFePO4 Battery Charger >> 29.2V LiFePO4 Battery Charger

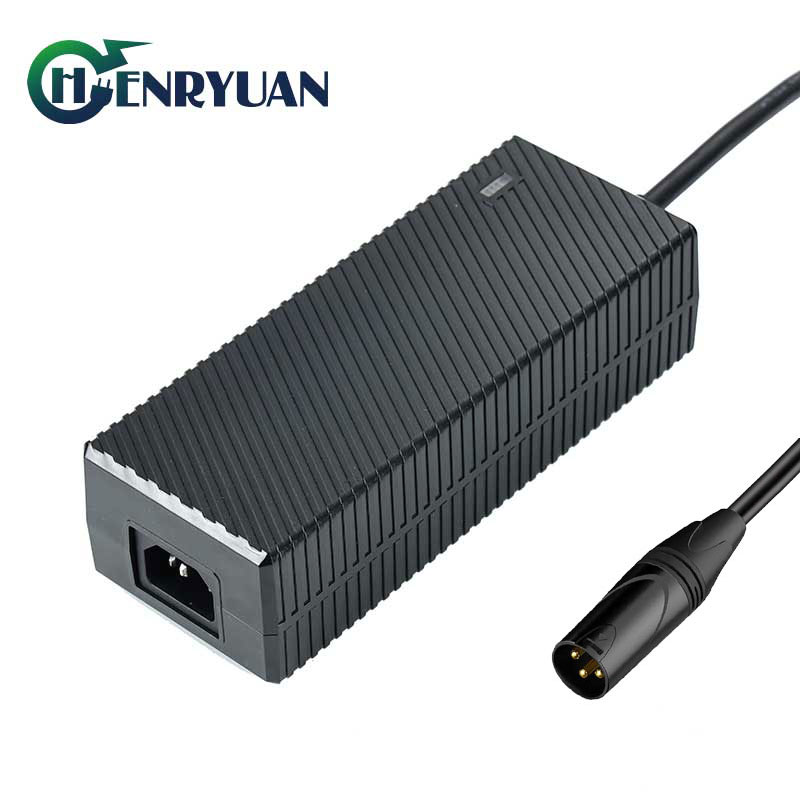

  • LiFePO4 battery charger 24V output 29.2 volt 5A 7A LiFePO4 charger
LiFePO4 battery charger 24V output 29.2 volt 5A 7A LiFePO4 charger

LiFePO4 battery charger 24V output 29.2 volt 5A 7A LiFePO4 charger

24v lifepo4 charger


Product Description:

Henryuan's LiFePO4 battery charger boasts worldwide safety certifications including UL, cUL, FCC, PSE, SAA, CE EMC, LVD, KC, UKCA, and CCC. This high-quality 24V LiFePO4 battery charger is designed for 8s 24V LiFePO4 battery packs, offering advanced charging schemes with multiple protection mechanisms for safer and faster charging.

Key Features:
  1.Safety Certifications: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.

  • Input Voltage: 90-264Vac
  • Rated Input Voltage: 100-240Vac
  • Input Frequency: 47-63Hz
  • Input Current: 3A
  • Inrush Current: 60A
  • LiFePO4 battery charger with 24V output, delivering 29.2V at 2A, 4A, 5A or 7A.
  • LED dual-color indicator light displays charging status (red for charging, green when fully charged).
  • 29.2V 7A charger, 7A charger for 8s 24V LiFePO4 battery.
  4.Charging Status:
  • Charging: Constant current 7A, when battery voltage between 16V-29.2V (Red LED).
  • Fully Charged: Constant current 7A->0.7A, Output Voltage 29.2V (Red LED).
  • Trickle Charging: 0.7A->0, Output Voltage 29.2V (Green LED).


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 0.7A

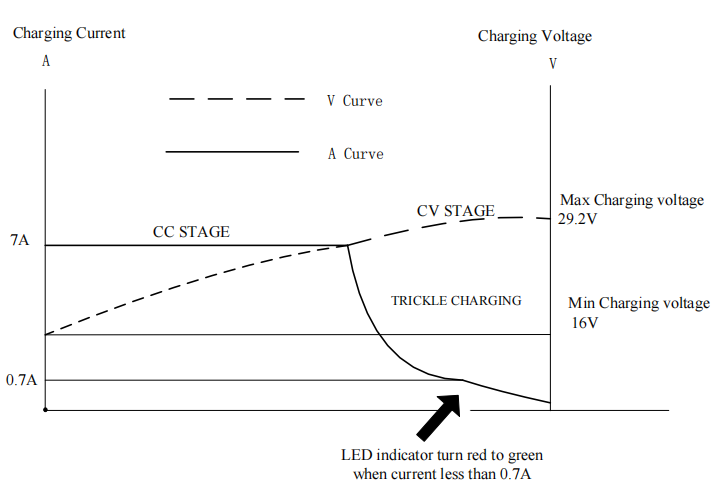

CHARGING Curve For 29.2V 7A LiFePO4 charger:
29.2V 7A lifepo4 charger

  6.Protection Features: Overcurrent protection, Overvoltage protection, Short circuit protection, Reverse polarity protection.

  • Experienced sales engineers.
  • Rigorous selection of raw material suppliers.
  • Strict incoming material inspection process.
  • Experienced engineers with over 20 years in material solutions design.
  • Skilled production staff and advanced testing equipment.
  • 100% aging testing process for up to 4 hours.
  • Comprehensive after-sales system with resolution within 48 hours.

Company Background:

Henryuan Group, with over 13 years of experience in production and R&D of 24V LiFePO4 chargers, is a trusted leader in the industry. Our 29.2V LiFePO4 chargers, known for superior performance and safety features, are exported worldwide, catering to diverse applications. For safe, reliable, and efficient 8s LiFePO4 battery chargers, contact Henryuan's sales engineers today.
