Products >> LiFePO4 Battery Charger >> 29.2V LiFePO4 Battery Charger

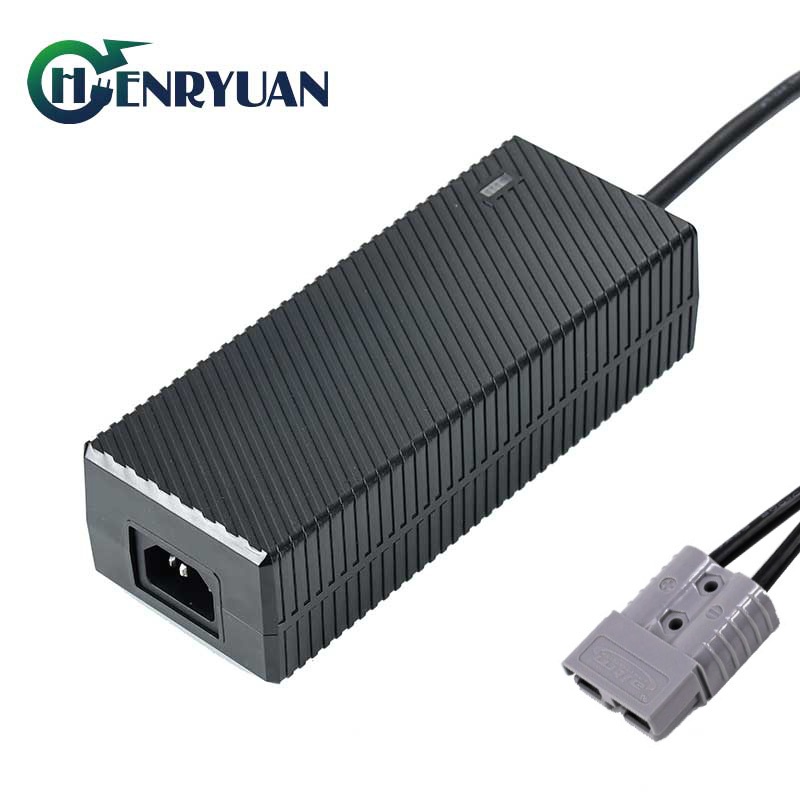

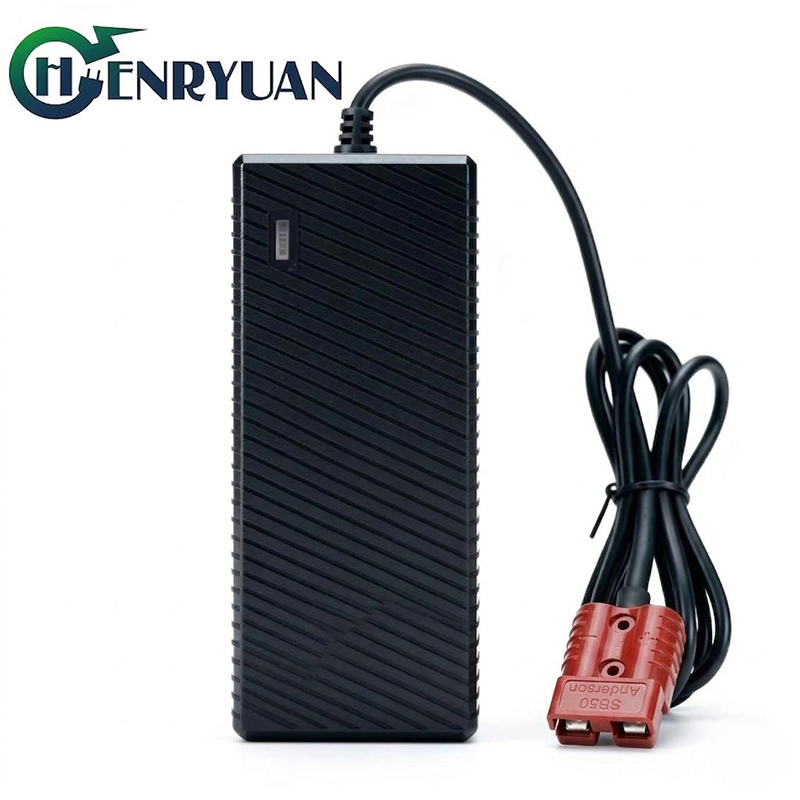

29.2V 10A Charger | Fast Charger For 8S 24V LiFePO4 Battery | Certificates Approved
Henryuan reliable 29.2V 10A LiFePO4 Battery Charger delivers exceptional charging performance for various 24V LiFePO4 battery applications. With UL, FCC, cUL, PSE, CE, EMC, LVD, SAA, and RoHS certifications, this charger adheres to the highest global safety standards, guaranteeing safe and efficient charging.
Key Applications:
- Electric Outboard Motors, Electric Wheelchairs
- Electric Bikes and Scooters, Studio LED Lights
- Communication Base Stations, Robots
- LED Lighting, Diving Equipment, and other 24V LiFePO4 battery powered equipments
Safety Certifications:
- International worldwide certificates
- UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC
Input Specifications:
- Voltage Range: 90Vac-264Vac
- Rated Voltage: 100Vac-240Vac
- Frequency: 47Hz-63Hz
- Current: 5A
- Inrush Current: 60A
Output Specifications:
- Model: 29.2V 10A LiFePO4 Battery Charger
- Power: 292W
- LED Indicator: Dual color (Red during charging, Green when fully charged)
|
Output |
Charging Stage |
LED Indicator |
|
|
Current |
Voltage |
||
|
10A |
16V-29.2V |
Constant Current |
Red(Charging) |
|
10A->1A |
29.2V |
Constant Voltage |
Red(Charging) |
|
1A->0 |
29.2V |
Trickle Current |
Green(Fully charge battery) |

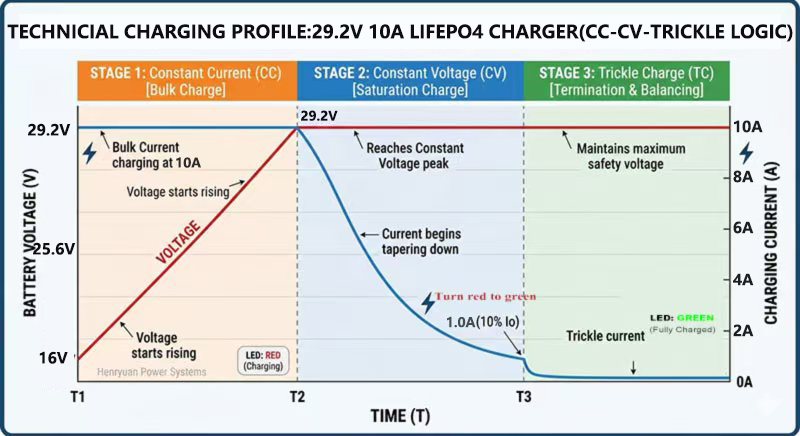

Intelligent Charging Stages(CC/CV/Trickle Charging):
Charging Curve:
The 29.2V 10A LiFePO4 battery charger maintains a reliable and efficient charging curve, preserving 24V LiFePO4 battery health.
Compact and Portable Design
- Its lightweight and compact design makes it easy to carry and store,but large power
- Dimensions: 176 x 80 x 47 MM
- Weight: 0.5kg
Protection Features:
- Overcurrent Protection
- Overvoltage Protection
- Short Circuit Protection
- Reverse Polarity Protection
Quality Assurance:
- Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
- Rigorous Material Selection: Only top-quality raw materials are used.
- Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
- Expert Engineers: More than 20 years of design experience.
- Skilled Production Team: Advanced production and testing equipment.
- Aging Testing: 100% aging testing process, up to 4 hours at full load.
- Comprehensive After-Sales Support: Feedback and resolution within 48 hours.
Professional Production Equipments
Henryuan Customer Five-star reviews:
Customer Case Sharing：

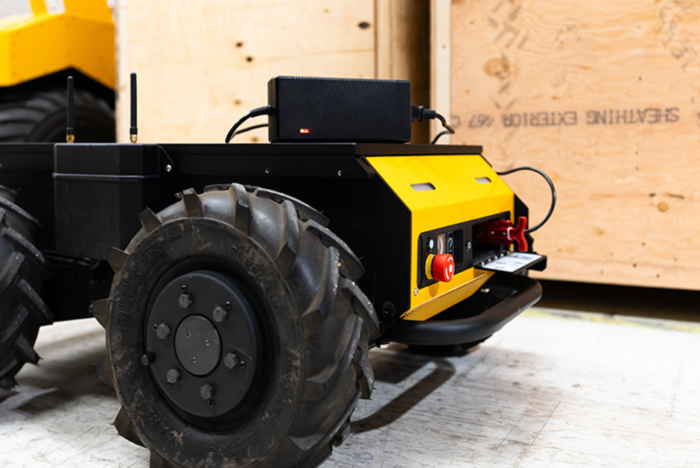

- Why Henryuan 24V Charger is Mission-Critical for Autonomous Robotics?
Henryuan’s 24V charging solutions are engineered to meet the non-negotiable demands of this sector. We understand that maximizing uptime is key. Our chargers feature precision CC/CV/Trickle algorithms that safely manage the high-cycle demands of Lithium/LiFePO4/Lead-acid robot batteries. Furthermore, reliable Protections(OCP, OVP, SCP etc.) essential to make sure charging safety.
By supplying clean, globally certified power (UL/CE/ETL/PSE/SAA/UKCA/CCC), Henryuan ensures your robotics fleet remains agile, safe, and ready for continuous deployment.
About Henryuan Group:
With over 13 years of experience in the production and R&D of 24V LiFePO4 battery chargers, Henryuan Group is a leading industry supplier. Our 29.2V 10A LiFePO4 battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
Henryuan 24V LiFePO4 Battery Charger Range:
- Explore our range of 24V LiFePO4 chargers, available in various models to meet your specific needs:
- - 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A.
More 29.2V LiFePO4 Battery Charger Links:
Contact Us:
For a safe, reliable, and efficient 29.2V 10A LiFePO4 battery charger, contact Henryuan's expert sales engineers today.
Keywords Related:
-
29.2V 10A LiFePO4 charger
-
29.2V 10A charger
-
24V LiFePO4 battery charger
-
29.2V 10A LiFePO4 battery charger
- 24V LiFePO4 battery charger factory
- Charger for 24V LiFePO4 battery
Q &A:
Q: Why is a 29.2V output mandatory for 8S LiFePO4 battery packs?
A: An 8S LiFePO4 configuration consists of 8* 3.2V cells in series. The precise charging voltage is 8 *3.65V =29.2V. Using this specific voltage ensures a 100% State of Charge (SoC) .
Q: What are the primary advantages of a 10A high-current output?
A: A 10A rapid-charge output is engineered for high-capacity banks (20Ah–100Ah+). It slashes downtime for industrial floor scrubbers, Intelligent Robots, AGVs, and electric golf carts, delivering a significantly faster turnaround than standard 2A or 5A units, which directly increases operational uptime.
Q: How does the fanless design improve reliability in industrial environments?
A: Henryuan’s fanless thermal architecture utilizes high-efficiency power conversion and an plastic heat-sink enclosure. By eliminating intake fans, the charger is fully sealed against dust, moisture, and debris. This leads to a much higher MTBF (Mean Time Between Failures) in harsh warehouse or maritime conditions.
Q: Which global safety certifications does the 29.2V 10A series carry?
A: To support international market, this series is fully certified with UL, cUL, ETL, CE, GS, UKCA, FCC, PSE, and SAA. It features an integrated protection suite—including Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Current Protection (OCP)—ensuring legal compliance and user safety worldwide.
Q: How does the 3-stage algorithm protect battery cycle life?
A: The 29.2V 10A LFP charger employs a professional CC-CV-Trickle (Constant Current - Constant Voltage - Trickle) logic. By precisely tapering the current as the pack reaches 29.2V, it prevents "voltage drift" and cell overheating. This precision can extend the total cycle life of your LiFePO4 investment by up to 20%.
