Best Seller High Quality AC DC 24V 10A LiFePO4 Battery Charger CE PSE UL

Product No.：HRY29210000
Online Inquiry

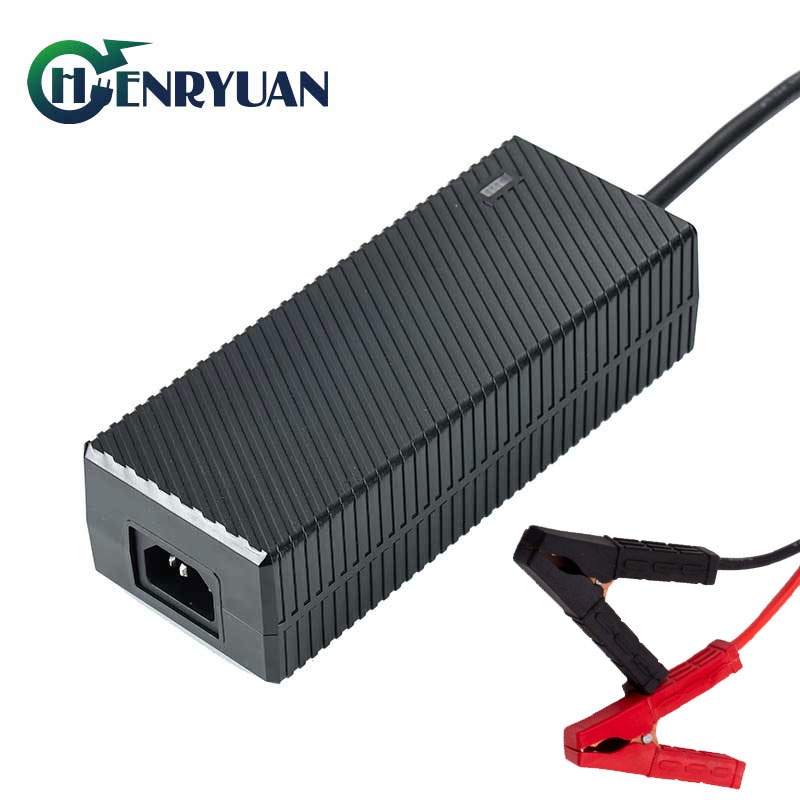

24V 10A Lithium Battery Charger

Product Title:
Henryuan High Quality 24V 10A Charger For 24V LiFePO4 LFP Battery

Product Description:
24V 10A LiFePO4 Battery Charger | 29.2V 10A LFP Battery Charger | CE, SAA, UKCA, UL, cUL, PSE Certificates

Henryuan 24V 10A LiFePO4 Battery Charger provides top charging performance for 8s 24V LiFePO4 battery powered devices. With safety certificates CB, CE, EMC, LVD, UL, cUL, PSE, SAA, and FCC, This charger meets the highest safety standards in the global market, ensuring safe and efficient charging.

Key Applications:

Electric Bikes and Scooters, Electric Outboard Motors.
Electric Wheelchairs, Robots.
Studio LED Lights, Communication Base Stations.
Diving Equipments and other 7S 24V lithium battery powered equipments.

Safety Certifications:

worldwide certificates
CB, PSE, CE, EMC, LVD, UL, ETL, cUL, FCC, UKCA, SAA, KC, CCC
Environmentally friendly materials, RoHS compliant.

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 5A
Inrush Current: 60A

Output Specifications:

Model: 24V 10A LiFePO4 Battery Charger(29.2V)

Power: 292W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
10A	16V-29.2V	Constant Current	RED
10A->1A	29.2V	Constant Voltage	RED
1A->0	29.2V	Trickle Current	GREEN LED turn red to green when fully charge battery packs

Charging Stages:

Constant Current 10A fast charging, LED shows red.

Constant Voltage 29.2V max, current decreases 10A to 1A, LED shows red.

Trickle Current 1A to 0, voltage 29.2V max, LED shows green.

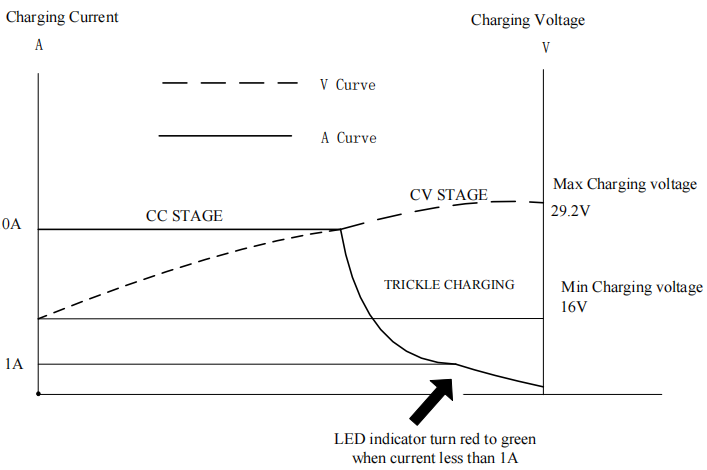

Charging Curve:
Henryuan 24V 10A LiFePO4 chargers maintain a reliable and efficient charging curve, protect battery life.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store, but powerful
Dimensions: 176 x 80 x 47 MM
Weight: 0.5kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 24V lifepo4 battery chargers, Henryuan Group is a leading industry supplier. Our 24V 10A lifepo4 battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
