Products >> LiFePO4 Battery Charger >> 29.2V LiFePO4 Battery Charger

120W 24V LiFePO4 charger 29.2V LiFePO4 battery charger 4A

Product No.：HRY2924000
Online Inquiry

24V 4A lifepo4 charger

Product Description:

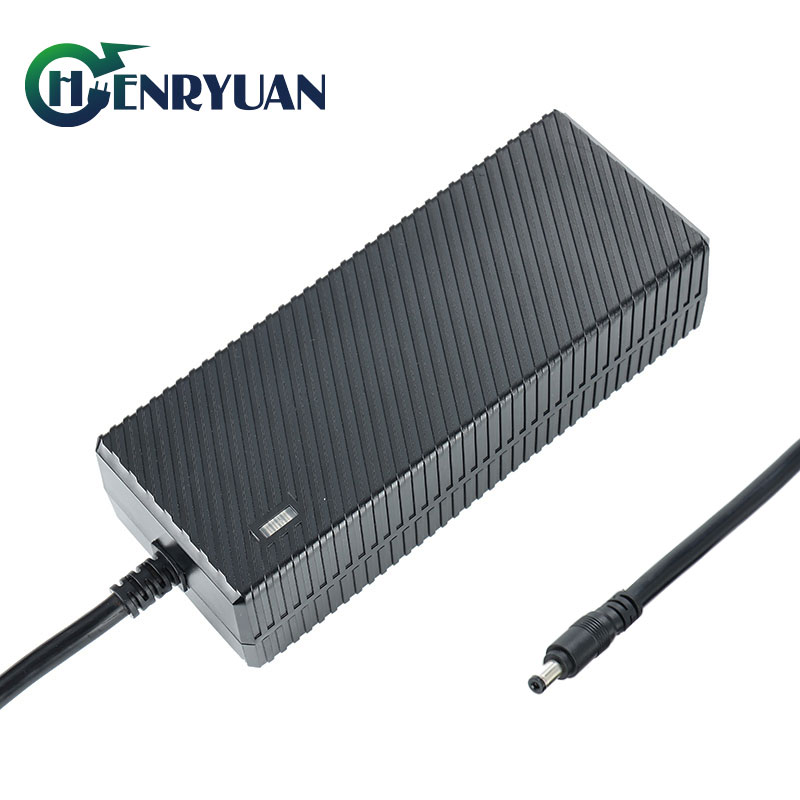

Henryuan's 120W 24V 4A LiFePO4 battery charger delivers exceptional performance and reliability, designed specifically for 8s 24V LiFePO4 batteries. Our charger features an advanced charging scheme with multiple protection mechanisms, ensuring faster and safer charging for various applications.

Key Features:

1. Safety Certifications:

UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 1.3A
Inrush Current: 60A
AC Inlet: IEC320-C6, IEC320-C8, IEC320-C14

3. Output Specifications:

Output Voltage: 29.2V
Current: 4A
Charging Status Indicator: Dual-color LED (Red during charging, Green when fully charged)

4. Charging Process:

Constant Current (4A): Voltage range 16V-29.2V (Red LED)
Constant Voltage: 29.2V (Red LED when current drops from 4A to 0.4A)
Trickle Charging: 29.2V (Green LED when current drops below 0.4A)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
4A	16V-29.2V	Constant Current	RED
4A->0.4A	29.2V	Constant Voltage	RED
0.4A->0	29.2V	Trickle Current	GREEN LED turn red to green when charging current below 0.4A

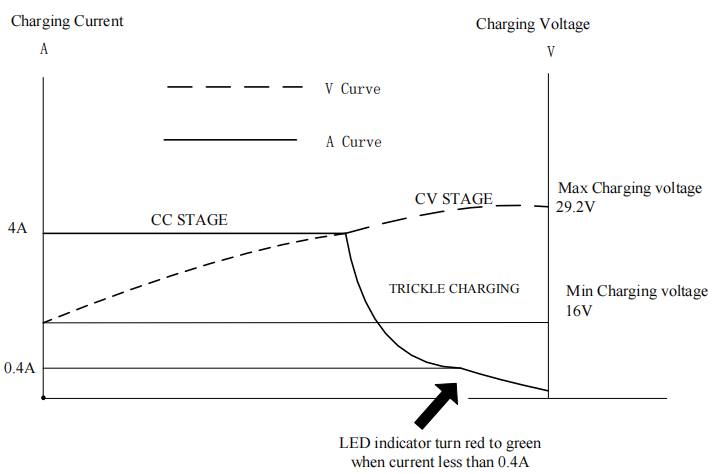

5. Detailed Charging Curve for 120W 24V 4A LiFePO4 Charger:

Charging Stages: Constant current, constant voltage, trickle current
LED Indicators: Red for charging, Green for fully charged.

Protection Features:

Overcurrent, Overvoltage, Short Circuit, and Reverse Polarity Protection

Quality Assurance:

A team of experienced sales engineers understanding customer needs
Rigorous raw material supplier selection and strict incoming material inspections
Over 20 years of expertise in material solutions design
Skilled production staff and advanced testing equipment
100% aging testing process for up to 4 hours
Comprehensive after-sales support with resolutions within 48 hours

Company Background:

With over 13 years of expertise, Henryuan Group is a leader in the production and R&D of 24V LiFePO4 chargers. Our chargers are recognized for their superior performance and safety features, making them popular worldwide. Our products are exported to regions including the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, and Taiwan.

Henryuan's chargers are ideal for a variety of applications, such as power stations, electric golf trolleys, ultrasonic detectors, communication base stations, portable power stations, diving devices, electric motors, and more. For safe, reliable, and efficient 24V 4A LiFePO4 battery chargers, contact Henryuan's sales engineers today.
