Products >> Electric scooter charger >>

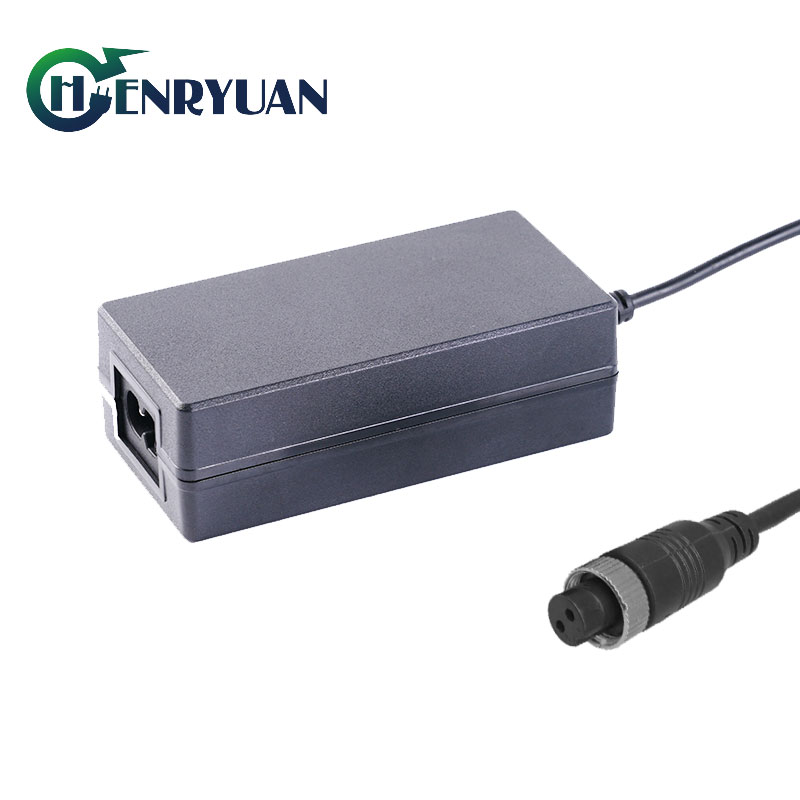

Universal portable quick scooter charger adapter 42V 5A electric scooter charger

Product No.：HRY4205000
Online Inquiry

Introducing the Henryuan Universal Portable Quick Scooter Charger Adapter, the premier 42V 5A electric scooter charger tailored for 10s 36V e scooter batteries. With its advanced design and top-tier components, this charger ensures both safety and speed during the charging process.

Product Highlights:

Safety Certifications: UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.
Customized Charging: Customized voltage, current, and DC output plug for various scooter battery packs.

Input Specifications:

Voltage: 90Vac-264Vac (Rated: 100Vac-240Vac)

Frequency: 47Hz-63Hz

Current: 3A (Inrush Current: 60A)

AC Inlet: 2pin IEC320-C8, 3pin IEC320-C6, and IEC320-C14.

Output Features:

LED Indicator: Dual-color LED displays charging status (Red for charging, Green for fully charged).

Charging Stage: Constant Current (5A) until 42V, then Constant Voltage (42V) until trickle current.

Output		Charging Stage	LED Indicator
Output
Current	Voltage
5A	25V-42V	Constant Current	RED
5A->0.5A	42V	Constant Voltage	RED
0.5A->0	42V	Trickle Current	GREEN LED turn red to green when charging current below 0.5A

Charging Curve:

electric scooter charger 36V

Protection Mechanisms: Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.

Quality Assurance:

Sales Engineers with over a decade of expertise.

Rigorous material selection and incoming inspection processes.

Experienced engineers for over 20 years in material solutions design.

Skilled production staff and advanced testing equipment.

100% aging testing process, ensuring reliability.

Comprehensive after-sales system for prompt issue resolution within 48 hours.

Henryuan Group: With over 13 years of experience, Henryuan Group leads the industry in lithium battery charger production and R&D. Their 42V 4A, 5A and 6A lithium ion battery chargers are renowned for superior performance and safety globally. Exported to numerous countries and regions, these chargers offer both safety and efficiency, meeting diverse customer requirements. Whether you need an existing product or a customized solution, Henryuan's experienced engineers ensure satisfaction. For safe, reliable, and efficient charging, trust Henryuan's range of 42V chargers.
Common Li-ion 42V AC Charger Models for Projects

Henryuan 42V Li-ion Charging Solutions(CB, UL, cUL, FCC, ETL, CE, EMC, UKCA, SAA, PSE, KC, CCC, RoHS)	Model	Input	Output(Voltage/Current)	Output(Power)
	HRY4200500	100-240V ac, 50/60Hz	42V 0.5A	24W
	HRY4201000		42V 1.0A	42W
	HRY4201200		42V 1.2A	35.28W
	HRY4201500		42V 1.5A	63W
	HRY4202000		42V 2.0A	84W
	HRY4202500		42V 2.5A	105W
	HRY4203000		42V 3.0A	126W
	HRY4204000		42V 4.0A	168W
	HRY4205000		42V 5.0A	210W
	HRY4206000		42V 6.0A	252W
	HRY4206500		42V 6.5A	273W
	HRY4207000		42V 7.0A	294W
	HRY4208000		42V 8.0A	336W
	HRY4209000		42V 9.0A	378W
	HRY42010000		42V 10.0A	420.0W
	HRY42015000		42V 15.0A	630W
	HRY42020000		42V 20.0A	840W
	HRY42025000		42V 25.0A	1050W
