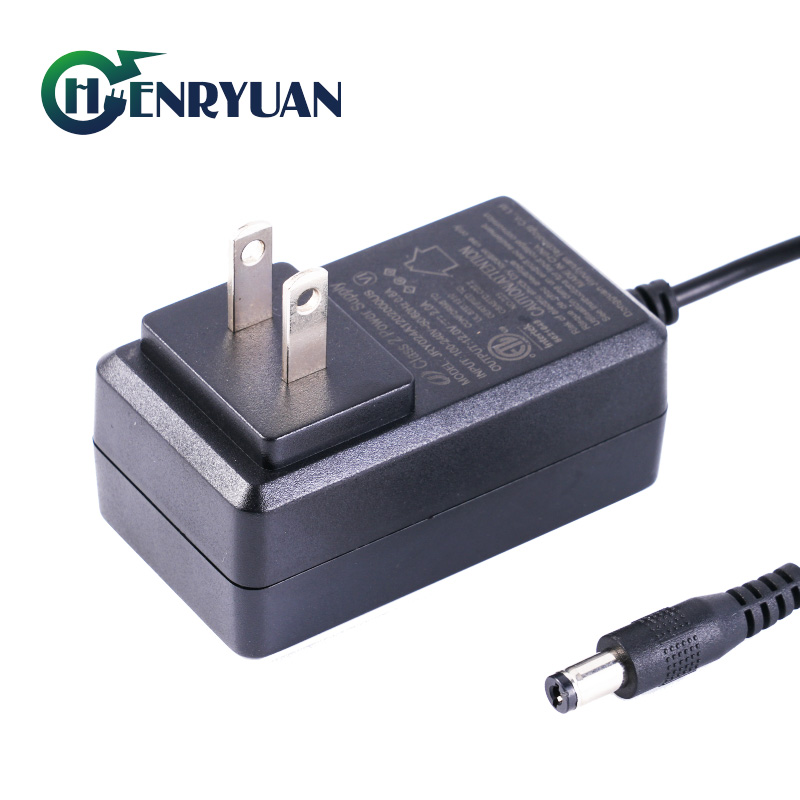

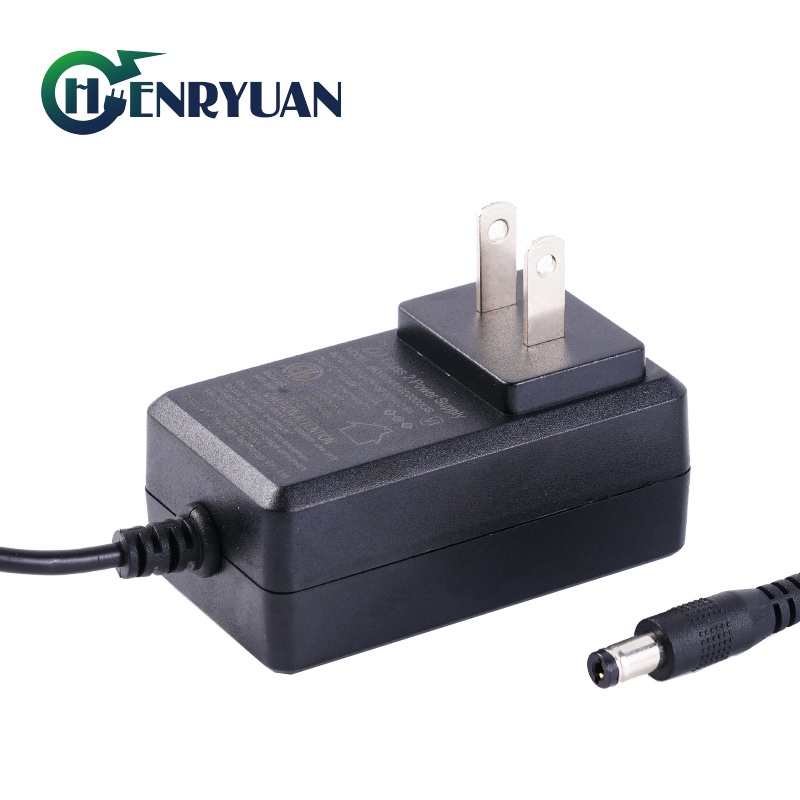

Henryuan 12V Electric Scooter Charger: Professional and Reliable Charging Solutions

Product Overview:

Henryuan's 12V 1A electric scooter charger is a top-tier charging solution for 12V lead-acid batteries, particularly for kids' electric scooters. This high-quality charger adheres to strict safety standards, including UL, FCC, and cUL certifications, ensuring both reliable performance and user safety. With advanced design and multiple protection mechanisms, it provides a safe and rapid charging experience.

Global Compatibility

Henryuan offers variants of the 12V 1A lead-acid battery charger to cater to different international standards:

  • EU Plug 12V 1A lead acid battery charger: Model HRY1461000EU (Output: 14.6V 1A, 14.6W)
  • UK Plug 12V 1A lead acid battery charger:  Model HRY1461000UK (Output: 14.6V 1A, 14.6W)
  • AU Plug 12V 1A lead acid battery charger:  Model HRY1461000AU (Output: 14.6V 1A, 14.6W)
  • JP Plug 12V 1A lead acid battery charger:  Model HRY1461000JP (Output: 14.6V 1A, 14.6W)

Key Features

1. Safety Certifications

  • Compliant with TUV CE EMC, LVD, GS, PSE, SAA, UKCA, UL, FCC, cUL standards.

2. Input Specifications

  • Voltage Range: 90Vac-264Vac
  • Rated Voltage: 100Vac-240Vac
  • Frequency: 47Hz-63Hz
  • Current: 0.6A
  • Inrush Current: 35A

3. Output Specifications

  • Features a dual-color LED indicator: Red during charging, Green when fully charged.
  • Charging Stages:
  • Constant Current: 1A (9V-14.6V, RED)
  • Constant Voltage: 1A → 0.3A (14.6V, RED)
  • Trickle Charge: 0.3A → 0 (14.6V, GREEN)


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 0.3A

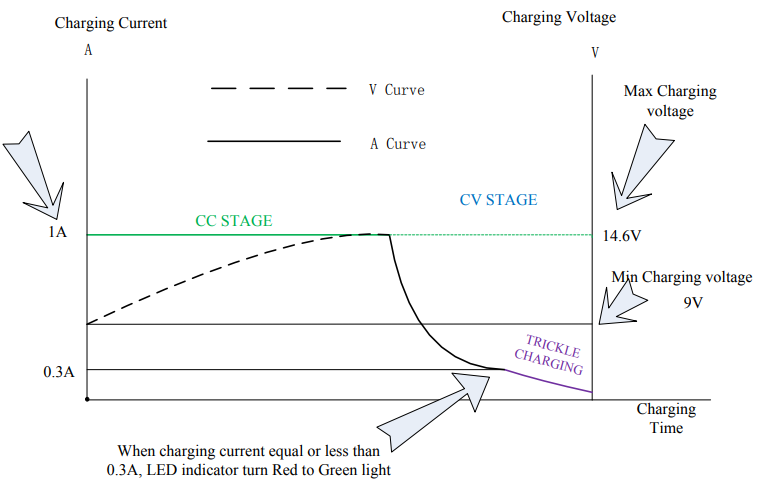

4. Charging Curve

Special designed for 12V 1A lead acid battery charging

European plug 12V 1A lead-aicd battery charger CE

5. Protection Features

  • Includes over-current, over-voltage, short-circuit, and reverse polarity protections.

6. Quality Assurance

  • Sales engineers with over a decade of experience.
  • Rigorous supplier selection and material inspection processes.
  • Comprehensive aging testing and advanced production equipment.
  • Strong after-sales support, resolving issues within 48 hours.

About Henryuan Group

With over 13 years of expertise in the production and R&D of electric scooter chargers, Henryuan is a leading industry supplier. Their 12V electric scooter chargers are renowned for their superior safety and performance. These chargers are widely exported to regions including the Americas, Europe, the UK, Australia, and Asia, maintaining a high market share.

For those in need of a dependable 12V electric scooter charger, Henryuan offers a range of models from 0.5A to 25A to meet various charging requirements.
Contact Henryuan's sales engineers for tailored support and solutions for your charging needs.
