Products >> Electric scooter charger >>

Certificated Top Rated 2A 3A 4A 5A 7A 10A 24V Electric Scooter Chargers

Product No.：HRY240yyyy
Online Inquiry

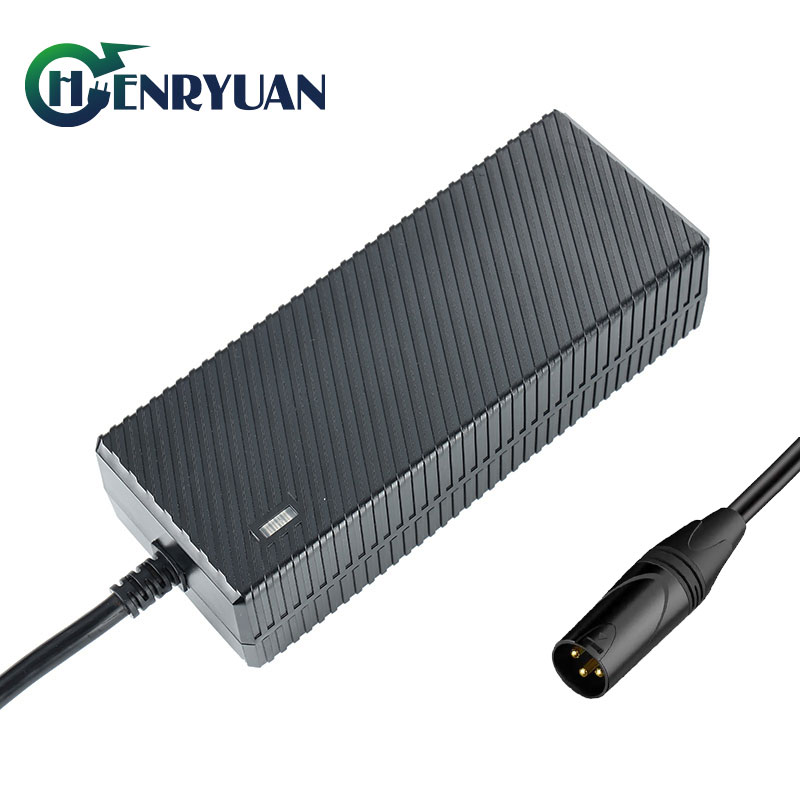

24V scooter charger

Product Title:
Certificated Top Rated 2A 3A 4A 5A 7A 10A 24V Electric Scooter Chargers

Product Description:
High Quality 24V Scooter Charger | Electric Scooter Charger 24V

The Henryuan 24V scooter charger offers top level charging performance for a variety of 24V scooter battery packs. With UL, PSE, CE, EMC, LVD, SAA, and FCC certifications, this charger is built to meet the highest safety standards globally, ensuring safe and efficient charging.

24V Scooter Chargers:
24V Lithium Battery Scooter Charger

2A Scooter Charger: HRY2942000, Output 29.4V 2A, 58.8W
3A Scooter Charger: HRY2943000, Output 29.4V 3A, 88.2W
4A Scooter Charger: HRY2944000, Output 29.4V 4A, 117.6W
5A Scooter Charger: HRY2945000, Output 29.4V 5A, 147W
7A Scooter Charger: HRY2947000, Output 29.4V 7A, 205.8W

24V Lead Acid Battery Scooter Charger

2A Scooter Charger: HRY2922000, Output 29.2V 2A, 58.4W
3A Scooter Charger: HRY2923000, Output 29.2V 3A, 87.6W
4A Scooter Charger: HRY2924000, Output 29.2V 4A, 116.8W
5A Scooter Charger: HRY2925000, Output 29.2V 5A, 146W
7A Scooter Charger: HRY2927000, Output 29.2V 7A, 204.4W

24V LiFePO4 Battery Scooter Charger

2A Scooter Charger: HRY2922000, Output 29.2V 2A, 58.4W
3A Scooter Charger: HRY2923000, Output 29.2V 3A, 87.6W
4A Scooter Charger: HRY2924000, Output 29.2V 4A, 116.8W
5A Scooter Charger: HRY2925000, Output 29.2V 5A, 146W
7A Scooter Charger: HRY2927000, Output 29.2V 7A, 204.4W

Safety Certifications:

Worldwide certificates
UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 1.3A/3A
Inrush Current: 60A

Output Specifications:

Model: 24V 5A Lithium Scooter Charger

Power: 147W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
5A	17.5V-29.4V	Constant Current	RED
5A->0.5A	29.4V	Constant Voltage	RED
0.5A->0	29.4V	Trickle Current	GREEN LED turn red to green when charging current below 0.5A

Charging Stages:

Constant Current: 5A fast charging, voltage 17.5V -29.4V, LED red.

Constant Voltage: 29.4V max, current 5A to 0.5A, LED red.

Trickle Current: 0.5A to 0, voltage 29.4V max, LED green.

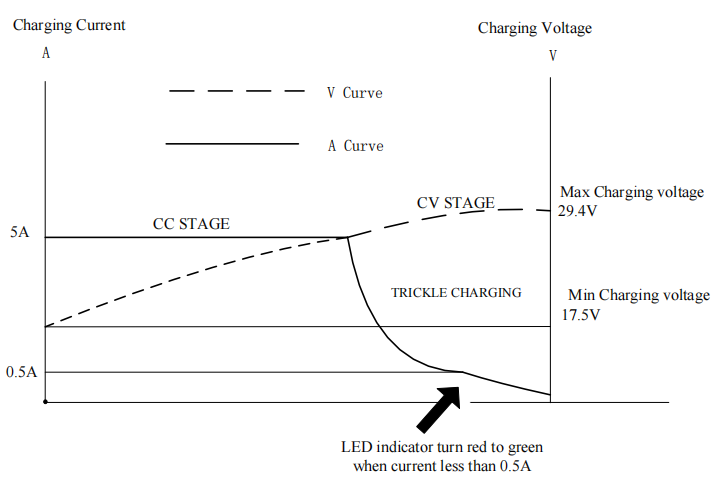

Charging Curve:
The 24V 5A lithium scooter charger maintains a consistent and efficient charging curve, preserving battery health.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but large power
Dimensions: 176 x 80 x 47 MM
Weight: 0.5kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 24V scooter chargers, Henryuan Group is a leading industry supplier. Our 24V electric scooter battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
