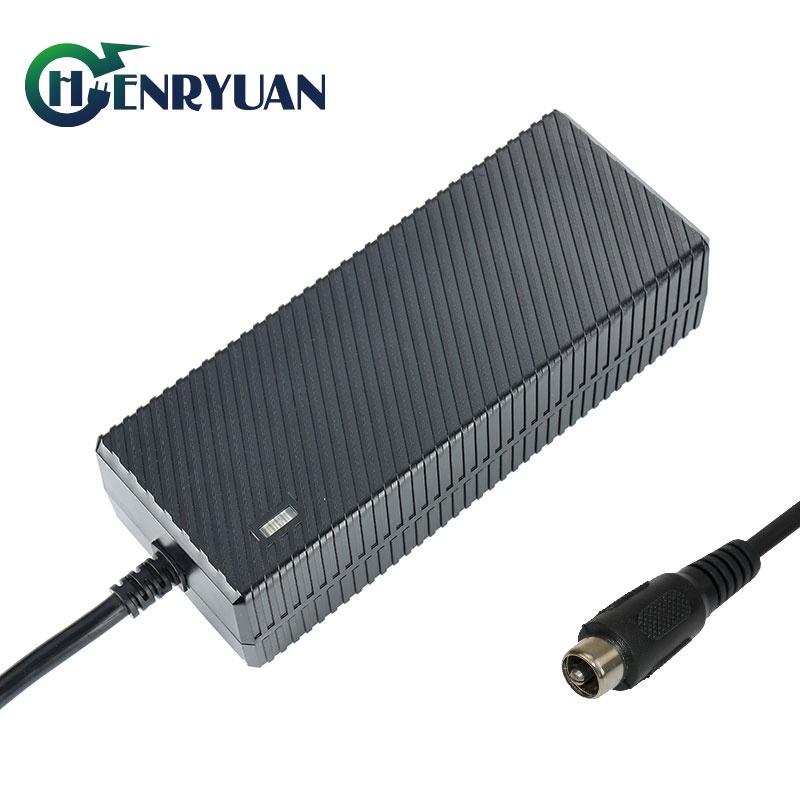

Factory customized Lithium 36V Battery Electric Scooter Charger 42V

Product No.：HRY4204000
Online Inquiry

36V scooter charger

High Quality 36V Scooter Charger | Electric Scooter Charger 42V

Product Description:

Henryuan's 42V scooter chargers deliver outstanding charging performance for 36V battery packs. Designed with UL, PSE, CE, EMC, LVD, SAA, and FCC certifications, these chargers guarantee the highest levels of safety and efficiency.

42V Scooter Chargers:
42V Lithium Battery Scooter Charger

1.5A Scooter Charger: HRY4201500, Output 42V 1.5A, 63W
2A Scooter Charger: HRY4202000, Output 42V 2A, 84W
3A Scooter Charger: HRY4203000, Output 42V 3A, 126W
4A Scooter Charger: HRY4204000, Output 42V 4A, 168W
5A Scooter Charger: HRY4205000, Output 42V 5A, 210W
8A Scooter Charger: HRY4208000, Output 42V 8A, 336W
10A Scooter Charger: HRY42010000, Output 42V 10A, 420W

Certifications and Safety Standards:

Worldwide Compliance: UL, ETL, cUL, FCC, PSE, CE, EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications:

Voltage Range: 90Vac-264Vac
Rated Voltage: 100Vac-240Vac
Frequency: 47Hz-63Hz
Current: 1.3A/3A/5A
Inrush Current: 60A

Output Specifications:

Model: 42V 4A Lithium Scooter Charger

Power: 168W

LED Indicator: Dual color (Red during charging, Green when fully charged)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
4A	25V-42V	Constant Current	RED
4A->0.4A	42V	Constant Voltage	RED
0.4A->0	42V	Trickle Current	GREEN LED turn red to green when charging current below 0.4A

Charging Stages:

Constant Current: 4A fast charging, voltage 25V - 42V, LED red.

Constant Voltage: 42V max, current 4A to 0.4A, LED red.

Trickle Current: 0.4A to 0, voltage 42V max, LED green.

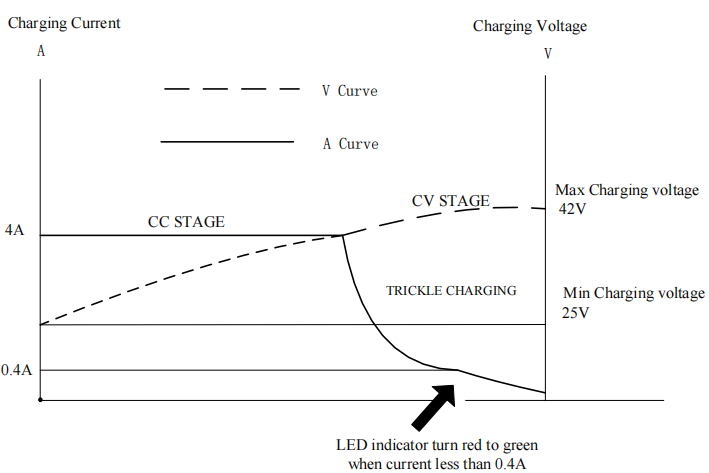

Charging Curve:
The 42V 4A lithium scooter charger maintains a consistent and efficient charging curve, preserving battery health.

Compact and Portable Design

Its lightweight and compact design makes it easy to carry and store,but large power
Dimensions: 176 x 80 x 47 MM
Weight: 0.5kg

Protection Features:

Overcurrent Protection
Overvoltage Protection
Short Circuit Protection
Reverse Polarity Protection

Quality Assurance:

Experienced Sales Engineers: Over a decade of expertise in understanding and meeting customer needs.
Rigorous Material Selection: Only top-quality raw materials are used.
Strict Inspection Process: Comprehensive incoming material inspections ensure quality.
Expert Engineers: More than 20 years of design experience.
Skilled Production Team: Advanced production and testing equipment.
Aging Testing: 100% aging testing process, up to 4 hours at full load.
Comprehensive After-Sales Support: Feedback and resolution within 48 hours.

About Henryuan Group:

With over 13 years of experience in the production and R&D of 36V scooter chargers, Henryuan Group is a leading industry supplier. Our 36V electric scooter battery chargers are globally recognized for their superior performance and safety features. Exported to the Americas, Europe, the UK, Australia, New Zealand, and Asia, they are trusted by consumers worldwide for a variety of applications.
