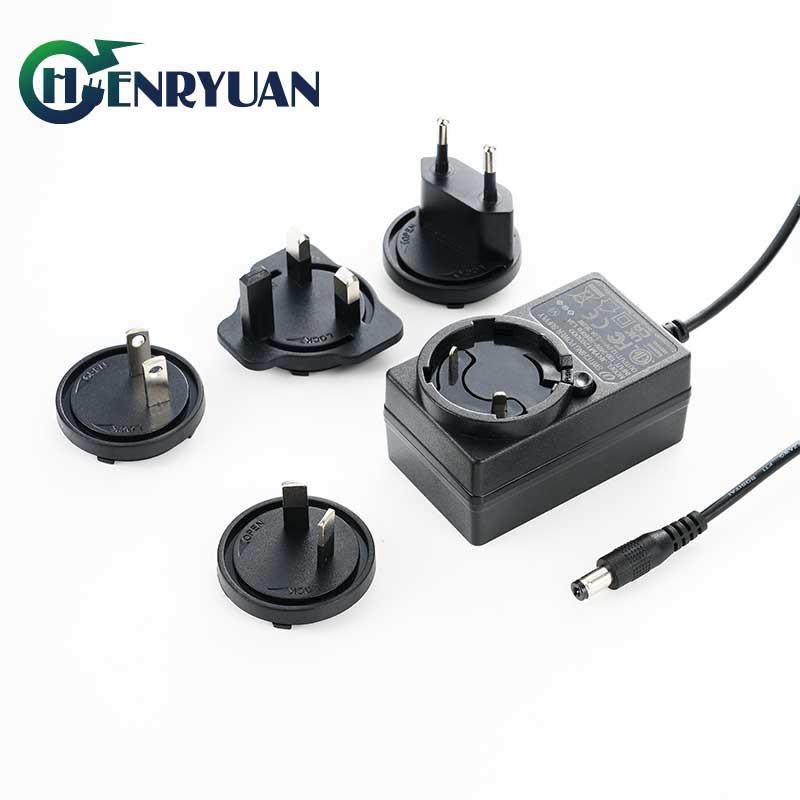

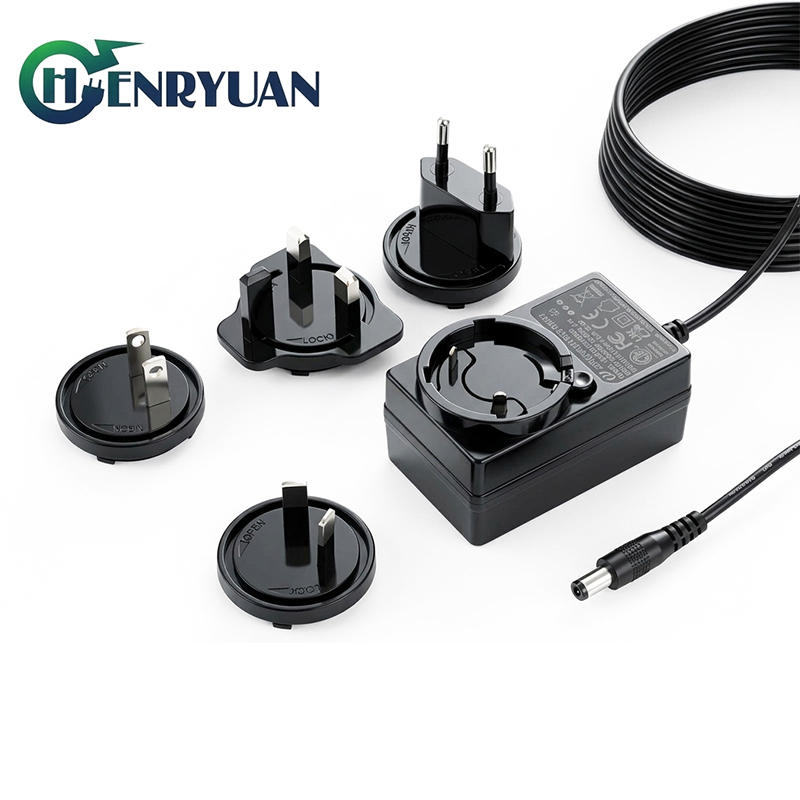

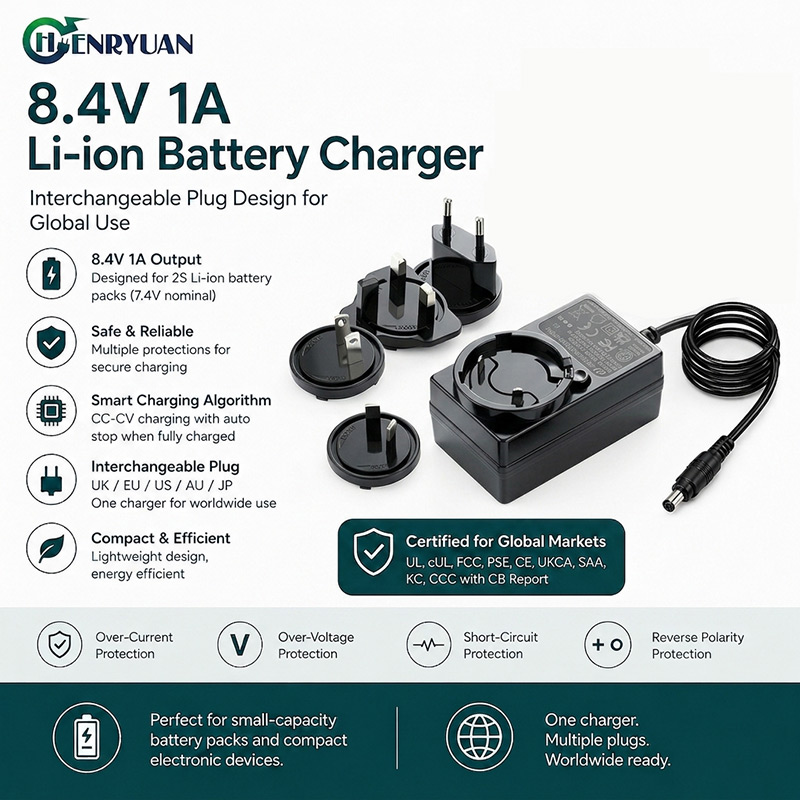

Certified Interchangeable Plug 7.4V Lithium Ion Battery Charger - 8.4V 1A

Product Description:

Henryuan's Interchangeable Wall Plug 8.4V 1A Lithium-ion Battery Chargers are certified by UL, cUL, ETL, FCC, CE, GS, UKCA, SAA, PSE, and CCC. These high-quality chargers are designed for 2S 7.4V lithium-ion batteries, featuring advanced charging schemes and multiple protection mechanisms for safer and faster charging.

Key Features:

1.Safety Certifications:

UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC.

2.Input Features:

  • Input Voltage: 90-264Vac
  • Rated Input Voltage: 100-240Vac
  • Input Frequency: 47-63Hz
  • Input Current: 0.6A
  • Inrush Current: 35A

3.Output Specifications:

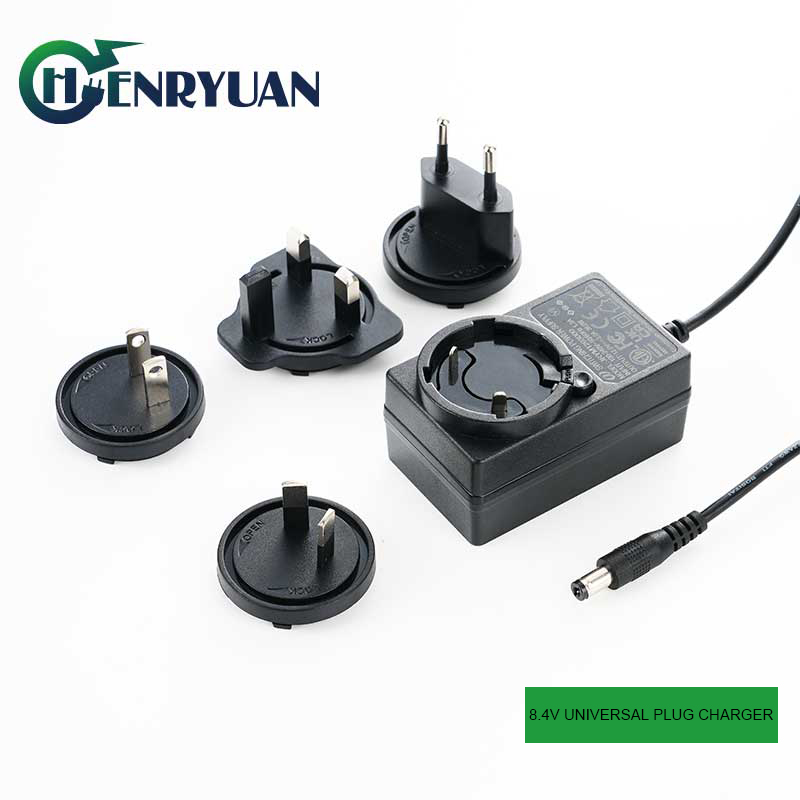

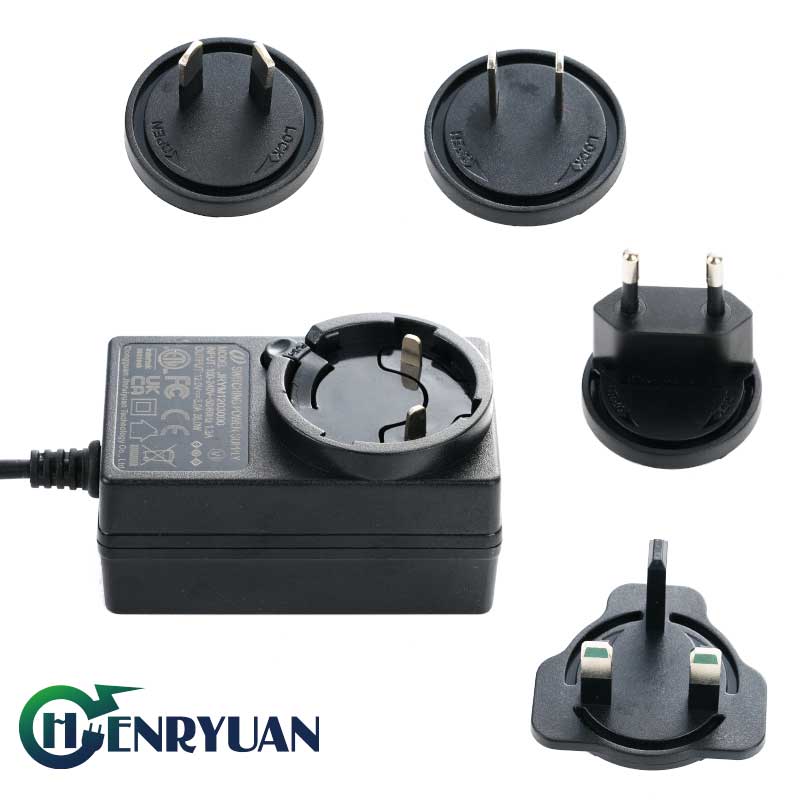

  • Interchangeable plugs for UK, EU, US, AU, JP.
  • Compatible with 7.4V lithium-ion batteries, charging at 8.4V 1A.
  • LED dual color indicator (red for charging, green when fully charged).

4.Charging Status:

  • Charging: constant current 1A, when battery voltage between 5V-8.4V (Red LED).
  • Fully Charged: constant current 1A->0.2A, output voltage 8.4V (Red LED).
  • Trickle Charging: 0.2A->0, output voltage 8.4V (Green LED).

Output

Charging Stage

LED Indicator

Current

Voltage

1A

5V-8.4V

Constant Current

RED

1A->0.2A

8.4V

Constant Voltage

RED

0.2A->0

8.4V

Trickle Current

GREEN
LED turn red to green when charging current below 0.2A

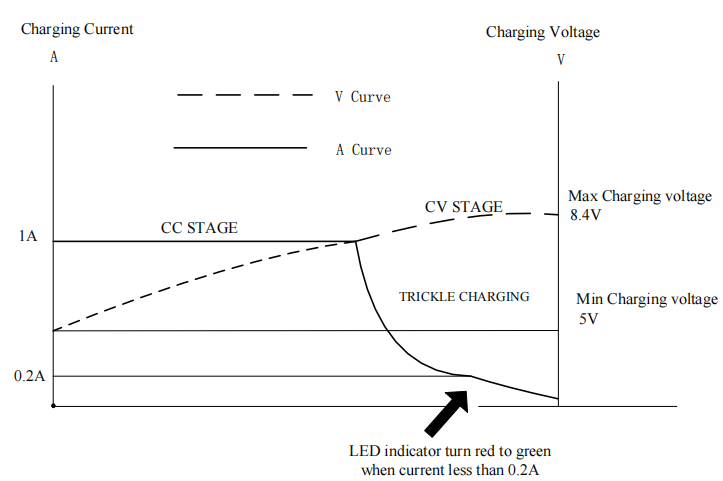

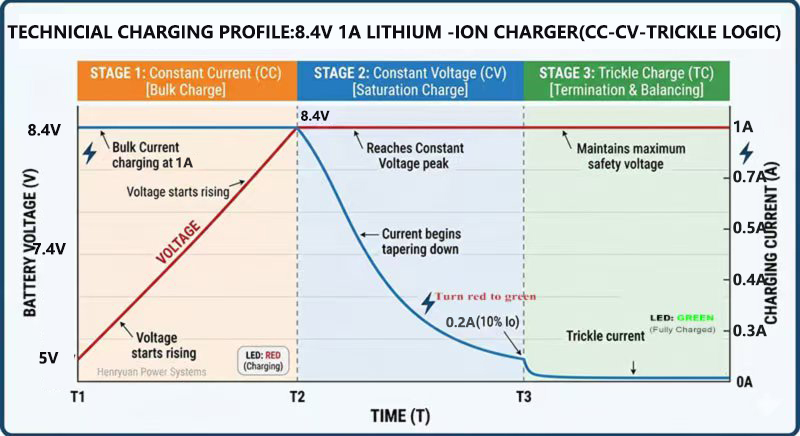

5. Charging Curve For 8.4V 1A Charger:

Special designed for charging 2s 7.4V li-ion battery pack.


8.4v 1a charger

6. Compact and Portable Design

  • Its lightweight and compact design makes it easy to carry and store.
  • Dimensions: 64x 37x 40 MM
  • Weight: 100g

7. Protection Features:

Overcurrent protection, Overvoltage protection, Short circuit protection, Reverse polarity protection.

8. QUALITY ASSURANCE

  • Experienced sales engineers.
  • Rigorous selection of raw material suppliers.
  • Strict incoming material inspection process.
  • Experienced engineers with over 20 years in material solutions design.

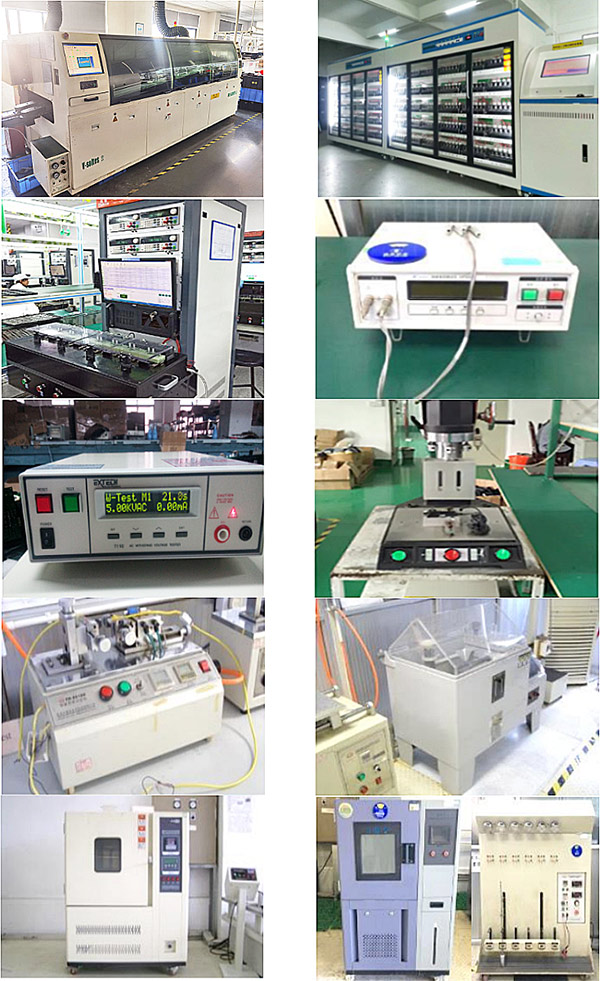

  • Skilled production staff and advanced testing equipment.
  • 100% aging testing process for up to 4 hours.
  • Comprehensive after-sales system with resolution within 48 hours.

About Henryuan Group:

Henryuan Group has over a decade of experience in lithium battery charger production and R&D. Their high-quality 8.4V 1A Li-ion battery charger is trusted globally for superior performance and safety features. Exported to various countries worldwide, they offer fast and safe charging, making them ideal for multiple applications. With excellent EMI performance and experienced engineers, Henryuan can meet diverse customer requirements efficiently.

Henryuan 8.4V Lthium Charger Range:

Various 8.4V charger with currents 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 6.5A, 7A, 8A, 9A, 10A.

More 8.4V Lithium Charger Links:

Contact Us

For a reliable, safe and efficient multiple plugs 8.4V 1A li-ion battery charger, reach out to Henryuan’s expert sales team today.

Customers also bought products:

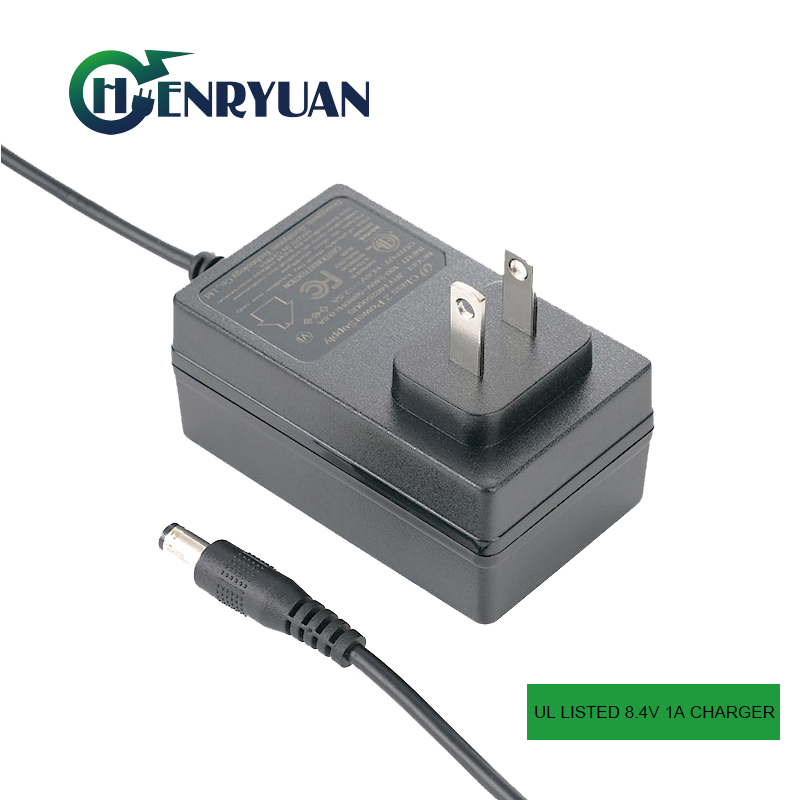

US PLUG 8.4V 1A CHARGER              EU PLUG 12.6V 1A CHARGER        UNIVERSAL PLUG 4.2V 2A CHARGER
