  • Compact Certificated SLA GEL 300W 24V Lead Acid Battery Charger 10A

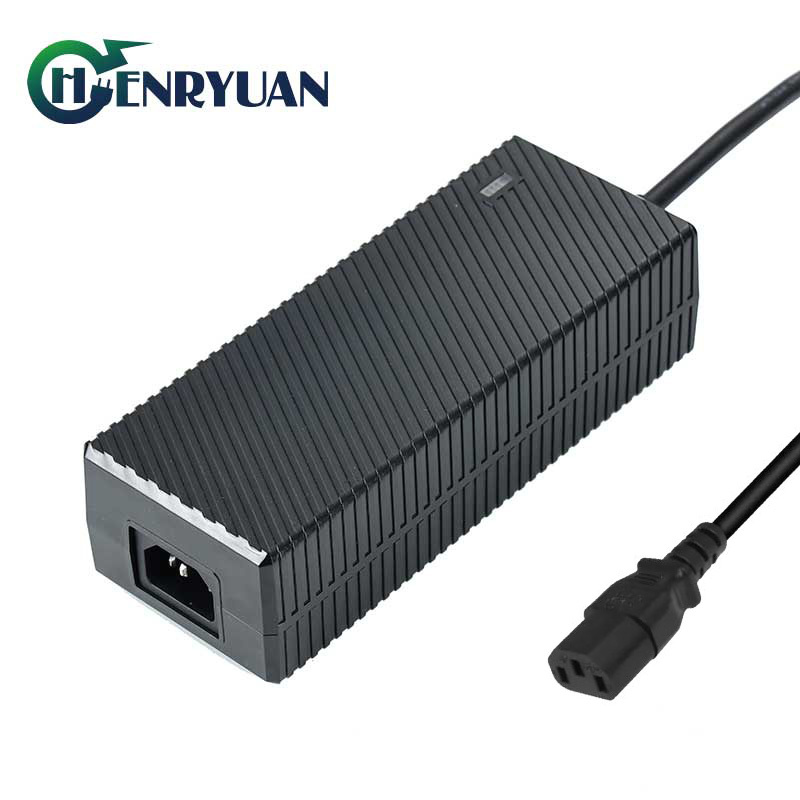

Compact Certificated SLA GEL 300W 24V Lead Acid Battery Charger 10A

Compact Certificated SLA GEL 300W 24V Lead Acid Battery Charger 10A

24V 10A lead acid battery charger

CE, SAA, UL, PSE, UKCA  Approved 200W 24V 10A Lead Acid Battery Charger

Product Overview:

The Henryuan compact certificated 300W 24V Lead Acid Battery Charger 10A, provides high-quality charging solutions for 24V SLA GEL lead-acid battery packs. Utilizing advanced charging technology and premium components, this charger ensures faster, safer, and more efficient charging. Ideal for a wide range of applications, including floor scrubbers, electric mowers, bicycles, wheelchairs, golf trolleys, and more.

Key Features:

  • Advanced Charging Scheme: Designed for optimal charging efficiency and battery health.
  • LED Dual-Color Indicator: Red during charging and green when fully charged, allowing for easy status monitoring.
  • Robust Protection Mechanisms: Includes overcurrent, overvoltage, short circuit, and reverse polarity protections.


  • This charger is globally certified to ensure safety and reliability:

Input Specifications:

  • Input Voltage Range: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Frequency Range: 47Hz-63Hz
  • Input Current: 5A
  • Inrush Current: 60A

Output Specifications:

  • Power: 200W
  • Voltage: 29.2V/27.6V
  • Current Options: 10A
  • LED Indicator: Red during charging, Green when fully charged

Charging Stages:

  • Constant Current (CC): 10A charging current, voltage range 18V-29.2V, LED red.
  • Constant Voltage (CV): Voltage at 29.2V, current 10A to 3A, LED red.
  • Trickle Charge: Current reduces from 3A to 0, voltage 29.2V, LED green.


Charging Stage

LED Indicator





Constant Current




Constant Voltage




Trickle Current

LED turn red to green when charging current below 3A


  • This 24V Lead Acid Battery Charger is versatile and suitable for:
  • Floor Scrubbers, Electric Mowers, Electric Bicycles
  • Electric Wheelchairs, Power Stations, Electric Golf Trolleys, Robots

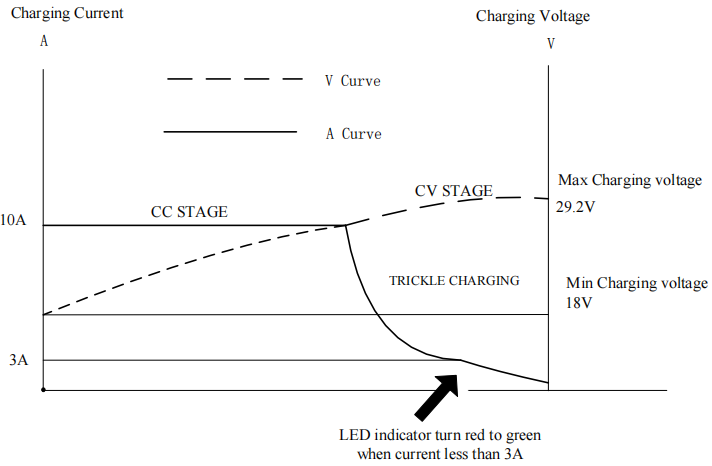

Charging Curve:

The 24V 10A Lead acid battery charger maintains a stable and efficient charging curve, essential for extending battery life and ensuring reliable operation.
24V 10A Lead acid battery charger

Compact and Portable Design

  • Its lightweight and compact design makes it easy to carry and store,but large power
  • Dimensions: 176 x 80 x 47 MM
  • Weight: 0.5kg

Protection Features:

  • Overcurrent Protection
  • Overvoltage Protection
  • Short Circuit Protection
  • Reverse Polarity Protection

Quality Assurance:

  • 1. Expert Sales Engineers: Over a decade of experience in understanding and fulfilling customer needs.
  • 2. High-Quality Raw Materials: Strict selection of suppliers to ensure the best components.
  • 3. Comprehensive Inspection: Rigorous incoming material inspections to maintain high standards.
  • 4. Experienced Engineers: More than 20 years of design and material solutions expertise.
  • 5. Skilled Production Team: Utilizing advanced equipment and techniques for superior production.
  • 6. 100% Aging Testing: Full load testing for up to 4 hours to ensure performance and reliability.
  • 7. Responsive After-Sales Support: Dedicated team to resolve issues within 48 hours.

About Henryuan Group:

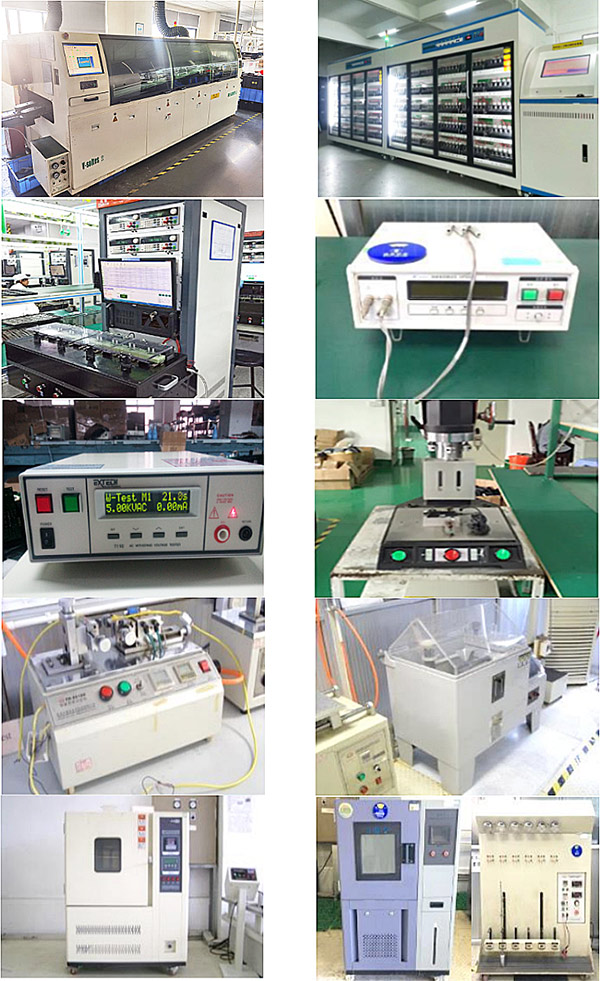

Henryuan production equipments

With over 13 years of experience in the production and R&D of lead-acid battery chargers, Henryuan Group is a trusted leader in the industry. Our 24V 10A lead-acid battery chargers are renowned for their superior performance and safety features, making them a top choice for customers worldwide. We serve markets across the Americas, Europe, the UK, Australia, New Zealand, and Asia, ensuring reliable and efficient charging solutions for various applications.

24V Lead-acid Battery Charger Variants:

  • Explore our range of 24V lead-acid chargers, available in various models to meet your specific needs:
  • - 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, 10A.

More 24V Lead-acid Battery Charger Links:

Contact Us:

For a safe, reliable, and efficient 24V lead acid battery charger, contact Henryuan's expert sales engineers today.
