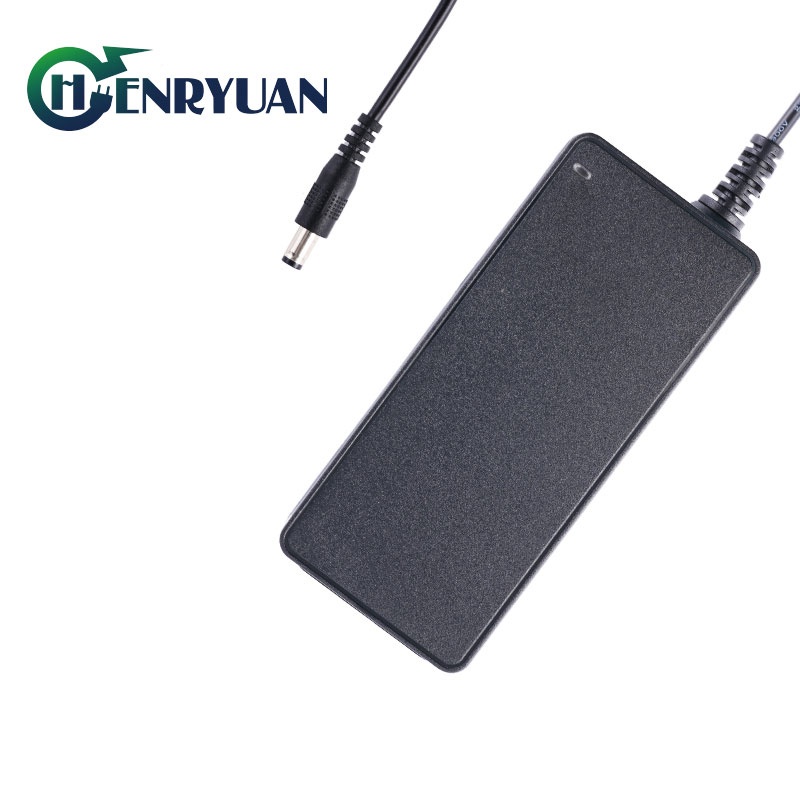

  • UL CE SAA PSE UKCA approved 60W 24V Lead-acid battery 29.2V 2A Lead-acid SLA battery charger
UL CE SAA PSE UKCA approved 60W 24V Lead-acid battery 29.2V 2A Lead-acid SLA battery charger

UL CE SAA PSE UKCA approved 60W 24V Lead-acid battery 29.2V 2A Lead-acid SLA battery charger

UL CE SAA PSE UKCA approved 60W 24V Lead-acid battery 29.2V 2A Lead-acid SLA battery charger , the high quality 24V lead-aicd battery chargers used for the 24V Lead-acid battery pack. Advanced charging scheme design, having multiple protection mechanisms with high quality components, which make charging safer and faster.They are used as a electric scooter charger, electric wheelchair charger, power station charger, electric golf trolley charger, portable ultrasonic detector charger, communication base station, robot charger, electric toy charger, massager charger. etc


1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current: 60A

3. Output:
UL CE SAA PSE UKCA approved 60W 24V Lead-acid battery 29.2V 2A Lead-acid SLA battery charger with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

2A

18V- 29.2V

RED

Constant Voltage

2A->0.7A

29.2V

RED

 Fully charge

Trickle Charging

0.7A->0

29.2V

GREEN

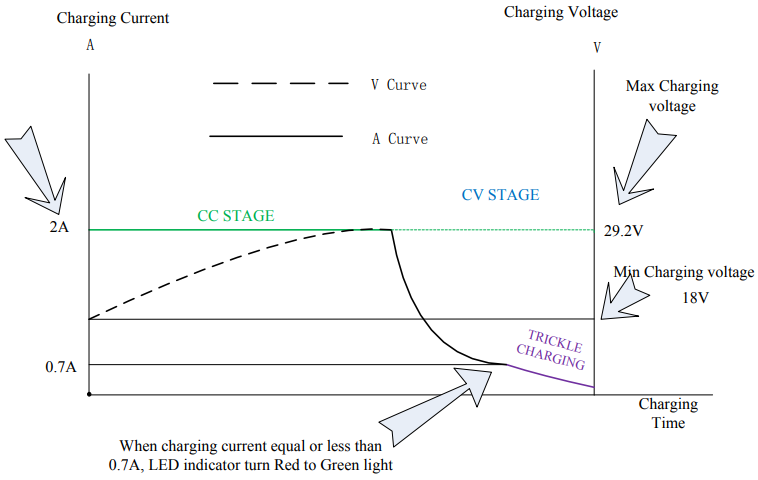

4. CHARGING CURVE:
24V 2A lead-acid battery charger


5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lead-acid battery chargers and is a leading supplier in the industry. Its high-quality 24V lead-acid battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 24V 2A lead-acid battery charger is a reliable and efficient solution for your charging needs. There are other models of 24V lead-acid chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A 10A .etc . If you are looking for a safe, reliable, and efficient lead-acid battery charger, just start by contacting Henryuan's sales engineers.
