UL UKCA CE SAA PSE listed high quality competitive 120W Lead-acid SLA battery 24V 4A AC DC charger

Product No.：HRY2924000
Online Inquiry

Lead-acid battery Charger 24V 4A

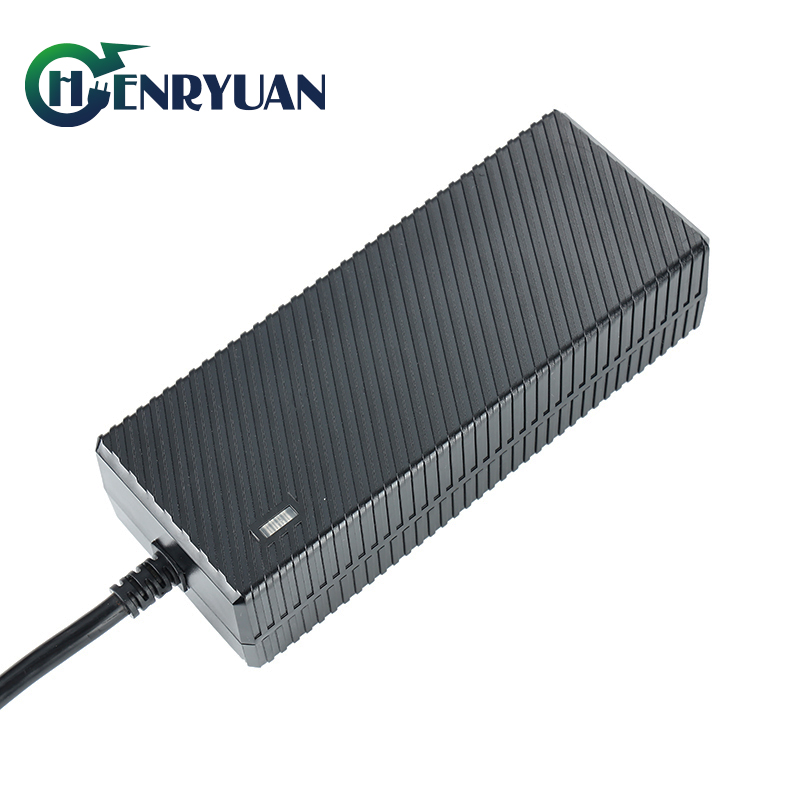

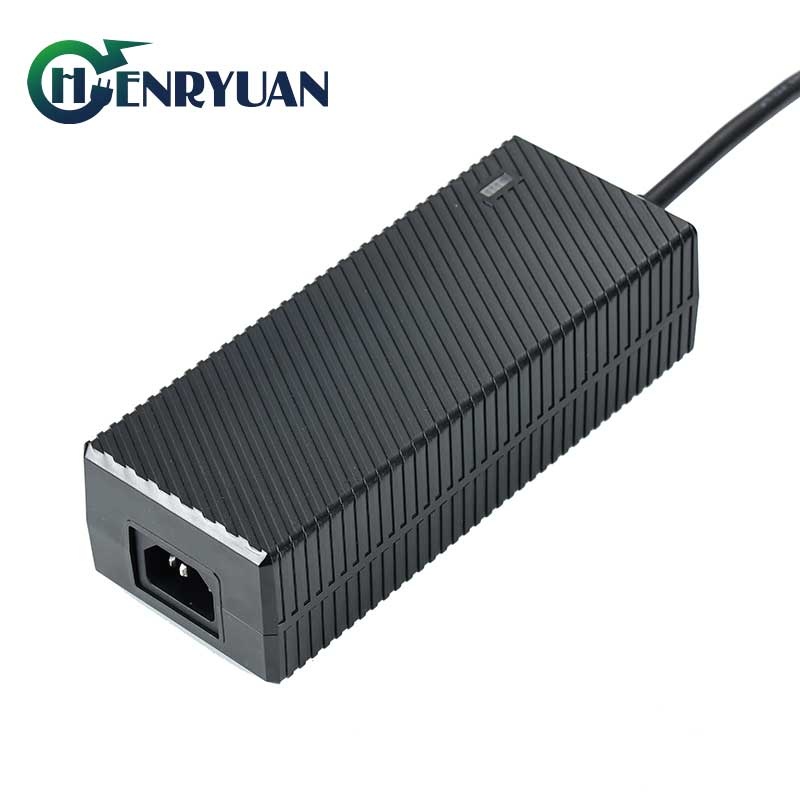

High-Quality 120W 24V 4A Lead-Acid SLA Battery Charger

Product Details:

The high-quality 120W 24V 4A AC DC charger for lead-acid SLA batteries is a premier solution designed for 24V lead-acid battery packs. This charger features an advanced charging scheme and multiple protection mechanisms, utilizing top-tier components to ensure a safer and faster charging process. It is versatile and can be used in various applications, including electric scooters, wheelchairs, golf trolleys, power stations, portable ultrasonic detectors, communication base stations, robots, electric toys, and massagers.

Certifications and Safety Standards

This charger meets rigorous international safety standards, including:

UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

Input Specifications

Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequency: 47Hz-63Hz
Input Current: 3A
Inrush Current: 60A

Output Specifications

The charger features an LED dual-color indicator light to display the charging status, with red indicating charging and green indicating a full charge.

Constant Current Stage:

Output Voltage: 18V-29.2V, Output current 4A
LED Indicator: RED

Constant Voltage Stage:

Output Voltage: 29.2V, Output current 4A to 1.3A
LED Indicator: RED

Trickle Charging Stage:

Output Voltage: 29.2V, Output current 1.3A to 0

LED Indicator: GREEN

4. CHARGING CURVE:

Protection Features

To ensure safety and reliability, this charger includes:

Over current protection
Over voltage protection
Short circuit protection
Reverse polarity protection

Quality Assurance

Experienced Sales Engineers: Our team has over a decade of experience in understanding and meeting customer needs.
Rigorous Supplier Selection: We maintain a stringent system for selecting raw material suppliers.
Strict Inspection Process: All incoming materials undergo thorough inspection.
Expert Engineering: Our engineers have over 20 years of experience in material solutions design.
Skilled Production Staff: Our production team is highly skilled, using advanced testing equipment.
Comprehensive Testing: Each charger undergoes 100% aging testing, with up to 4 hours of full-load aging.
Robust After-Sales Support: We offer a comprehensive system for analysis, feedback, and resolution within 48 hours.

Company Profile

Henryuan Group is a leading company with over 13 years of expertise in the production and R&D of lead-acid battery chargers. We are a renowned supplier, known for our superior performance and safety features. Our high-quality 24V lead-acid battery chargers are highly regarded and widely used across the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions. With excellent EMI performance and customizable options, our chargers are perfect for various customer requirements, both for existing products and those in development.

For those seeking a reliable and efficient lead-acid battery charger, look no further. Contact Henryuan's sales engineers to discuss your needs and explore our range of 24V lead-acid chargers, available in various models including 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 5A, 6A, 7A, 8A, 9A, and 10A.
