  • Factory Certificated 64.8W AC DC Adapter 24V 2.7A Switching Power Supply

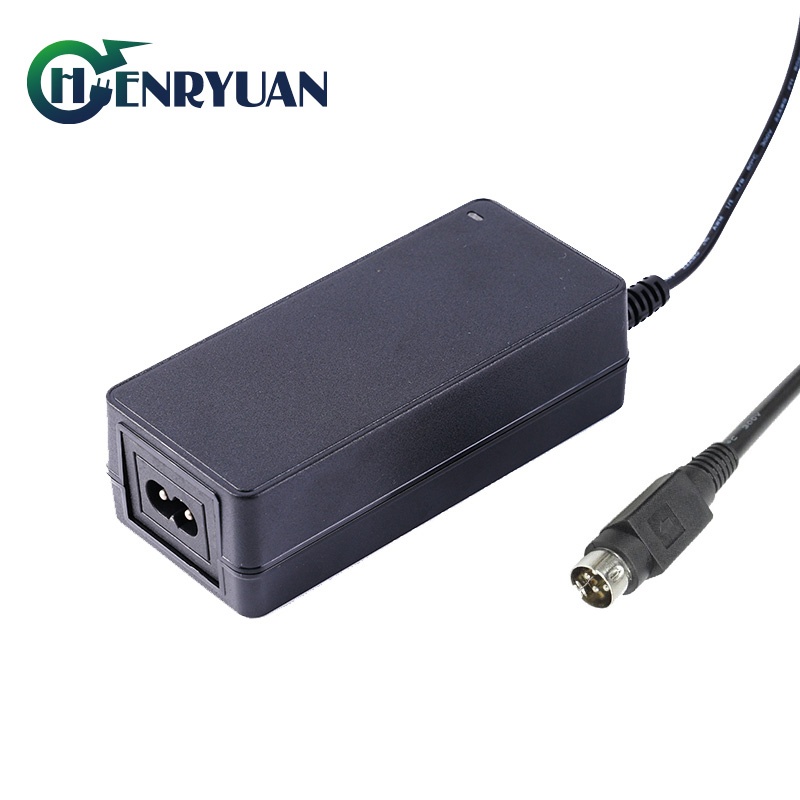

Factory Certificated 64.8W AC DC Adapter 24V 2.7A Switching Power Supply

Factory Certificated 64.8W AC DC Adapter 24V 2.7A Switching Power Supply

24V 2.7A power supply

Factory Customized 24V 2.7A AC/DC Switching Power Supply | Certified By UL, FCC, cUL, PSE, SAA, CE, UKCA

Henryuan high quality 24V 2.7A AC DC switching power supply, the advanced 24V 2.7A power adapter with high efficiency designed for a wide range of applications. It has industry-leading certifications and cutting-edge design. This 24V 2.7A  power supply unit (PSU) is built for safety, reliability, and performance. Its reliable, efficient output with low ripple noise, makes it the perfect 24V 2.7A switching power supply solution.

Key Features:

1. Certifications and Compliance:

  • International Safety Standards: Our 24V 2.7A power supplies are rigorously tested and certified to meet global safety standards including ETL, UL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, and CCC.

2. Input Specifications:

  • Wide Voltage Range: Operates efficiently within an input range of 90Vac to 264Vac, with a rated input of 100Vac to 240Vac for universal markets.
  • Frequency and Current: Handles input frequencies between 47Hz and 63Hz with a maximum input current of 1.3A and inrush current up to 60A.
  • Connector Options: IEC320-C14/C6 3pin AC inlet, IEC320-C8 2pin AC inlet.

3. Output Specifications:

  • Model: 24V 2.7A switching power supply
  • Stable Voltage and Current: Provides a consistent output voltage of 24V (with a tolerance of ±5%), supporting a current range from 0 to 2.7A.
  • Power Capacity: Delivers up to 64.8W of power, can support large peak current, ideal for demanding applications.
  • LED Indicator: Equipped with an LED indicator for easy monitoring of the power status.

RATED OUTPUT

SPEC. LIMIT

REMARK

Value(Min)

Value(Max)



Output Voltage

22.8V

25.2V

28V±5%

Output Current

0.0A

2.7A





4. Protection Mechanisms:

  • Comprehensive Protection: Includes overcurrent, overvoltage, short circuit, and hiccup protection to safeguard your devices and ensure safe operation.

5. Quality Assurance and Reliability:

  • Experienced Team: Our sales engineers, with over a decade of experience, provide precise understanding and solutions tailored to your needs.
  • Strict Quality Control: From raw material selection to production, our rigorous inspection processes ensure superior product quality.
  • Advanced Testing: Each unit undergoes a 100% full-load aging test for up to 4 hours, guaranteeing reliability and longevity.
  • Responsive Support: Our comprehensive after-sales system promises timely analysis, feedback, and resolution within 48 hours.

6. Versatile Applications:

Wide Range of Uses: Suitable for powering industrial equipments, Water purifiers and RO systems, LED lighting systems, telecommunications, medical equipments, 3D printers, CCTV cameras, access control systems, alarm systems, audio and video equipments, test and measurement equipments.
Global Reach: Our products are trusted by customers in the Americas, Europe, Asia, and beyond, reflecting our strong market presence.

About Henryuan Group:

switching power supply production equipments
With over 13 years of experience in the production and R&D of high quality switching power supplies, Henryuan Group stands at the forefront of this industry. We are committed to delivering high quality and reasonable price power solutions that meet the diverse needs of our global clientele. Our product range includes various models of 24V switching power supplies, from 0.3A to 15A, ensuring we have the right solution for your specific requirements.

More Switching Power Supply Links:

Contact Us:

For a efficient, low ripple noise, and stable power delivery 24V 2.7A switching power supply, contact our experienced sales engineers at Henryuan. We are ready to assist you with both existing products and custom development projects to perfectly match your needs.
Henryuan Group - The China Trusted 24V 2.7A Switching Power Supply Manufacturer.
