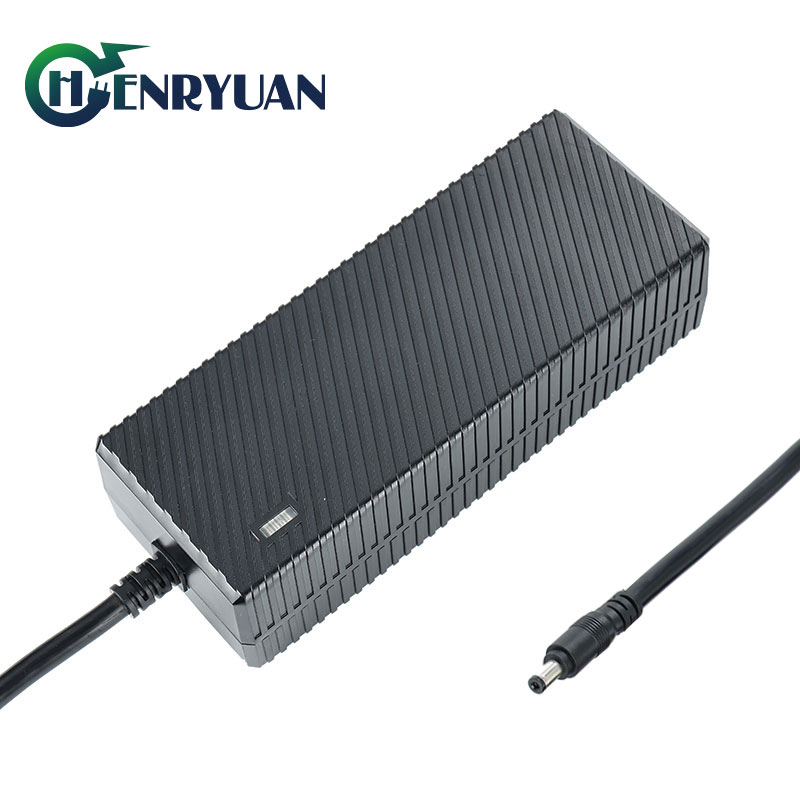

3S 12V Lithium Ion Battery 12.6V 7A 7.5A Li-Ion Charger Factory Customized

A reliable and efficient 12V 7A 7.5A lithium ion battery charger(12.6V/12.6V) from Henryuan Group—a high quality charger specifically designed for 3S 12V lithium ion batteries. With advanced design features and top quality components, this charger guarantees fast, safe, and efficient charging for your 3S 12V lithium battery powered devices.

Key Features of the Henryuan 12V 7A 7.5A Lithium Ion Battery Charger

• Safety Certifications: CB, SAA. CE, TUV, UL, ETL, cUL, FCC, PSE, KC, CCC.
• Customized Charging: Stable output voltage, current.
• Various DC output plug size for your 12V battery packs

Input Specifications

• Voltage Range: 90Vac-264Vac (Rated: 100Vac-240Vac)
• Frequency: 50/60Hz
• Input Current: 3A
• Inrush Current: 60A
• AC Inlet Options: 2pin IEC320-C8, 3pin IEC320-C6, IEC320-C14 and LINE IN LINE OUT type.

Output Features

Lithium Battery trickle charger 12V 7A/7.5A with dual color LED shows charging status
(Red for charging, Green for fully charged).
12.6V 7A lithium ion battery charger output:

Output		Charging Stage	LED Indicator
Current	Voltage
7A	7.5V-12.6V	Constant Current	RED
7A->0.7A	12.6V	Constant Voltage	RED
0.7A->0	12.6V	Trickle Current	GREEN LED turn to green when fully charge battery packs

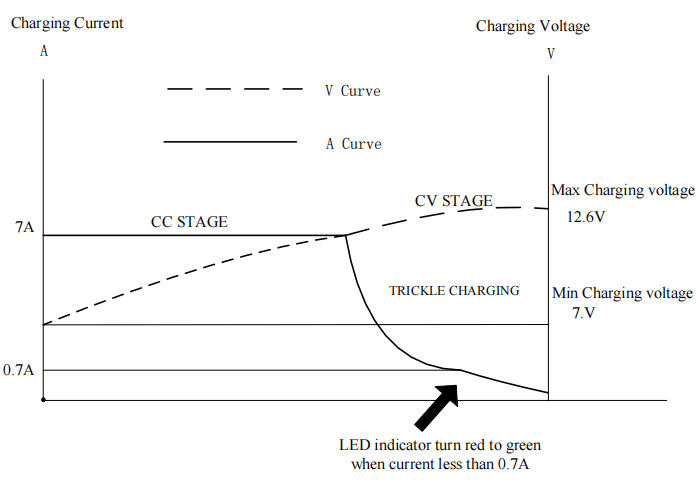

 Charging Curve:

• Constant Current 7A fast charging, led red.
• Constant Voltage 12.6V, current decreases from 7A to 0.7A, led red.
• Trickle Current current decreases to 0, fully charge battery packs, led green.



Protection Mechanisms:

• Over current protection, Over voltage protection, Short circuit protection, and Reverse polarity protection.

Quality Assurance:

• Expertise: Sales engineers with over a decade of experience.
• Material Quality: Rigorous material selection and inspection processes.
• Engineering Excellence: Engineers with over 20 years of experience in material solutions design.
• Production Excellence: Skilled production staff and advanced testing equipment.
• Reliability Testing: 100% aging testing process.
• After-Sales Support: Comprehensive system for issue resolution within 48 hours.

Why Choose Henryuan for Your 12V 7A 7.5A Lithium Ion Battery Charger Needs?

With over 13 years of  charger industry leadership, Henryuan Group is a pioneer in lithium battery charger production and R&D. Our 12V 7A 7.5A lithium ion battery chargers are recognized globally for their superior performance and safety. Trusted by customers in numerous countries, our chargers meet diverse requirements, whether you need an existing product or a customized solution.

For a safe, reliable, and efficient 12V 7A 7.5A charging solution for 12V lithium battery packs, choose Henryuan—your partner in charging solution.

For more 12V Lithium Ion Battery Chargers(0.5A, 1A, 1.5A, 2A, 3A, 4A, 5A, 7A, 8A, 10A, 15A, 20A, 25A, 28A):
