  • Premium Compact Li-Ion Battery 3S 5A Charger 12.6V
Premium Compact Li-Ion Battery 3S 5A Charger 12.6V

Premium Compact Li-Ion Battery 3S 5A Charger 12.6V

3s 5a charger

Lithium Ion 12.6V 5A charger | UL cUL CE PSE SAA UKCA Listed 3S 12V Li-Ion Charger

Henryuan premium 3S 5A charger with 12.6V 6A constant current outout, It is a cutting-edge 12V 5A charging solution that designed for 3S 12V lithium ion battery powered equipments.
This 12.6V 5A li-ion charger is engineered with advanced safety mechanisms over current protection, over voltage protection, short circuit protection and reverse voltage protection. High quality components with advanced designs ensure the reliable and efficient charging for various 12V li-ion battery packs, smart wearables, the LED lighting, communication base station, power station, diving devices.

Comprehensive Safety Certificates:

  • Henryuan 3S 5A li-ion chargers meet global safety standards with certifications from CB, CE, UKCA, SAA, UL, FCC, cUL, TUV, PSE and RoHS.

Input Specifications:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Frequency: 50/60Hz
  • Input Current: 1.3A
  • Inrush Current: 60A

Output Features:

  • Various 3S charger models available:
    • 3S 1A Charger: RY1261000
    • 3S 2A Charger: HRY1262000
    • 3S 3A Charger: HRY1263000
    • 3S 3.5A Charger: HRY1263500
    • 3S 4A Charger: HRY1264000
    • 3S 4.5A Charger: HRY1264500
    • 3S 5A Charger: HRY1265000
    • 3S 6A Charger: HRY1266000
    • 3S 7A Charger: HRY1267000
    • 3S 10A Charger: HRY12610000
    • 3S 15A Charger: HRY12615000
    • 3S 20A Charger: HRY12620000
    • 3S 25A Charger: HRY12625000
  • LED Indicator: Dual color LED indicator shows charging status: LED turn red to green when battery is fully charged.

3S 12.6V 5A Li-ion Battery Charger :

  • Constant Current: 5A fast charging, red LED.
  • Constant Voltage: 12.6V max, red LED
  • Trickle Charging: 0.5A to 0,  fully charge the 12V li-ion battery, green LED.

Output

Charging Stage

LED Indicator

Current

Voltage

5A

7.5V-12.6V

Constant Current

RED

5A->0.3A

12.6V

Constant Voltage

RED

5A->0

12.6V

Trickle Current

GREEN

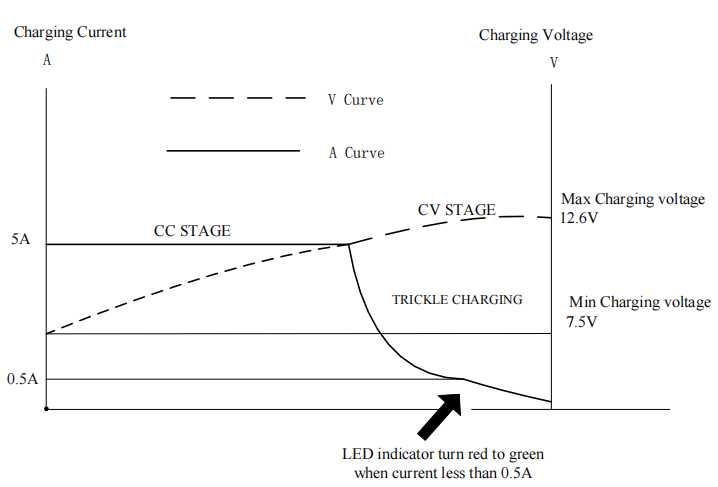

Charging Curve, Safe and efficient 12.6V 5A charging for 3S 12V li-ion battery packs.

3S li-ion 5A charger

Applications:

  • Perfect charging for 12V li-ion battery powered lighting, diving devices, base station and other devices.

Advanced Protection Features:

  • Advanced overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

Variety Of Connectors Supported:
Charging Connectors

Quality Assurance:

  • A skilled team of sales engineers with over a decade of experience
  • Rigorous raw material selection and inspection process
  • Experienced engineers with over 20 years in material solutions design
  • Advanced production testing equipment and processes
  • 100% full-load aging testing for up to 4 hours
  • Comprehensive after-sales support system with a resolution timeframe of within 48 hours

About Henryuan Group

With over 13 years of experience in the production and R&D of li-ion battery chargers, Henryuan Group is a leading supplier in the charger industry. Our high quality 3S 5A lithium chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

More 3S Lithium Battery Chargers Links:

Contact Us

For a reliable and efficient 3S 5A li-ion battery charger, contact Henryuan's sales engineers today. We offer a range of models, including12.6V 0.5A, 1A, 1.5A, 2A, 3A, 3.5A, 4A, 5A, 6A, 7A, 10A, 15A, 20A, 25A chargers to meet your specific needs.
