Products >> Lithium Ion Battery Charger >> 29.4V Lithium Ion Battery Charger

  • 60W 24V Lithium LiFePO4 Lead-acid electric bike scooter charger switching power supply

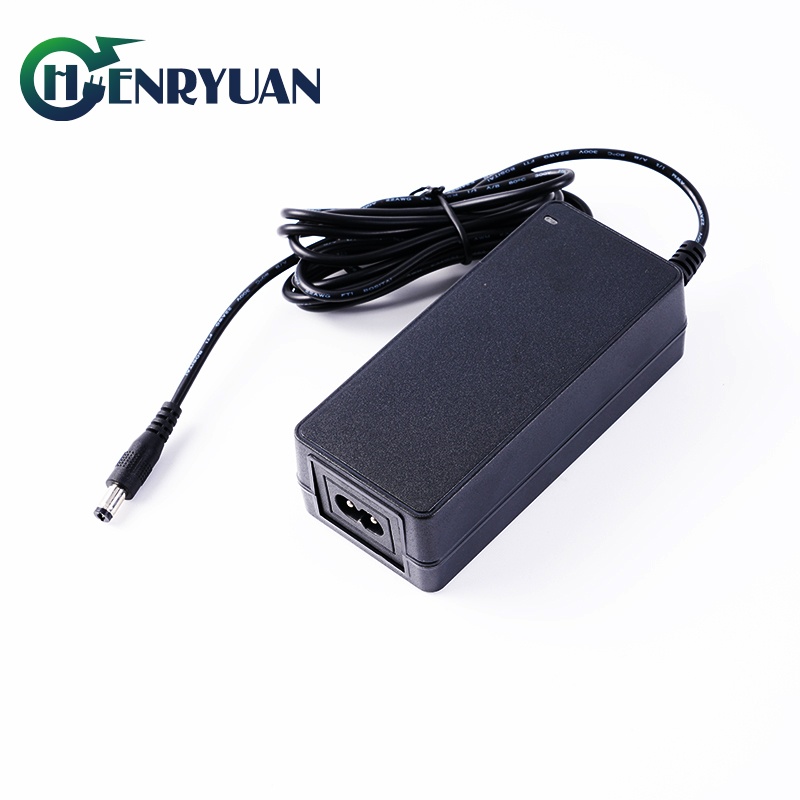

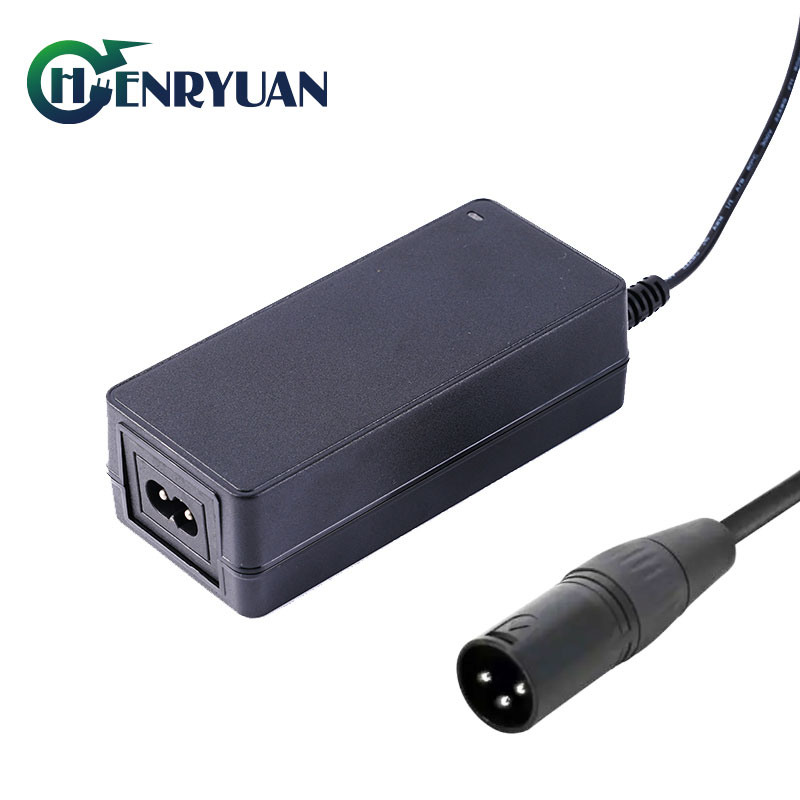

60W 24V Lithium LiFePO4 Lead-acid electric bike scooter charger switching power supply

60W 24V Lithium LiFePO4 Lead-acid electric bike scooter charger switching power supply

24V lithium ion battery charger
Henryuan UL, cUL, FCC, PSE, SAA, CE EMC LVD KC listed 60W 24V Lithium LiFePO4 Lead-acid electric bike scooter charger switching power supply , the high quality 24V battery chargers used for the electric bike scooter. Advanced charging scheme design, having multiple protection mechanisms with h
igh quality components, which make charging safer and faster.


1. SAFETY CERTIFICATES:
UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:1.3A
Inrush Current:60A

3. Output:
60W 24V Lithium LiFePO4 Lead-acid electric bike scooter charger switching power supply with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

2A

17.5V- 29.4V

RED

Constant Voltage

2A->0.2A

29.4V

RED

 Fully charge

Trickle Charging

0.2A->0

29.4V

GREEN

4. CHARGING CURVE:
24V electric bike scooter charger


5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours


Find the best 24V charger for electric scooters, bikes, and skateboards. Our 60W lithium LiFePO4 lead-acid battery charger is a reliable and efficient choice for all your charging needs.Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of 24V battery charger and is a leading supplier in the industry. Its high-quality 24V battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 24V electric bike scooter battery charger is a reliable and efficient solution for your charging needs. There are other models of 24V battery chargers, such as 24V 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A etc . If you are looking for a safe, reliable, and efficient 24V battery charger, just start by contacting Henryuan's sales engineers.
