Products >> LiFePO4 Battery Charger >> 14.6V LiFePO4 Battery Charger

  • Korea KC KCC approved 4S 12.8V LiFePO4 battery LFP charger adapter 14.6V 10A
Korea KC KCC approved 4S 12.8V LiFePO4 battery LFP charger adapter 14.6V 10A

Korea KC KCC approved 4S 12.8V LiFePO4 battery LFP charger adapter 14.6V 10A

 KC listed 14.6V 10A LiFePO4 battery charger
Henryuan Korea KC KCC approved 4S 12.8V LiFePO4 battery LFP charger adapter 14.6V 10A , the high quality KC KCC listed 14.6V 10A Lifepo4 battery chargers used for the 4s 12.8V LiFePO4 battery pack. Advanced charging scheme design, having multiple protection mechanisms with h
igh quality components, which make charging safer and faster.They are used as a power station charger, electric golf trolley charger, portable ultrasonic detector charger, communication base station, robot charger, diving device charger, GPS module charger, messager charger. etc


1. SAFETY CERTIFICATES:
KC, KCC, UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, KC, CCC

2. Input:
Input Voltage: 90Vac-264Vac
Rated Input Voltage: 100Vac-240Vac
Input Frequence:47Hz-63Hz
Input Current:3A
Inrush Current: 60A
3. Output:
Korea KC KCC approved 4S 12.8V LiFePO4 battery LFP charger adapter 14.6V 10A with LED dual color indicator light, displaying charging status, red during charging, fully charged, green LED.

Charging Status

Charging Stage

Output current

Output voltage

LED indicator


Charging

Constant Current

10A

7.5V-14.6V

RED

Constant Voltage

10A->1A

14.6V

RED

 Fully charge

Trickle Charging

1A->0

14.6V

GREEN

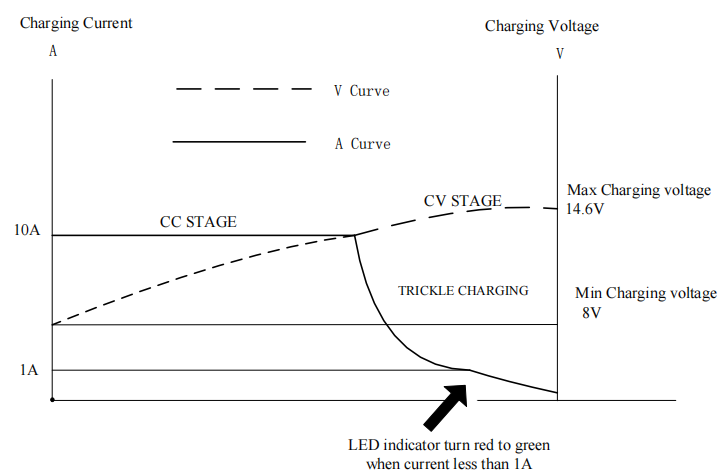

4. CHARGING CURVE:
14.6V 10A LiFePO4 charger


5. PROTECTION FEATURE
 Over current protection, Over voltage protection, Short circuit protection, reverse polarity protection

6. QUALITY ASSURANCE

1. A team of sales engineers with over a decade of experience, able to accurately understand customer needs
2. A rigorous system for selecting raw material suppliers
3. Strict incoming material inspection process
4. Experienced engineers with material solutions design for more than 20 years
5. Skilled production stuff and advanced production testing equipment
6.100% aging testing process, up to 4 hours of full load aging
7.
A comprehensive after-sales system with analysis, feedback, and resolution system within 48 hours

Henryuan Group is a strong company with more than 13 years of experience in the production and R&D of lithium battery chargers and is a leading supplier in the industry. Its high-quality Korea KC KCC listed 14.6V LiFePO4 battery charger is known for its superior performance and safety features, making it a popular choice among consumers worldwide. They are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan and other countries and regions with a high market share. The charging safely and quickly, making them ideal for a variety of applications. Good EMI performance and experienced engineers are able to perfectly meet customer requirements for existing products or  products in the development stage.In short, the high-quality 14.6V 10A LiFePO4 battery charger is a reliable and efficient solution for your charging needs. There are other models of 14.6V LiFePO4 chargers, such as 0.5A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A 9A 10A 15A etc . If you are looking for a safe, reliable, and efficient LiFePO4 battery charger, just start by contacting Henryuan's sales engineers.
