Products >> LiFePO4 Battery Charger >> 14.6V LiFePO4 Battery Charger

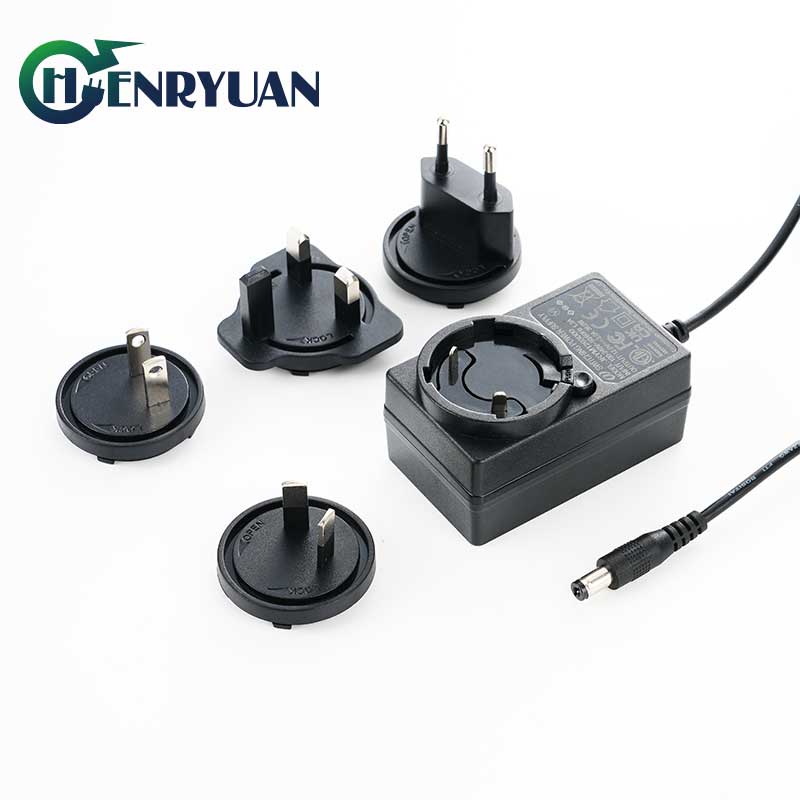

  • Multi Plugs AC DC 14.6V 0.75A LiFePO4 Battery Charger
Multi Plugs AC DC 14.6V 0.75A LiFePO4 Battery Charger

Multi Plugs AC DC 14.6V 0.75A LiFePO4 Battery Charger

14.6V 0.75A LiFePO4 Charger

Product Description:

Universal AC DC 12.8V LiFePO4 Battery 14.6V 0.75A Charger | US/JP, EU, UK, AU Wall Plugs

The reliability and efficiency of Henryuan universal multi plugs 14.6V 0.75A LiFePO4 battery charger, the ideal chargers for the 4S 12.8V LiFePO4 battery packs. UL, cUL, FCC, CE, SAA, UKCA, and PSE approved, this high-quality 14.6V charger is special designed for 4S lithium iron phosphate batteries. It features an advanced charging scheme with multiple protection mechanisms, ensuring faster and safer charging.

Compatibility:   Lithium iron phosphate battery charger (14.6V) charges the 4S 12.8V LiFePO4 battery packs.

14.6V 0.75A LiFePO4 Chargers(Fixed Wall Plugs) For Countries:

  • US Plug LiFePO4 Charger 14.6V 0.75A: HRY1460750US.
  • JP Plug LiFePO4 Charger 14.6V 0.75A: HRY1460750JP.
  • AU Plug LiFePO4 Charger 14.6V 0.75A: HRY1460750AU.
  • UK Plug LiFePO4 Charger 14.6V 0.75A: HRY1460750UK.

Safety Certificates:

  • This 14.6V 0.75A LiFePO4 battery charger is certified by UL, cUL, FCC, CE, UKCA, SAA, PSE, TUV, and RoHS, guaranteeing its safety and reliability.

Input Features:

  • Input Voltage: 90Vac-264Vac
  • Rated Input Voltage: 100Vac-240Vac
  • Input Frequency: 47Hz-63Hz
  • Input Current: 0.6A
  • Inrush Current: 35A

Output Specifications:

  • The charger is designed with an LED dual-color indicator to display the charging status:
  • Red LED: Charging  Green LED: Fully Charged.
  • Constant current: 0.75A at voltage 8V to 14.6V, LED red.
  • Constant voltage: 14.6V, current 0.75A to 0.2A, LED red.
  • Trickle charging: 0.2A to 0, LED green.

Output

Charging Stage

LED Indicator

Current

Voltage

0.75A

8V-14.6V

Constant Current

RED

0.75A->0.2A

14.6V

Constant Voltage

RED

0.2A->0

14.6V

Trickle Current

GREEN
LED turn red to green when charging current below 0.2A


Portable And Durable Design:
  • Dimensions: 64*37.8*40mm.
  • Weight: About 100g, Premium components ensure quality and portability

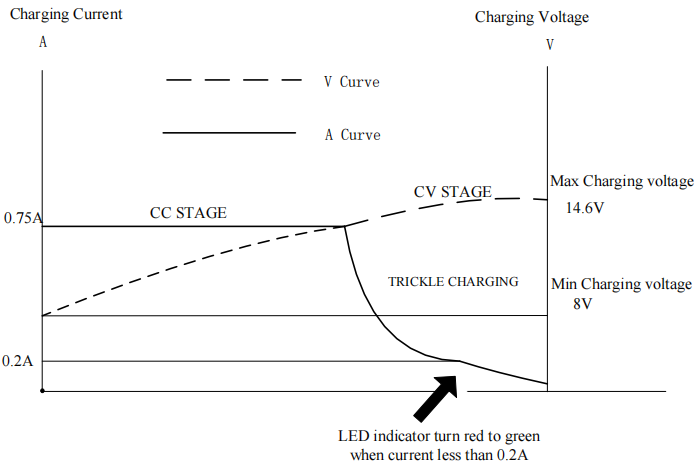

Charging Curve: Charging curve is specially designed 14.6V0.75A for charging 4S 12V LiFePO4 battery packs.


Protection Features:
  • Over-current protection
  • Over-voltage protection
  • Short-circuit protection
  • Reverse polarity protection
Quality Assurance:
  • Experienced sales engineers with over a decade of expertise in understanding customer needs.
  • Rigorous selection process for raw material suppliers.
  • Strict inspection process for incoming materials.
  • Engineers with over 20 years of experience in material solutions design.
  • Skilled production staff and advanced testing equipment.
  • 100% aging testing process with up to 4 hours of full-load testing.
  • Comprehensive after-sales system with a 48-hour resolution time.
Henryuan Group, with over 13 years of experience in the production and R&D of universal plugs 12V 1A LiFePO4 battery chargers, is a leading industry supplier. Renowned for superior performance and safety features, our high-quality 14.6V 1A LiFePO4 battery chargers are a popular choice worldwide with the interchangeable wall plugs US/JP, EU, UK, AU, CN. Our products are exported to the Americas, Europe, the United Kingdom, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and other regions, capturing a significant market share.
With excellent EMI performance and a team of experienced engineers, we meet customer requirements perfectly for both existing products and those in development. Henryuan's 14.6V 1A LiFePo4 battery chargers are reliable and efficient solutions for all your charging needs, available in various models including 12V 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 6A, 7A, 10A, 15A, 20A, 25A
For a safe, reliable, and efficient 12V LiFePo4 battery charger, contact Henryuan's sales engineers today.
