AC 14.6V 6A LiFePO4 Battery Charger | UL PSE CE SAA 14.6V LFP Charger

Product No.：HRY1466000
Online Inquiry

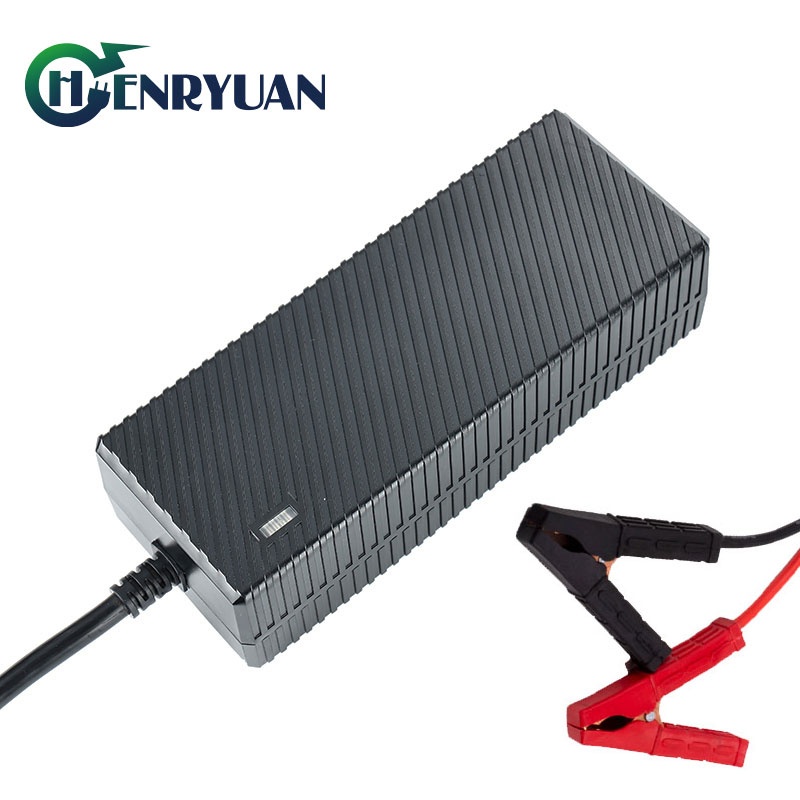

14.6V 6A LiFePO4 Charger

Reliable 14.6V 6A 12V LiFePO4 Battery Charger Adapter | UL cUL PSE SAA CE Approved - Henryuan

Experience the excellence of Henryuan AC 14.6V 6A LiFePO4 Battery Charger , designed specifically for 12.8V (4s) LiFePO4 battery packs. With robust certifications including UL, cUL, PSE, SAA, CE, and UKCA, this high quality LiFePO4 charger is ideal for various applications such as power stations, electric golf trolleys, portable ultrasonic detectors, communication base stations, robotics, diving devices, GPS modules, and more. Our advanced charging scheme ensures faster and safer charging with superior protection mechanisms and premium components.

Key Features and Benefits:

1. Comprehensive Safety Certifications:

Our 14.6V 6A LiFePO4 battery chargers meet global safety standards including KC, KCC, UL, ETL, cUL, FCC, PSE, CE EMC, LVD, UKCA, SAA, and CCC certifications. This ensures reliable and safe operation across various regions and applications.

2. Wide Input Range:

Input Voltage: 90Vac - 264Vac
Rated Input Voltage: 100Vac - 240Vac
Frequency: 47Hz - 63Hz
Input Current: 3A
Inrush Current: 60A

3. Reliable Output Specifications:

The charger provides a consistent 14.6V output at up to 6A, with a total power capacity of 87.6W. It includes a dual-color LED indicator for easy monitoring of charging status: red during charging and green when fully charged.

4. Charging Stages and LED Indicators:

Constant Current: 7A fast charging, at voltage 8V - 14.6V, (Red LED)
Constant Voltage: 14.6V, current 7A to 0.7A (Red LED)
Trickle Charging: 0.7A to 0A , 14.6V max (Green LED)

Output		Charging Stage	LED Indicator
Output
Current	Voltage
6A	8V-14.6V	Constant Current	RED
6A->0.6A	14.6V	Constant Voltage	RED
0.6A->0	14.6V	Trickle Current	GREEN LED turn red to green when charging current below 0.6A

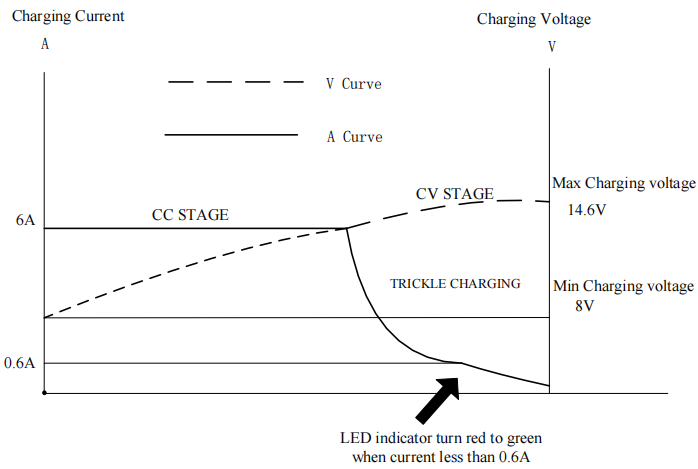

5. Charging Curve:

Special 14.6V 6A output for charging 12.8V LiFePO4 battery packs.

6. Advanced Protection Features:

Over-Current Protection
Over-Voltage Protection
Short Circuit Protection
Reverse Polarity Protection

These features ensure safe and reliable charging, protecting both the charger and the battery.

7. High-Quality Assurance:

Experienced Sales Team: With over a decade of expertise in customer needs.
Rigorous Material Selection: Only high-quality raw materials are used.
Strict Inspection Process: Comprehensive checks for incoming materials.
Experienced Engineering: Over 20 years of design experience in material solutions.
Skilled Production Staff: Utilizing advanced testing equipment and techniques.
100% Aging Testing: Each charger undergoes up to 4 hours of full-load aging tests to ensure reliability.
Responsive After-Sales Support: Efficient feedback and resolution system, typically within 48 hours.

About Henryuan Group:

With more than 13 years in the production and R&D of lithium battery chargers, Henryuan Group stands as a leading industry supplier. Our 14.6V 7A LiFePO4 chargers are renowned for their exceptional performance and safety, making them a preferred choice in the Americas, Europe, Asia, and beyond. Our chargers are celebrated for their excellent EMI performance and low ripple characteristics, ensuring optimal functionality for a wide range of applications. Whether you need a reliable solution for existing products or are developing new ones, our team of experienced engineers is here to meet your needs.

Diverse Product Range:

Henryuan offers a variety of 14.6V LiFePO4 battery chargers with output currents from 0.5A to 25A, catering to different power requirements. For those seeking a reliable, safe, and efficient 14.6V 6A LiFePO4 battery charger, our product is an excellent choice.

Contact Us:

For a dependable and efficient 14.6V 6A LiFePO4 battery charger or to explore more models, contact Henryuan sales engineers today. Let us provide you with the perfect solution for your power needs.
