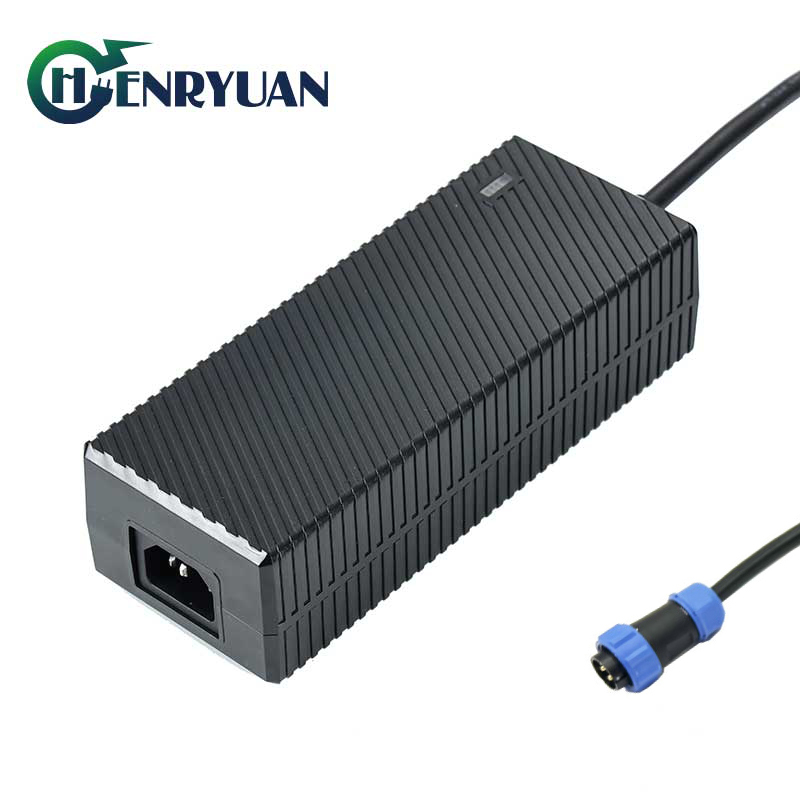

Li-Ion 13S 7.5A Charger | CE, UL, FCC, PSE, UKCA Listed 54.6V 7.5A Lithium Battery Charger

Product Description

Henryuan relibale portable 13S li-ion battery 48V 7.5A charger is a top charging solution designed for 48V lithium-ion batteries. This output 54.6V 7.5A charger is engineered with advanced safety mechanisms over current protection, over voltage protection, short circuit protection and reverse voltage protection. The advanced design and high quality components that make charging reliable and efficient for various 48V lithuim ion battery powered equipments.

Key Features and Applications

1. Comprehensive Safety Certifications:

• Our 48V 7.5A li-ion battery chargers meet global safety standards with certifications from CE, PSE, UL, ETL, cUL, FCC, UKCA, SAA, TUV, and RoHS.

2. Input Specifications:

• Input Voltage: 90Vac-264Vac
• Rated Input Voltage: 100Vac-240Vac
• Frequency: 50/60Hz
• Input Current: 5A
• Inrush Current: 60A

3. Output Features:

• Li-Ion 13S Charger Models Available:
  • 2A Charger: HRY5462000
  • 3A Charger: HRY5463000
  • 3.5A Charger: HRY5463500
  • 4A Charger: HRY5464000
  • 4.5A Charger: HRY5464500
  • 5A Charger: HRY5465000
  • 6A Charger: HRY5466000
  • 7A Charger: HRY5467000
  • 7.5A Charger: HRY5467500
• LED Indicator: Dual-color LED light indicates charging status: red during charging and green when fully charged.

4. Example of Charging Stages for Li-ion 13S 7.5A Charger Model:

• Constant Current: 7.5A, 32.5V-54.6V (Red LED)
• Constant Voltage: 7.5A -> 0.5A, 54.6V (Red LED)
• Trickle Charging: 0.7A -> 0, 54.6V (Green LED)

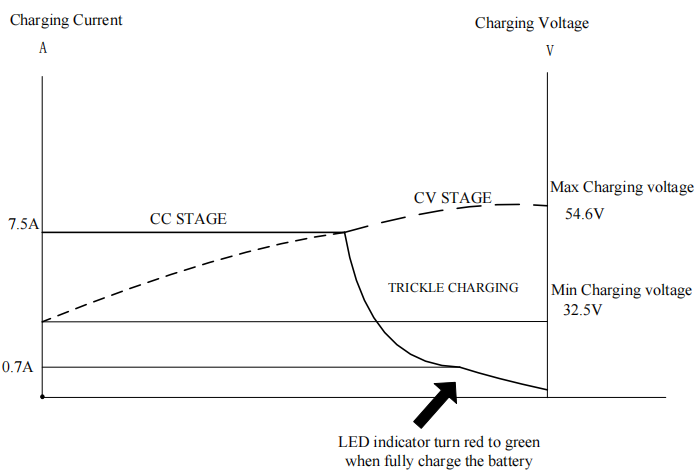

5. Charging Curve, Special Designed 13S 7.5A Charger For 48V Lithium Ion Batteries.

6. Applications:

• Perfect for charging outboard motors, electric scooters, e-bikes, and golf carts. These chargers are versatile and ideal for various high capacity 48V li-ion battery needs.

7. Advanced Protection Features:

• Includes overcurrent protection, overvoltage protection, short circuit protection, and reverse polarity protection to ensure safe and reliable charging.

8. Variety Of Connectors Supported:

9. Quality Assurance:

• A skilled team of sales engineers with over a decade of experience
• Rigorous raw material selection and inspection process
• Experienced engineers with over 20 years in material solutions design
• Advanced production testing equipment and processes
• 100% full-load aging testing for up to 4 hours
• Comprehensive after-sales support system with a resolution timeframe of within 48 hours

Advanced Production And Test Instruments

About Henryuan Group

With over ten years of experience in the production and R&D of lithium battery chargers, Henryuan Group is a leading supplier in the charger industry. Our high quality lithium 48V 7.5A lithium battery chargers are renowned for their superior performance and safety features, making them a preferred choice among consumers worldwide. We export to the Americas, Europe, the UK, Australia, New Zealand, Italy, France, Germany, Japan, South Korea, Hong Kong, Taiwan, and more.

More 13S 54.6V Lithium Battery Chargers Links:

• Explore More 13S 54.6V Lithium Battery Chargers.

Contact Us

For a reliable and efficient 48V 7.5A lithium battery charger, contact Henryuan's sales engineers today. We offer a range of models, including 54.6V 1A, 1.5A, 2A, 3A, 4A, 5A, 6A, 7A and 7.5A chargers to meet your specific needs.
